SATO CL4NX Plus Driver Manual

95

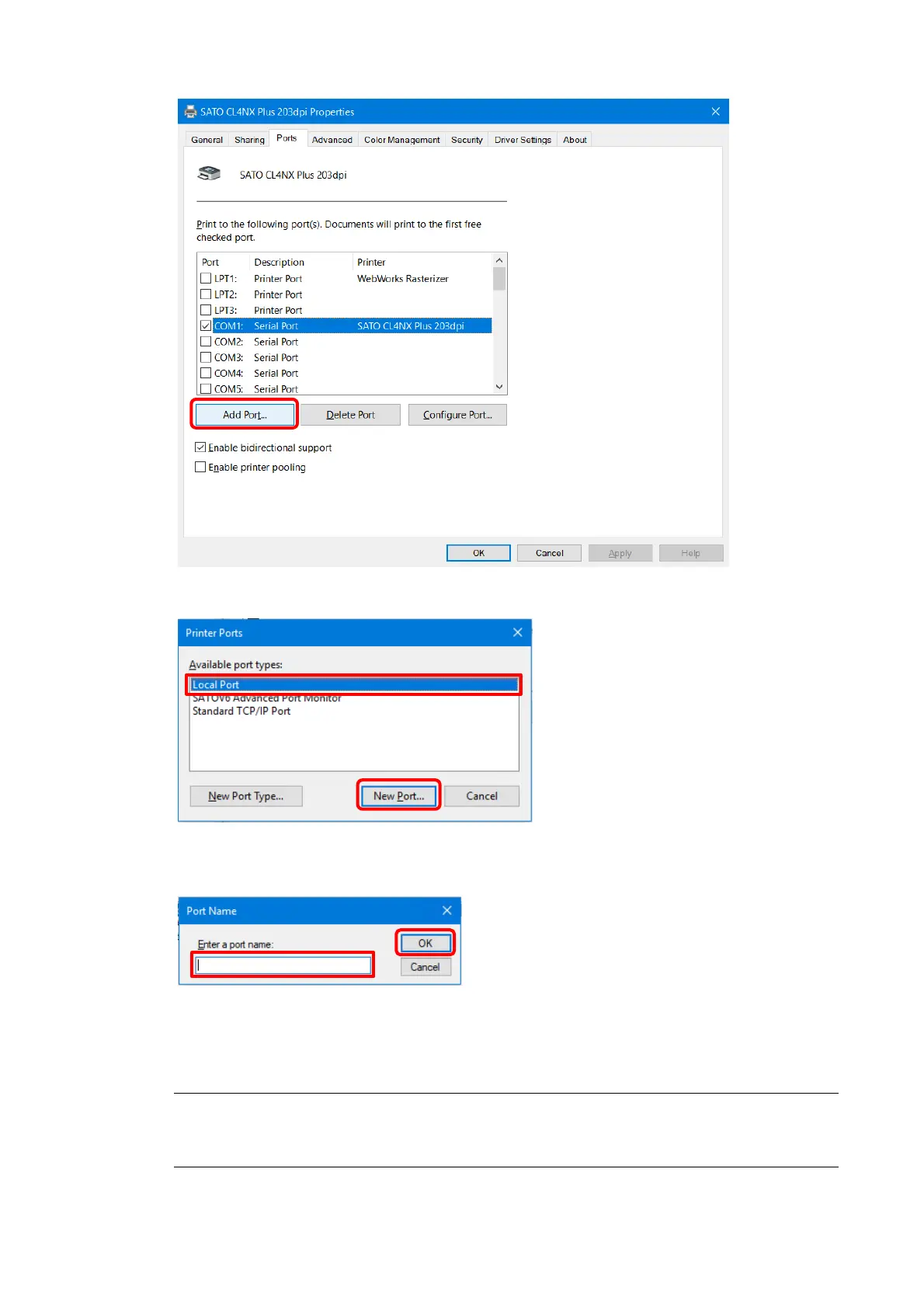

Click [Add Port]. 4.
Select [Local Port] and then click [New Port]. 5.
Into the port name field, enter "\\<Print_Server_Computer_Name>\<Printer_Sharing_Name>" 6.
and then click [OK].
For example, if the print server computer name is "PC-0" and the printer sharing name is "SATO
CL4NX Plus 203dpi", enter the following:
\\PC-0\SATO CL4NX Plus 203dpi
Note:
On Windows 10, you can check the computer name by clicking [Control Panel] > [All Control Panel Items] or
[System and Security] > [System] > [Computer name].

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
