SATO CL4NX Plus Driver Manual

99

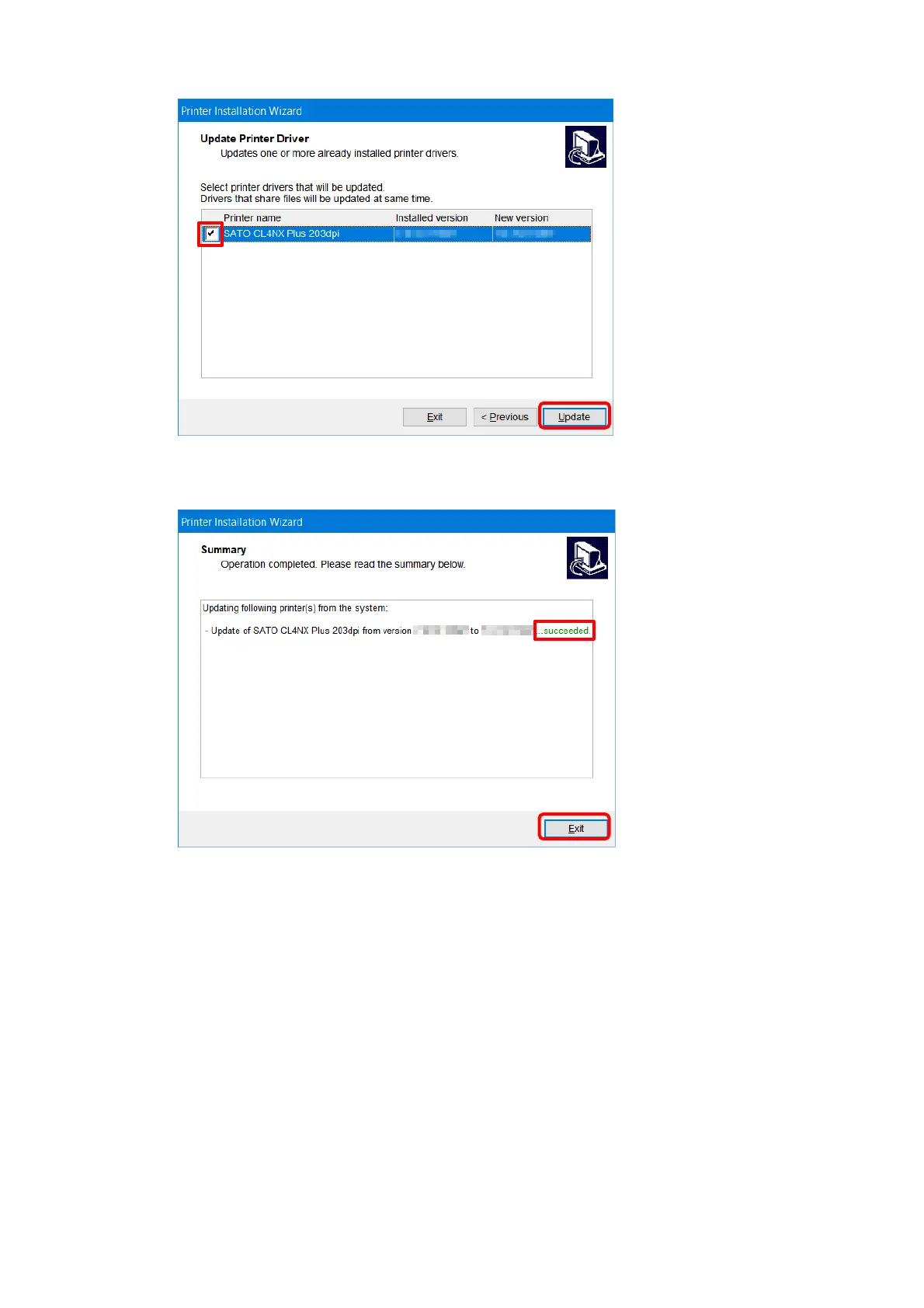

Select the check box of the printer driver that you want to update and click [Update]. 4.
The printer drivers will start updating.
Confirm that [succeeded] is shown for the installed printer driver and click [Exit]. 5.
Importing an Exported File
Open [Devices and Printers], right-click the updated printer driver for which you have exported 1.
the printer driver data, and select [Printer properties].
Select the [Driver Settings] tab. 2.
On [Maintenance], import the driver settings that you saved before updating the driver. 3.
For details on how to import settings, refer to "3.6 Maintenance."

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
