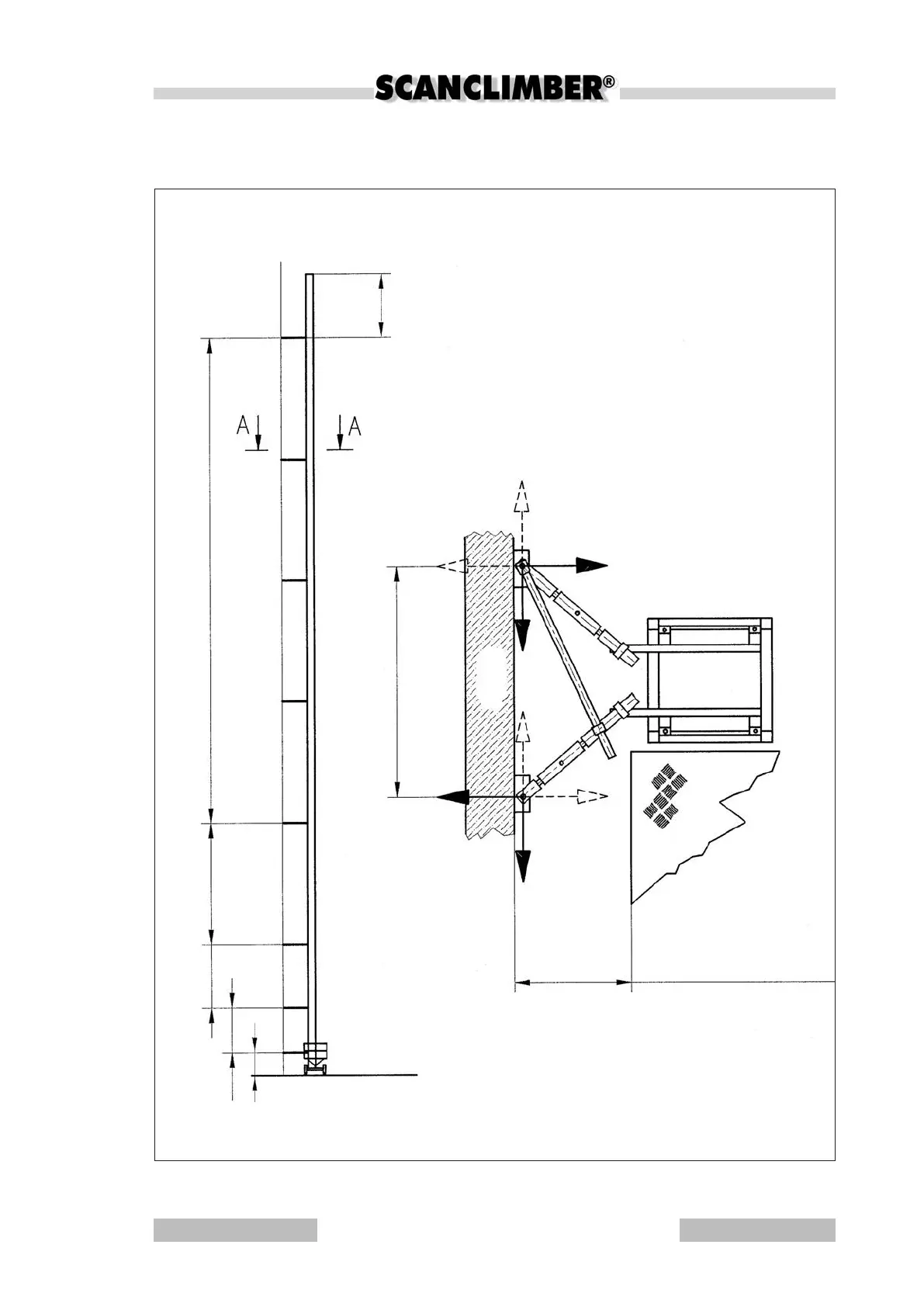

Drawing 4.4. Wall anchorge instructions for minichassis.
SCANCLIMBER SC1300/SC4000
ANCHORAGE INSTRUCTIONS FOR THE MAST ON THE MINICHASSIS
NOTE!
- THE 1ST ANCHOR HEIGHT 0,8 m - 3,2 m
- THE 2ND ANCHOR HEIGHT 2,5 m
ABOVE THE 1ST ANCHOR
- THE 3 RD ANCHOR HEIGHT 10,0 m
ABOVE THE 2ND ANCHOR
- THE MAX. ALLOWED PLATFORM LENGTH
WHEN ERECTING AND DISMANTLING THE MAST
- BENEATH THE 3RD ANCHOR 4,20 m
- ABOVE THE 3RD ANCHOR 10,50 m (SC1300)
12,50 m (SC4000)
12,5 m MAX.12,5 m X n
MAX. 10 m
2,5 M
0,8-3,2 m
n
WALL
MIN. 150 MM
F1
F2
WALL
PLATFORM
MIN. 400 mm
F2
F1
SECTION A-A
FREE MAST OVER- HANG WHEN LOADED
6,25 m
MAX.ALLOWED WIND SPEED15,5 m/s
NOTE! CHECK THE STRENGTH OF THE WALL
ANCHORAGE.
VS440238
MAX 100 m
