22 5 Operation
Now the formwork is pushed against the inner stop bolt.
The frame formwork is now picked up and fully automatically transported into the sys-
tem and cleaned there.
Remove the cleaned frame formwork from the outlet roller table after cleaning.
If the frame formwork is to be cleaned again or if settings are required, push the icon
"Reverse" (see Figure 5.1 Operating panel "001 Start", page 20) to supply the frame
formwork to the plant again. Transport of the frame formwork from the outlet roller table
to the inlet roller table thus is not required.
After completing cleaning, switch off the machine control by the right control cabinet.
Switch off the machine by turning the main switch to the position 0-OFF.

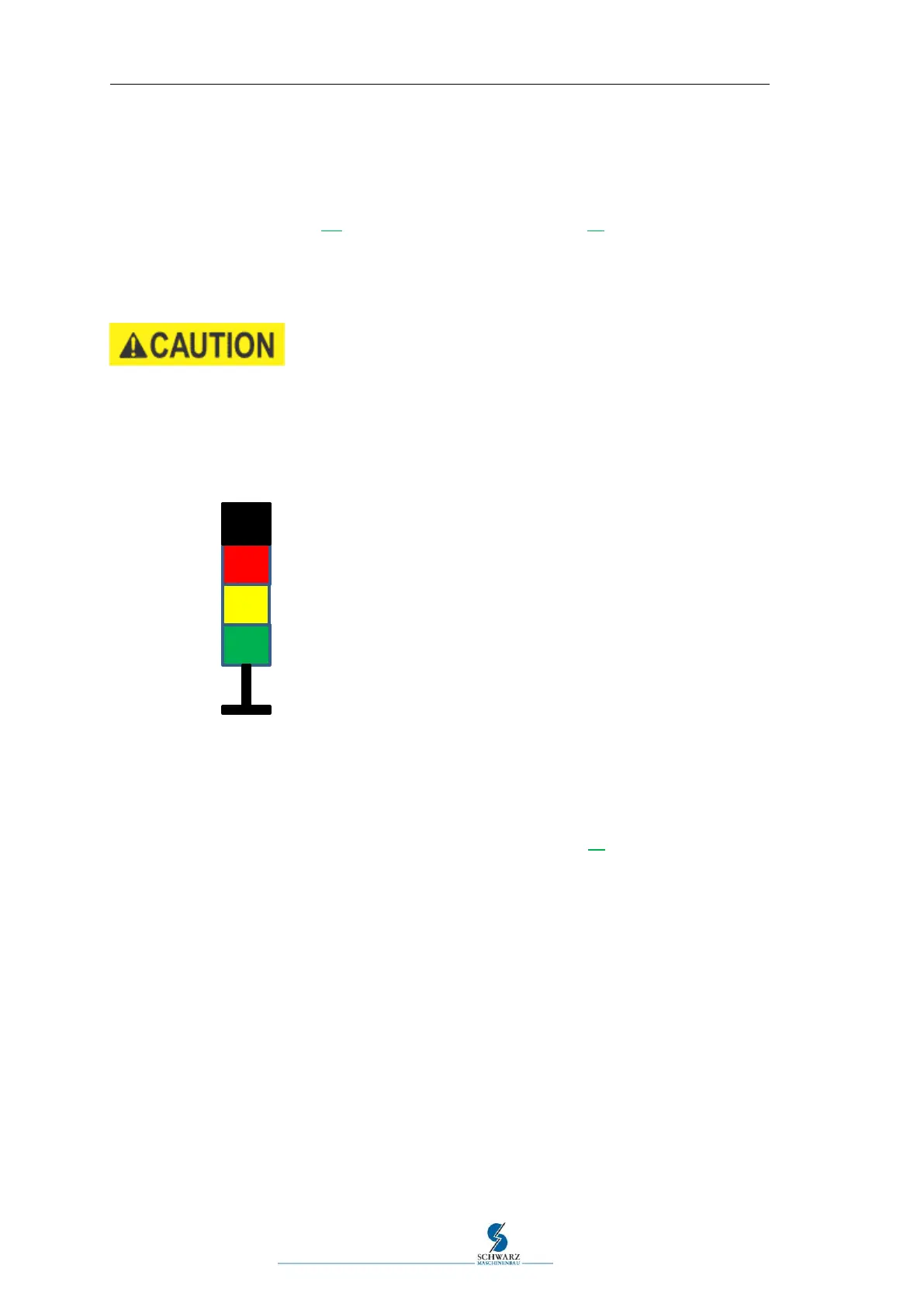

Figure 5.2 Description of the signal lamp
See commissioning for EMERGENCY OFF or power outage on page 19.
<- acoustic signal when starting automatic START
<- red machine occupied, red flashing fault
<- setting processes of the machine
<- insert element
There must not be any frame formwork inside or in front of
the machine for reversing! It could be pushed out beyond
the inlet roller table!
