Schwarz SB10B - 8.6 Mechanical spare and wear parts side cleaning

8.6 Mechanical spare and wear parts side cleaning 71
8.6 Mechanical spare and wear parts side cleaning
When placing the order, please indicate item number and machine number.
Schwarz GmbH
Engineering
Freiburgerstr. 3b
79822 Titisee-Neustadt
Phone : 0049 7651/5770
Fax: 0049 7651/3770
Email: mail@schalungsreiniger.de
Homepage: www.schalungsreiniger.de

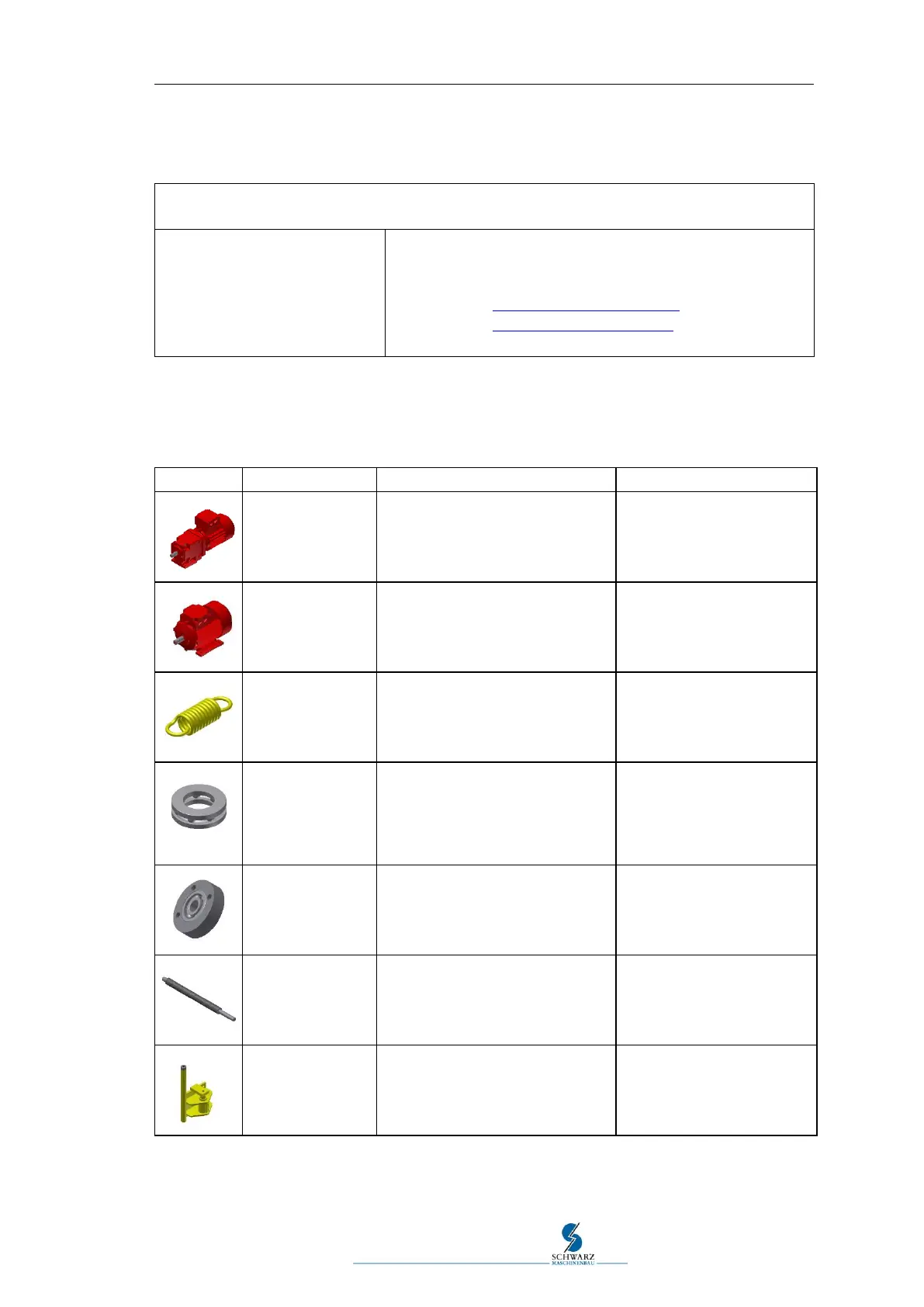

Table 8.5 Spare and wear parts side cleaning
Preview
Component num-
ber
Description
Features
Item no.001 013
Gear motor
Output = 0.25kW
Turns = 63/min
Side cleaning
Supply
Item no.002 002
Motor
Output = 3kW
Turns = 1400/min
Rotation
Side cleaning
Item no.008 004
Tension spring
Ø45x85
Wire diameter = Ø7
Side cleaning
Item no.011 201
Deep groove ball thrust
bearingAxial-Rillenkugellager
Outer diameter = Ø30
Inner diameter = Ø17
Side cleaning
Supply
Item no.012 059
Bearing holder including deep-
groove ball bearing
Ø78x20
Side cleaning
Supply
Item no.012 066
Threaded spindle
M27x390 (total length)
Side cleaning
Supply
Item no.014 153-R
Holder brush motor right
Side cleaning
