8.8 Mechanical spare and wear parts width adjustment
When placing the order, please indicate item number and machine number.
Schwarz GmbH
Engineering
Freiburgerstr. 3b
79822 Titisee-Neustadt
Phone : 0049 7651/5770
Fax: 0049 7651/3770
Email: mail@schalungsreiniger.de
Homepage: www.schalungsreiniger.de

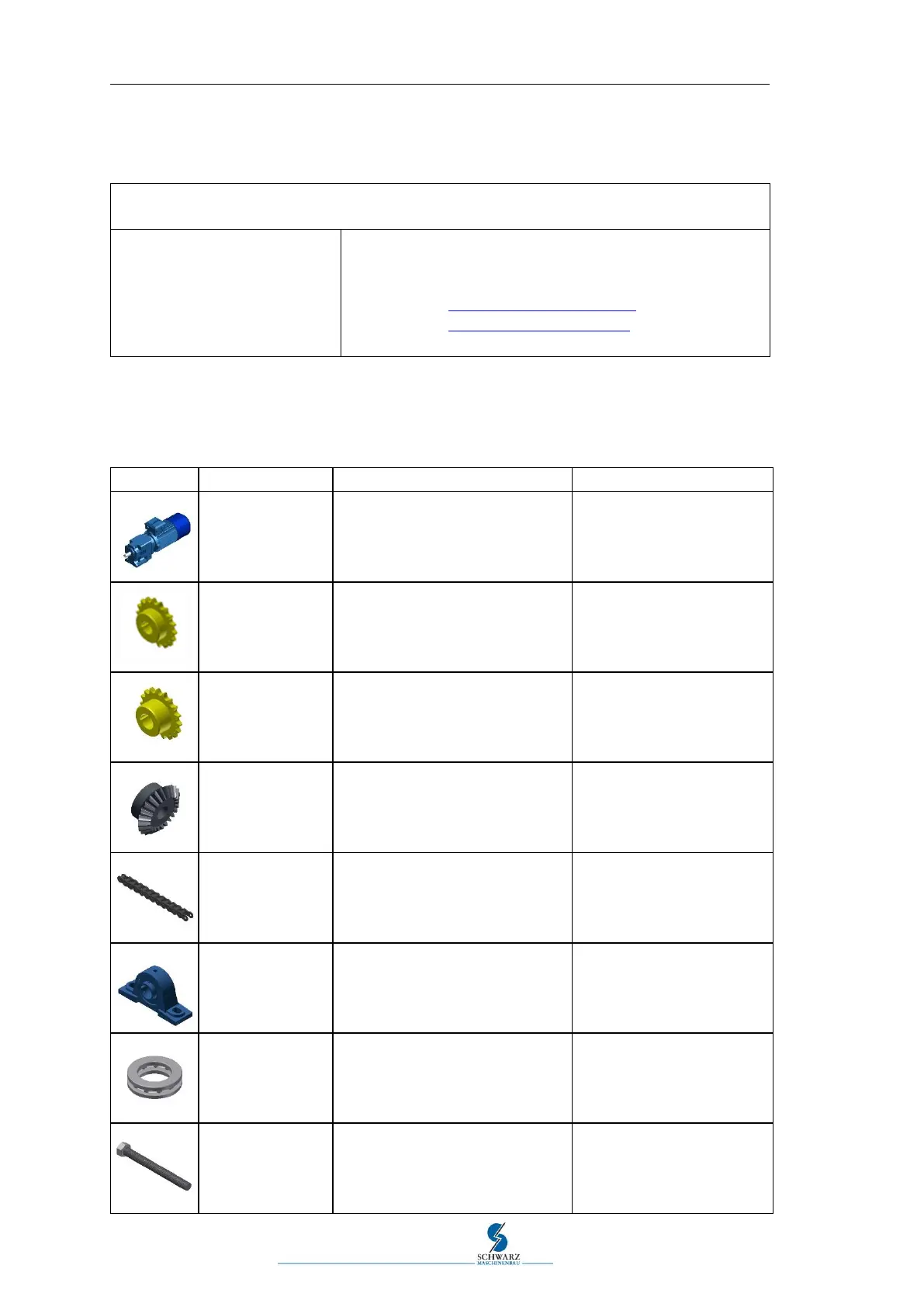

Table 8.7 Spare and wear parts width adjustment
Preview
Component num-
ber
Description
Features
Item no.001 034
Helical worm-geared motor
Output = 1.5kW
Turns = 282/min
Width adjustment
with rotary encoder
Item no.005 038
Sprocket
Inner diameter = Ø25
Number of teeth = Z18
Width = 50
Width adjustment
Sprocket drive
Item no.005 053
Sprocket f. drive shaft side adjust-
ment
Inner diameter = Ø30
Number of teeth = Z18
Width adjustment
Item no.005 402
Steel bevel wheel
20 teeth
Width adjustment
Height adjustment
Longitudinal shafts & trans-
verse shafts
Item no.007 062
Roller chain f. drive shaft
Width adjustment
5/8" x 3/8"
Length = 600
Width adjustment
Item no.011 052
Pedestal bearing UCP 206 Ø 30
Inner diameter = Ø30
Width adjustment
Item no.011 202
Deep groove ball thrust
bearingAxial-Rillenkugellager
Outer diameter = Ø42
Inner diameter = Ø25
Width adjustment, among
others
Item no.012 028
Threaded rod M20
M20x220
Width adjustment
