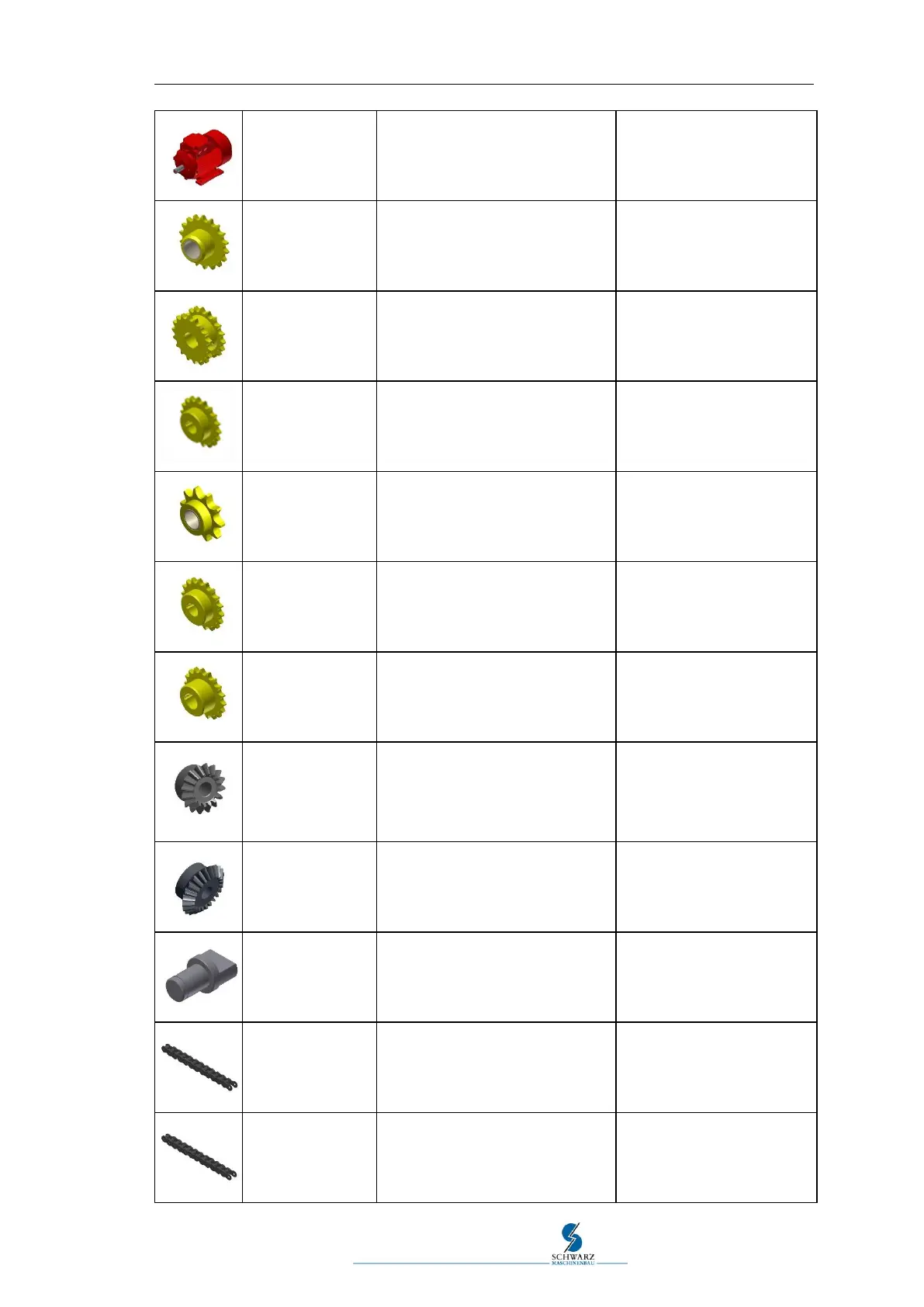

8.2 Total list mechanical spare and wear parts 55
Item no.002 002
Motor
Output = 3kW
Turns = 1400/min
Rotation
Side cleaning
Item no.005 014
Sprocket
Inner diameter = Ø32
Number of teeth = Z18
Transverse drive
Chain deflection
Item no.005 030
Double sprocket
Inner diameter = Ø30
Number of teeth = Z18
Transport
Drive beam
Item no.005 038
Sprocket
Inner diameter = Ø25
Number of teeth = Z18
Width = 50
Width adjustment
Sprocket drive
Item no.005 050
Sprocket
Inner diameter = Ø20
Number of teeth = Z10
Transport
Chain tensioner
Drive beam
Item no.005 051
Sprocket
Inner diameter = Ø25
Number of teeth = Z18
Transverse drive
Gear motor
Item no.005 053
Sprocket f. drive shaft side adjust-
ment
Inner diameter = Ø30
Number of teeth = Z18
Width adjustment
Item no.005 401
Conical wheel 16 teeth module
2.5
Module=2.5 / 16 teeth
S235JR
Cover cleaning
Manual height adjustment
Item no.005 402
Steel bevel wheel
20 teeth
Width adjustment
Height adjustment
Longitudinal shafts & trans-
verse shafts
Item no.006 014
Guide bolt
Ø30x53
Axis diameter = Ø20
Transport
Drive box
Item no.007 057
Roller chain
5/8" x 3/8"x6381
Transverse drive
Item no.007 061
Roller chain, single
for drive box
5/8" x 3/8"
Length = 1115
Transport
Drive box
