Schwarz SB10B - 8.2 Total list mechanical spare and wear parts

54 8 Spare parts and circuit diagrams
8.2 Total list mechanical spare and wear parts
When placing the order, please indicate item number and machine number.
Schwarz GmbH
Engineering
Freiburgerstr. 3b
79822 Titisee-Neustadt
Phone : 0049 7651/5770
Fax: 0049 7651/3770
Email: mail@schalungsreiniger.de
Homepage: www.schalungsreiniger.de

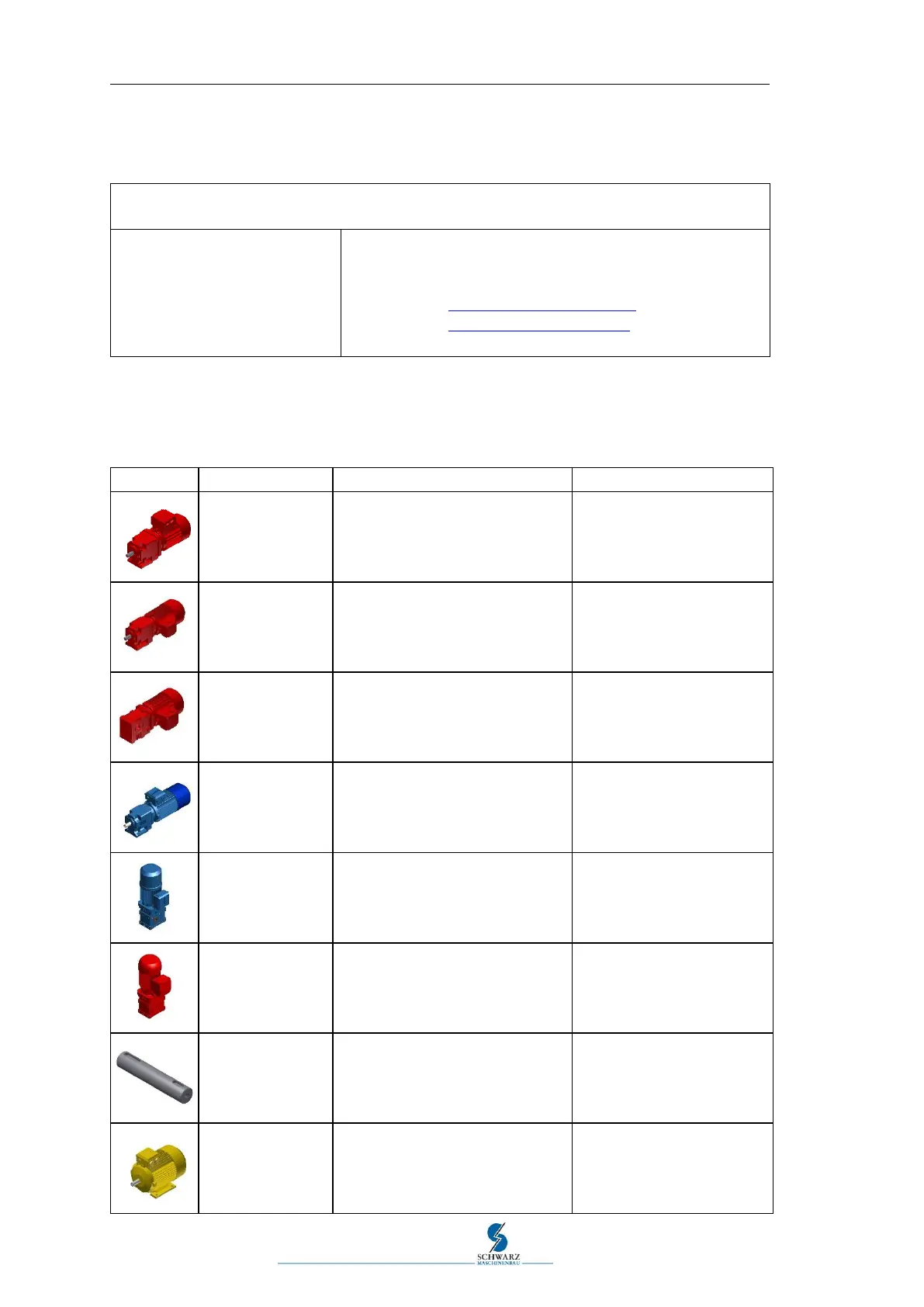

Table 8.1 Total list mechanical spare and wear parts
Preview
Component num-
ber
Description
Features
Item no.001 013
Gear motor
Output = 0.25kW
Turns = 63/min
Side cleaning
Supply
Item no.001 014
Gear motor
Output = 1.5kW
Turns = 172/min
Cover cleaning
Rotation brushes
Item no.001 016
Helical worm-geared motor
Output = 0.55kW
Turns = 51/min
Cover cleaning
Automated height adjust-
ment brushes total
Item no.001 034
Helical worm-geared motor
Output = 1.5kW
Turns = 282/min
Width adjustment
with rotary encoder
Item no.001 035
Helical worm-geared motor
Output = 0.25kW
Turns = 10/min
Transport
Item no.001 037
Helical worm-geared motor
Output = 0.37kW
Turns = 20/min
Transverse drive
Item no.001 100
Motor axis
Ø25x130
Transverse drive
Item no.002 001
Motor
Output = 4kW
Turns = 1400/min
Rotation
Transverse cleaning
