Schwarz SB10B - 8.7 Mechanical spare and wear parts cover cleaning

74 8 Spare parts and circuit diagrams
8.7 Mechanical spare and wear parts cover cleaning
When placing the order, please indicate item number and machine number.
Schwarz GmbH
Engineering
Freiburgerstr. 3b
79822 Titisee-Neustadt
Phone : 0049 7651/5770
Fax: 0049 7651/3770
Email: mail@schalungsreiniger.de
Homepage: www.schalungsreiniger.de

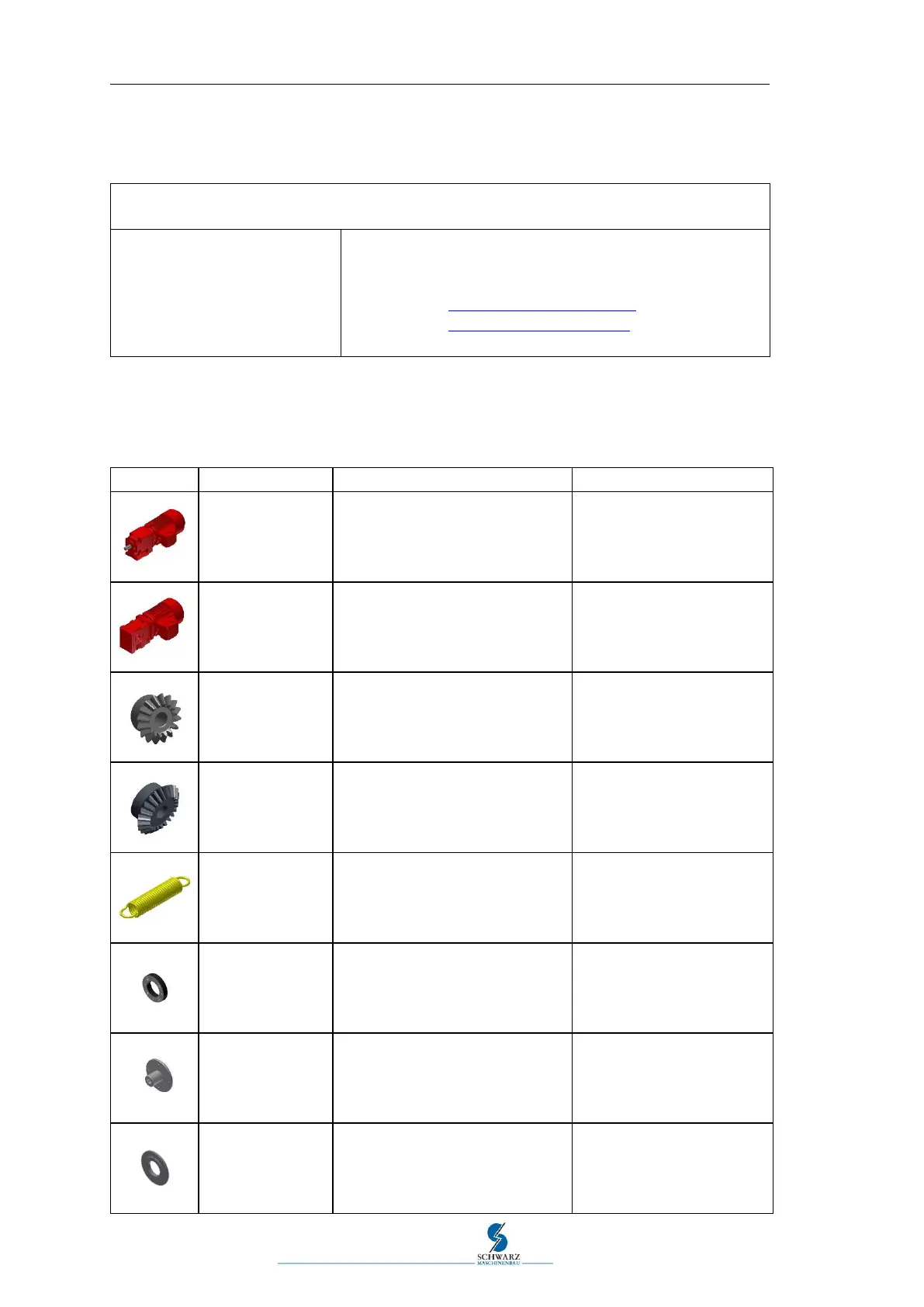

Table 8.6 Spare and wear parts cover cleaning
Preview
Component num-
ber
Description
Features
Item no.001 014
Gear motor
Output = 1.5kW
Turns = 172/min
Cover cleaning
Rotation brushes
Item no.001 016
Helical worm-geared motor
Output = 0.55kW
Turns = 51/min
Cover cleaning
Automated height adjust-
ment brushes total
Item no.005 401
Conical wheel 16 teeth module
2.5
Module=2.5 / 16 teeth
S235JR
Cover cleaning
Manual height adjustment
Item no.005 402
Bevel wheel
Number of teeth = Z20
Width adjustment
Height adjustment
Longitudinal shafts & trans-
verse shafts
Item no.008 007
Tension spring
Ø25x150
Wire diameter = Ø3.3
Cover cleaning
Scraper bar
Item no.010 100
Dampening ring
Ø160x30
Bore94
Cover cleaning
Item no.010 103
Brush shaft for disc brush
Cover cleaning
Item no.010 104
Brush receptacle ring
Ø190x19
Cover cleaning
