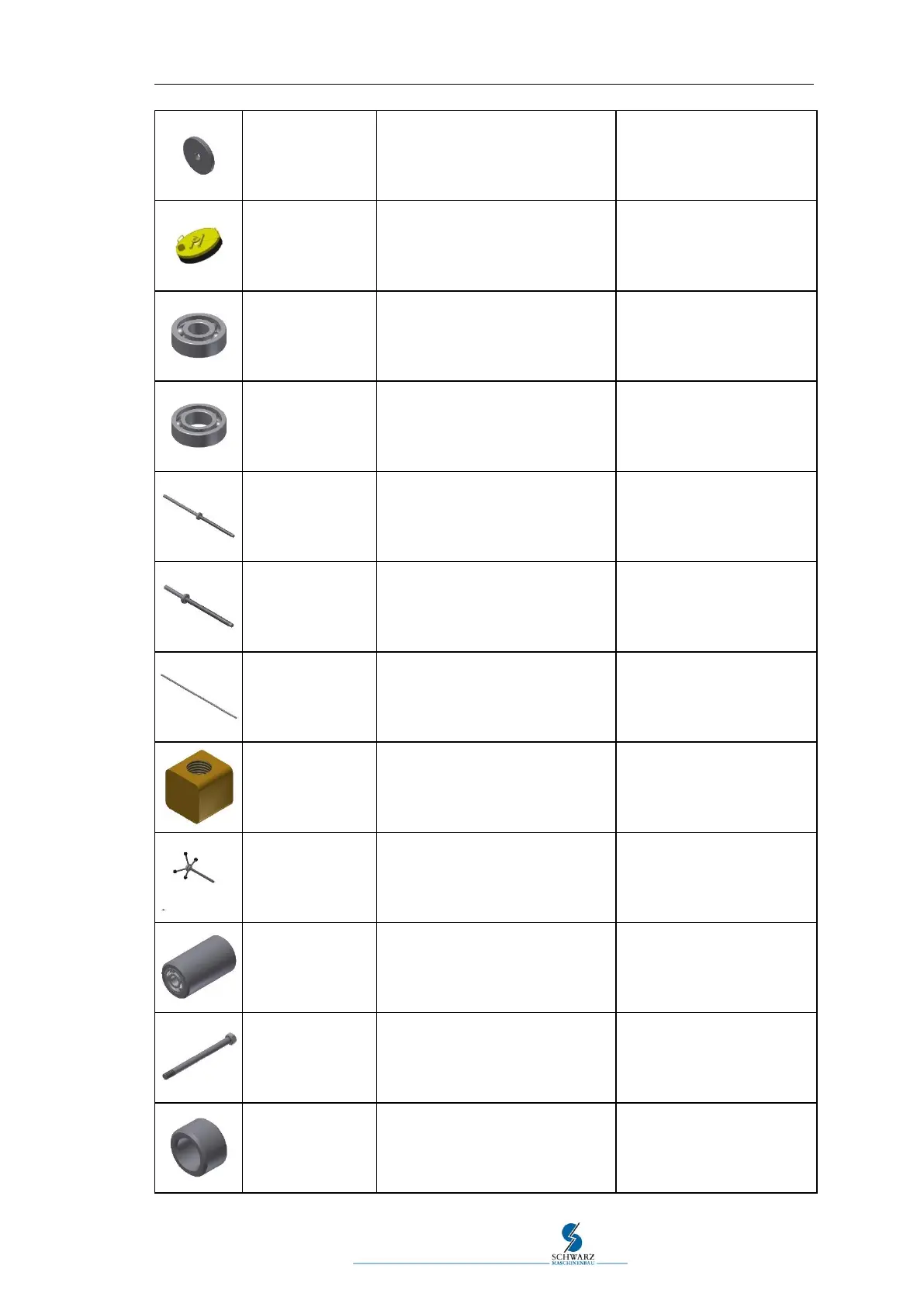

8.7 Mechanical spare and wear parts cover cleaning 75
Item no.010 105
Lid
Ø50x6
Inner diameter = Ø10.5
Transverse cleaning
Item no.010 106
Protective sheet for disc brushes
Cover cleaning
Item no.011 101
Deep-groove ball bearing
Outer diameter = Ø32
Inner diameter = Ø12
Cover cleaning
Manual adjustment
Item no.011 109
Deep-groove ball bearing
Outer diameter = Ø52
Inner diameter = Ø25
Width adjustment
Item no.012 043
Spindle for cover cleaning
M27x780
Cover cleaning
Height adjustment left
Motor side
Item no.012 044
Spindle for cover cleaning
M27x550
Cover cleaning
Height adjustment right
Item no.012 045
Drive shaft for cover cleaning
Ø25x3120
Cover cleaning
Height adjustment
Item no.012 053
Nut M27
VK-45x45x46
Brass
Cover cleaning
Height adjustment
Item no.012 071
Spindle for height adjustment
cover cleaning
M20x300
Cover cleaning
Scraper bar
Item no.014 073
Roller including deep-groove ball
bearing
Ø45x78
Width adjustment
Support front, center, rear
Item no.014 080
Roller carriage screw
M12x160
???
Item no.014 085
Spacer ring
Outer diameter = Ø20
Inner diameter = Ø12.5
Length = 12.5
Width adjustment
Rear support
