Schwarz SB10B - Page 76

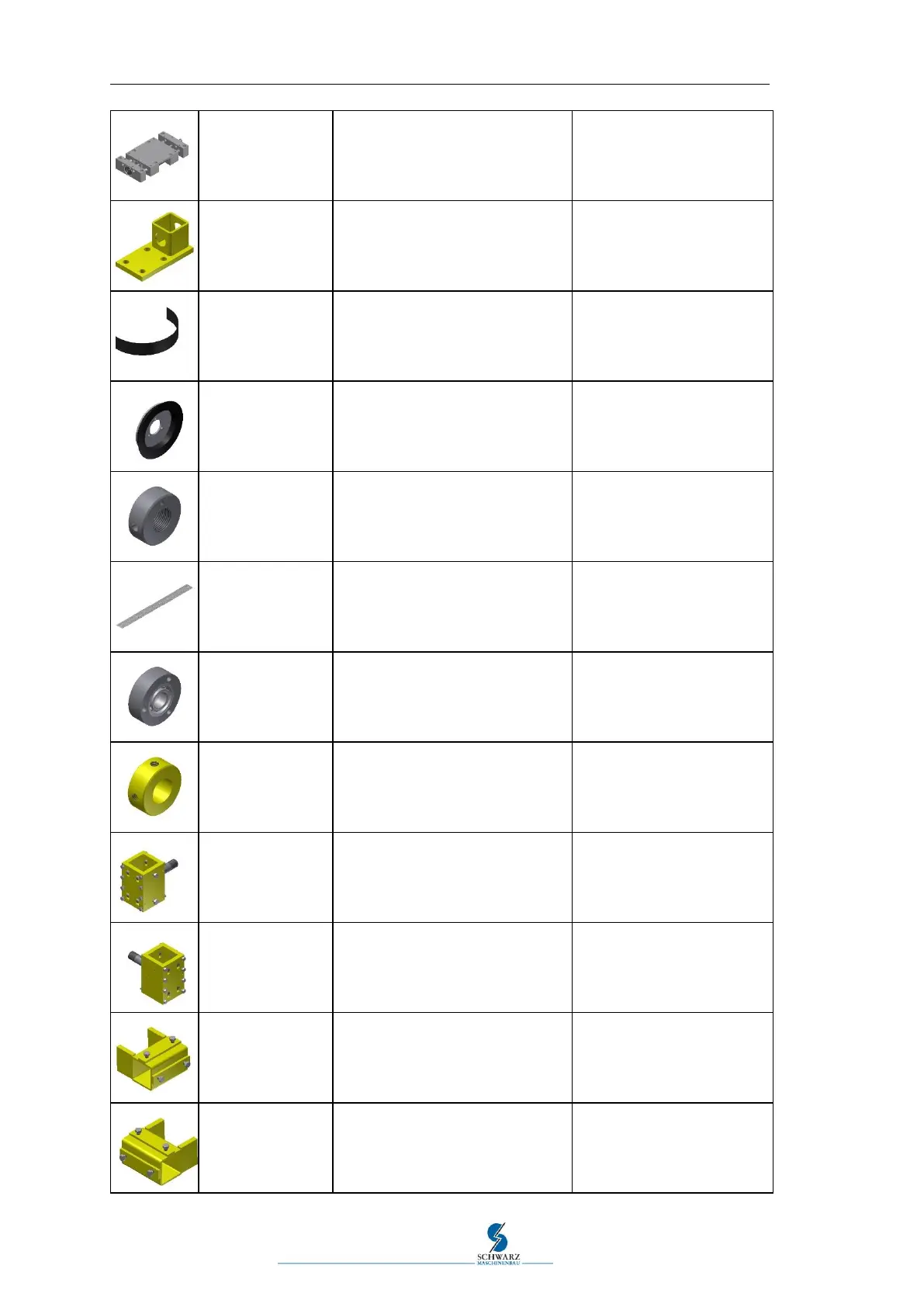

76 8 Spare parts and circuit diagrams
Item no.014 090
Spindle linear table
50/20
Cover cleaning
Wear tracking
Manual height adjustment
Item no.014 199
Nut box M27
Cover cleaning
Cover cleaning
Item no.014 209
Rubber for protective sheet
Set = 2 pieces
Matching 010 106
Cover cleaning
Item no.016 020
Disc brush drag nylon
Ø510
Cover cleaning
Item no.017 011
nut
Ø78x30
Cover cleaning
Height adjustment
Item no.018 002
Cover scraper
Length = 1350
Set = 2 pieces
Cover cleaning
Scraper bar
Item no.022 003
Bearing sleeve Ø80x25
Including deep-groove ball bear-
ing Inner diameter:
Deep-groove ball bearing = Ø25
Width adjustment
Left
Item no.022 004
Adjustment ring
Ø50x20
Including threaded pins
Width adjustment
Height adjustment
for bevel wheel
Item no.026 006
Carriage height adjustment right
Cover cleaning
Item no.026 007
Carriage height adjustment left
Cover cleaning
Item no.026 008
Carriage f. disc brushes
Suspension front
Cover cleaning
Item no.026 009
Carriage f. disc brushes
Suspension rear
Cover cleaning
