56 8 Spare parts and circuit diagrams

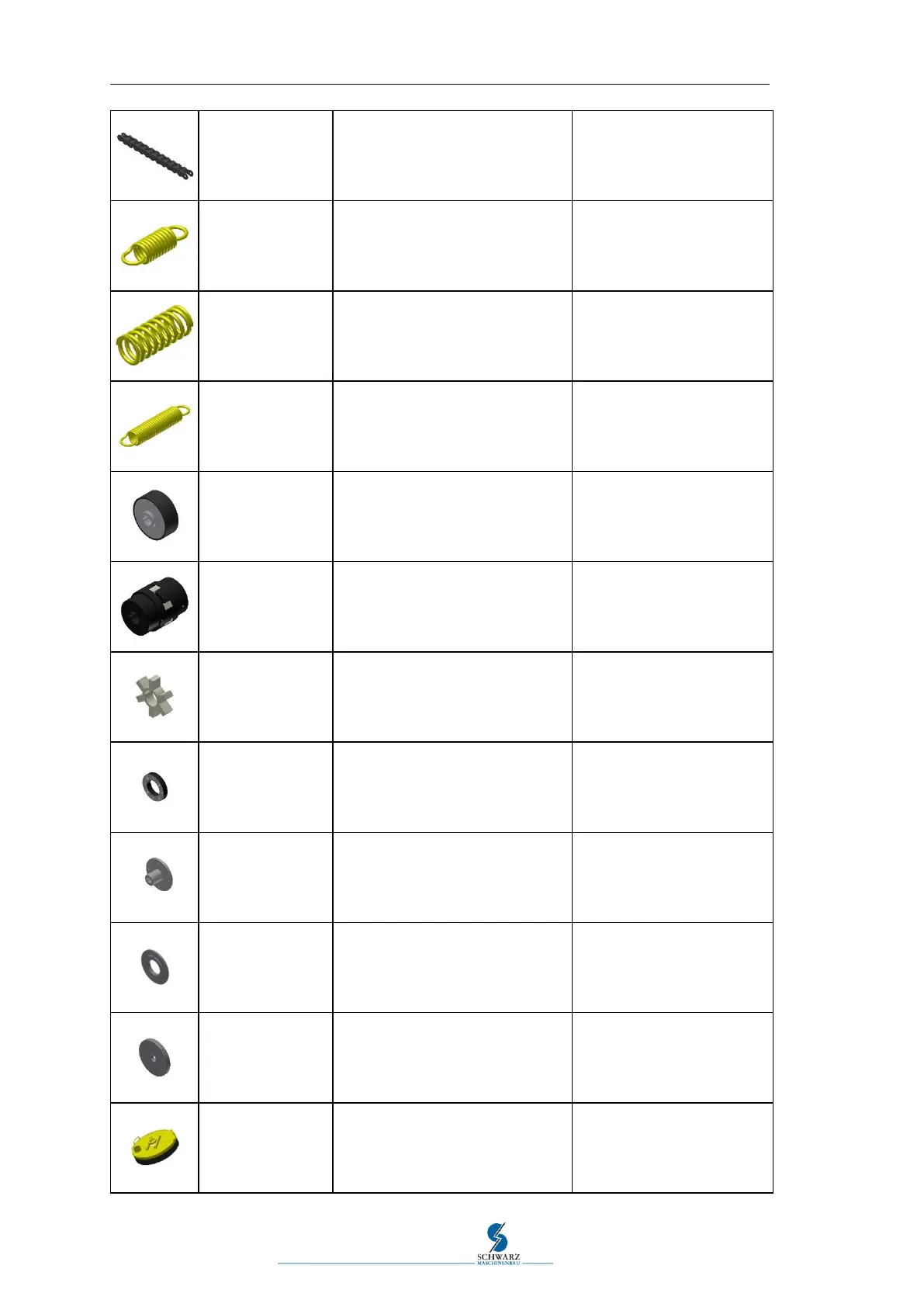

Item no.007 062
Roller chain f. drive shaft
Width adjustment
5/8" x 3/8"
Length = 600
Width adjustment
Item no.008 004
Tension spring
Ø45x85
Wire diameter = Ø7
Side cleaning
Item no.008 006
Pressure spring
Ø30x70
Wire diameter = Ø4
Transverse cleaning
Press-on damping
Item no.008 007
Tension spring
Ø25x150
Wire diameter = Ø3.3
Cover cleaning
Scraper bar
Item no.009 060
Transport roller, rubber-coated
Ø130x60
Inner diameter = Ø30
Transport
Item no.010 009
Coupling for drive unit
Transport
Item no.010 051
Coupling rubber
Matching Item no.010 009
Transport
Item no.010 100
Dampening ring
Ø160x30
Bore94
Cover cleaning
Item no.010 103
Brush shaft for disc brush
Cover cleaning
Item no.010 104
Brush receptacle ring
Ø190x19
Cover cleaning
Item no.010 105
Lid
Ø50x6
Inner diameter = Ø10.5
Transverse cleaning
Item no.010 106
Protective sheet for disc brushes
Cover cleaning
