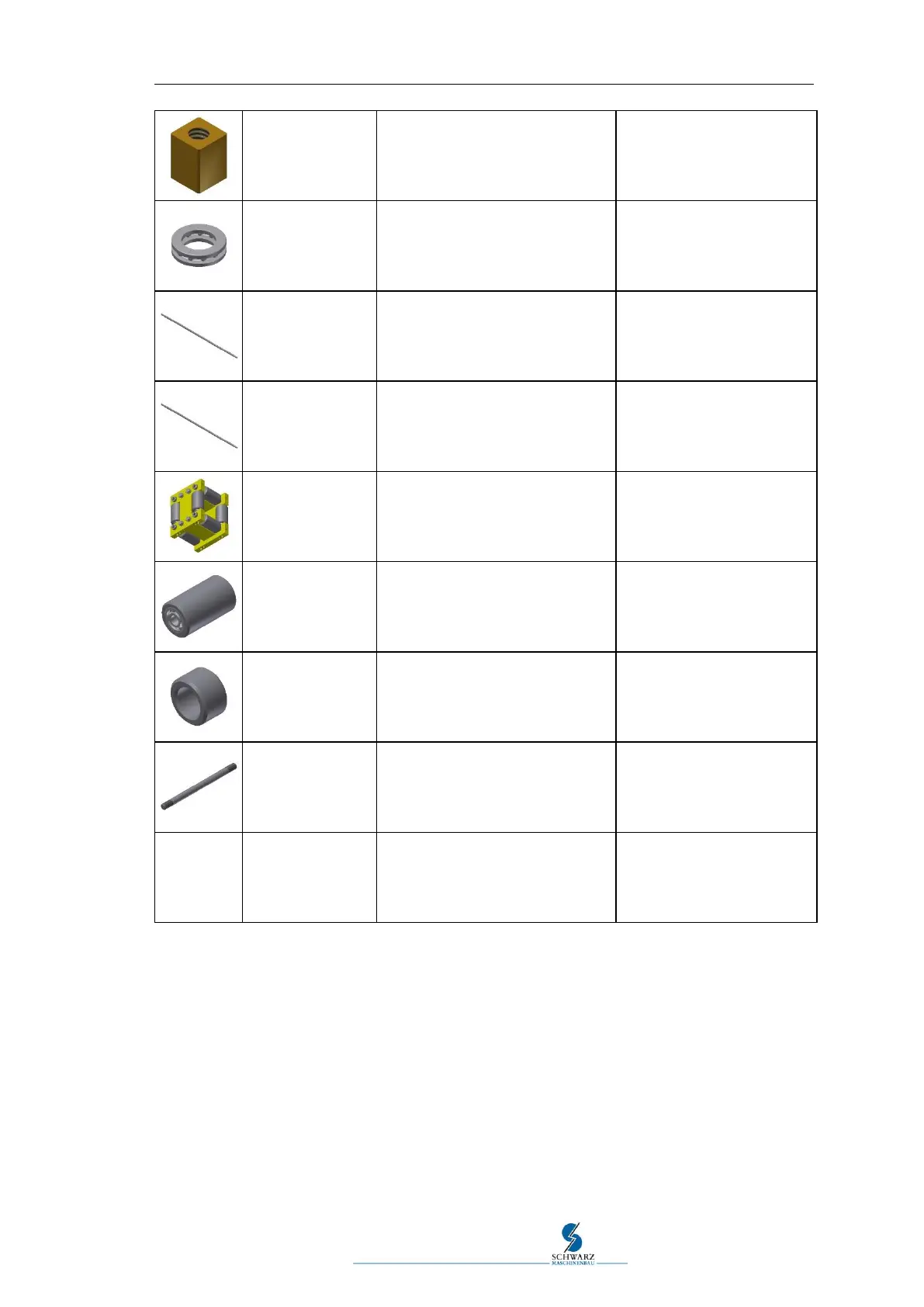

8.8 Mechanical spare and wear parts width adjustment 79
Item no.012 031
Trapezoid threaded nut
46x46x60
Width adjustment
Item no.011 202
Deep groove ball thrust
bearingAxial-Rillenkugellager
Outer diameter = Ø42
Inner diameter = Ø25
Width adjustment, among
others
Item no.012 070
Drive shaft f. side adjustment
Ø 30x1733 lg
Width adjustment
Connecting shaft
Item no.012 078
Trapezoid threaded spindle
Tr. 30x6x3000
Width adjustment
spindle
Item no.014 070
Roller carriage
Width adjustment
Main carriage drive box
Item no.014 073
Roller, including deep-groove ball
bearing
Ø45x78
Width adjustment
Rear support
Item no.014 085
Spacer ring
Outer diameter = Ø20
Inner diameter = Ø12.5
Length = 12.5
Width adjustment
Rear support
Item no.014 089
Roller screw for support block
Ø12x180
Thread = M12
Width adjustment
Rear support
