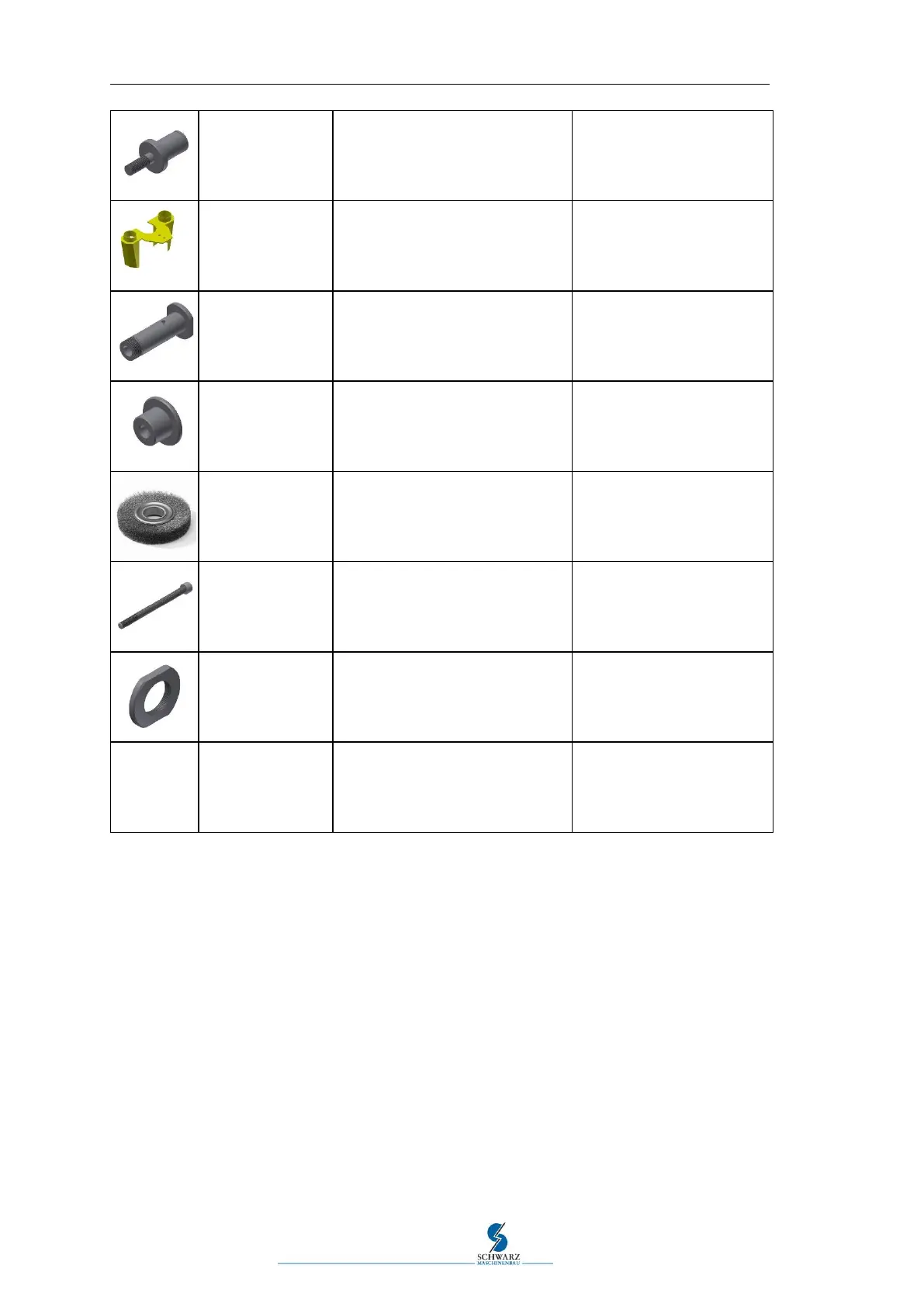

70 8 Spare parts and circuit diagrams
Item no.014 184
Idler bolt
Ø50x105 (total length)
Axis diameter = Ø30
Thread = M16
Transverse drive
Item no.014 218
Extraction hood for transverse
cleaning
Transverse cleaning
Item no.015 001
Brush shaft for transverse clean-
ing and left side cleaning
Right thread
Transverse cleaning
Side cleaning left
Item no.015 032
Lid for brush shaft
Ø45x25.5
Transverse cleaning
Side cleaning
Item no.016 001
Brush segment
Ø180
Wire thickness = 0.3
Transverse cleaning
Side cleaning
Item no.017 002
Cylinder head screw for brush
shaft
M10x130
Transverse cleaning
Side cleaning
Item no.017 006
nut
for transverse cleaning and left
side cleaning
Right thread
Transverse cleaning
Side cleaning
Brush shaft
