Schwarz SB10B - Page 58

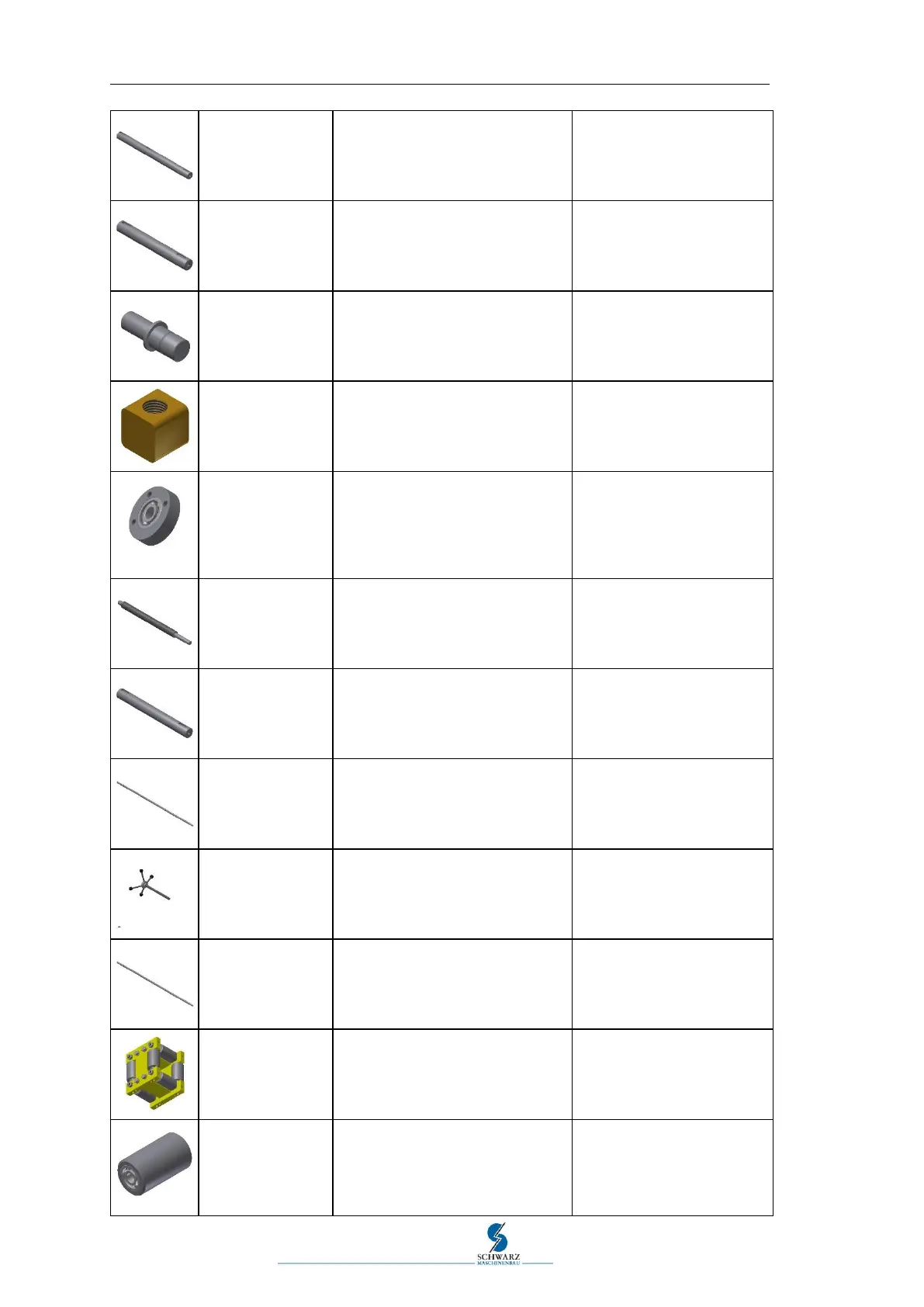

58 8 Spare parts and circuit diagrams
Item no.012 046
Drive shaft – drive box
Ø30x375
Transport
2x on motor axis
Item no.012 047
Gear shaft for drive box
Ø30x235.4
Transport
Drive box
Item no.012 050
Axis for support roller – drive box
Matching Item no.014 401
Transport
Drive box
Item no.012 053
Nut M27
VK-45x45x46
Brass
Cover cleaning
Height adjustment
Item no.012 059
Bearing holder
Including deep-groove ball bear-
ing
Ø78x20
Side cleaning
Supply
Item no.012 066
Threaded spindle
M27x390 (total length)
Side cleaning
Supply
Item no.012 067
Gear shaft for drive box
Ø30x275.4
Transport
Item no.012 070
Drive shaft f. side adjustment
Ø 30x1733 lg
Width adjustment
Connecting shaft
Item no.012 071
Spindle for height adjustment
cover cleaning
M20x300
Cover cleaning
Scraper bar
Item no.012 078
Trapezoid threaded spindle
Tr. 30x6x3000
Width adjustment
spindle
Item no.014 070
Roller carriage
Width adjustment
Main carriage drive box
Item no.014 073
Roller including deep-groove ball
bearing
Ø45x78
Width adjustment
Rear support
