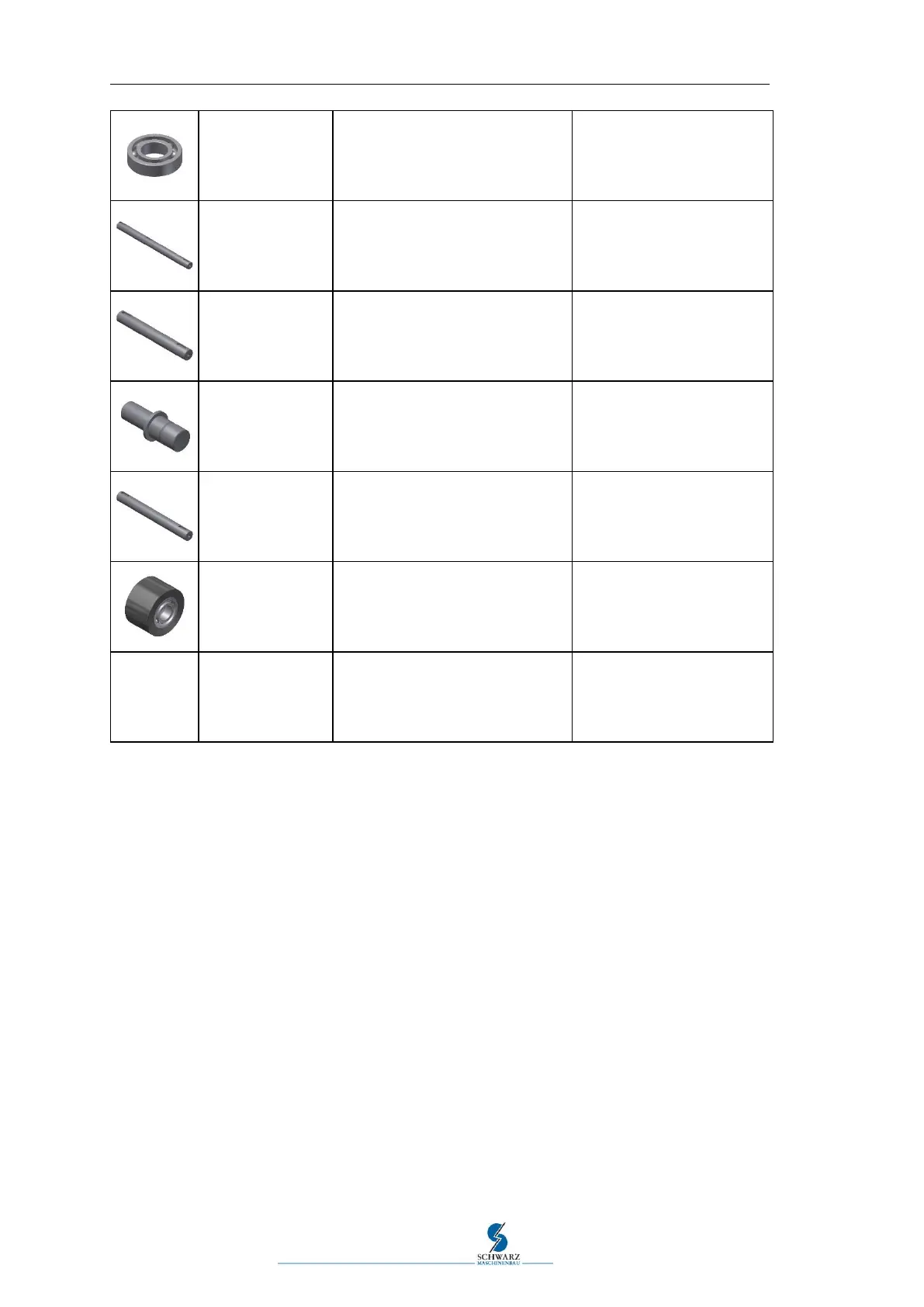

68 8 Spare parts and circuit diagrams
Item no.011 107
Deep-groove ball bearing
Outer diameter = Ø62
Inner diameter = Ø30
Transport
Drive roller
Item no.012 046
Drive shaft – drive box
Ø30x375
Transport
2x on motor axis
Item no.012 047
Gear shaft for drive box
Ø30x235.4
Transport
Drive box
Item no.012 050
Axis for support roller – drive box
Matching Item no.014 401
Transport
Drive box
Item no.012 067
Gear shaft for drive box
Ø30x275.4
Transport
Item no.014 401
Support roller for drive box
Transport
