Vers.: 20230710ENG
Page 56
10.4 Touchscreen calibration
If the touchscreen does not correctly respond to the positions you touched, perform the
procedure to calibrate the touchscreen.
1. Tap MENU > SERVICE > SCREEN CAL.
2. Tap SCREEN CAL. in the middle of the screen.
3. Tap the black + sign at the upper left corner of the screen as instructed to start the
calibration.
4. After the calibration is completed, the message “Calibration succeeded.” is displayed.
10.5 Viewing and exporting logs
The “Log” screen records all activities of the analyzer. It contributes significantly to searching
for operation history and troubleshooting the analyzer.
The analyzer can save logs of the recent two years. If number of logs exceeds the upper limit,
the latest log will overwrite the oldest one. You can browse and print logs but cannot delete
them.
View logs:
1. Tap MENU > SERVICE > LOG.

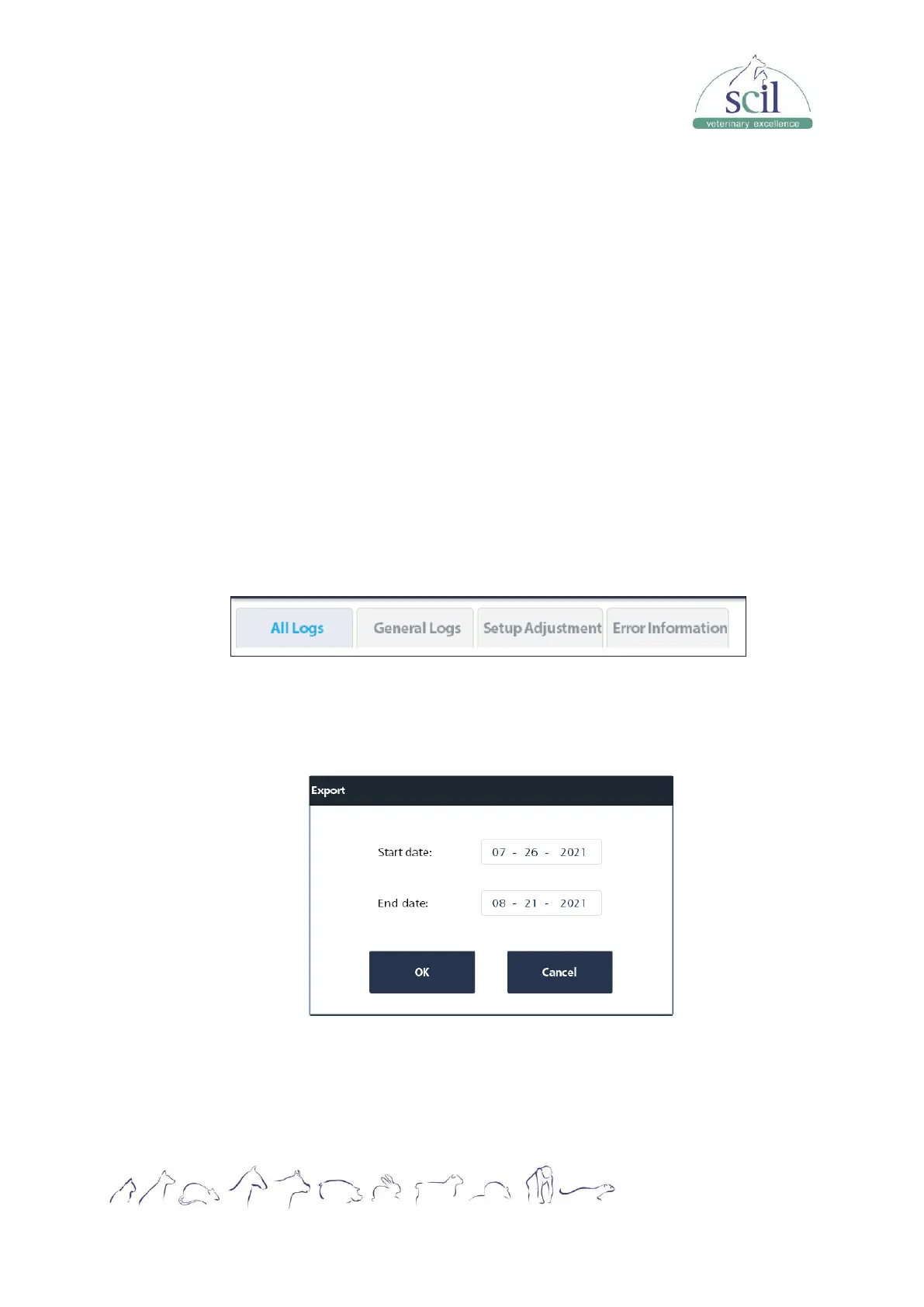

2. Tap a type of logs to be viewed.
Export logs:
You may export the logs in specified time range on a USB stick.
1. Tap MENU > SERVICE > LOG.
2. Tap EXPORT. A dialog box will be displayed.
3. In the “Start date” and “End date” fields, specifiy the time range in which logs need to
be exported.
4. Confirm with OK.
