scil Element HT5+ User Manual

Vers.: 20230710ENG
Page 26
4.2.4 Moving and installing the analyzer
NOTE:
Before the analyzer is shipped, some components are fixed by a red tie to avoid any damage
during the transportation. Remove the red tie before using the analyzer by opening the front
cover from bottom to top and identify the four red ties that need to be removed.
4.3 Connecting the analyzer system
4.3.1 Connection of the reagents
Connect the reagents as shown in the following figures. Make sure the connections are correct
and firm.

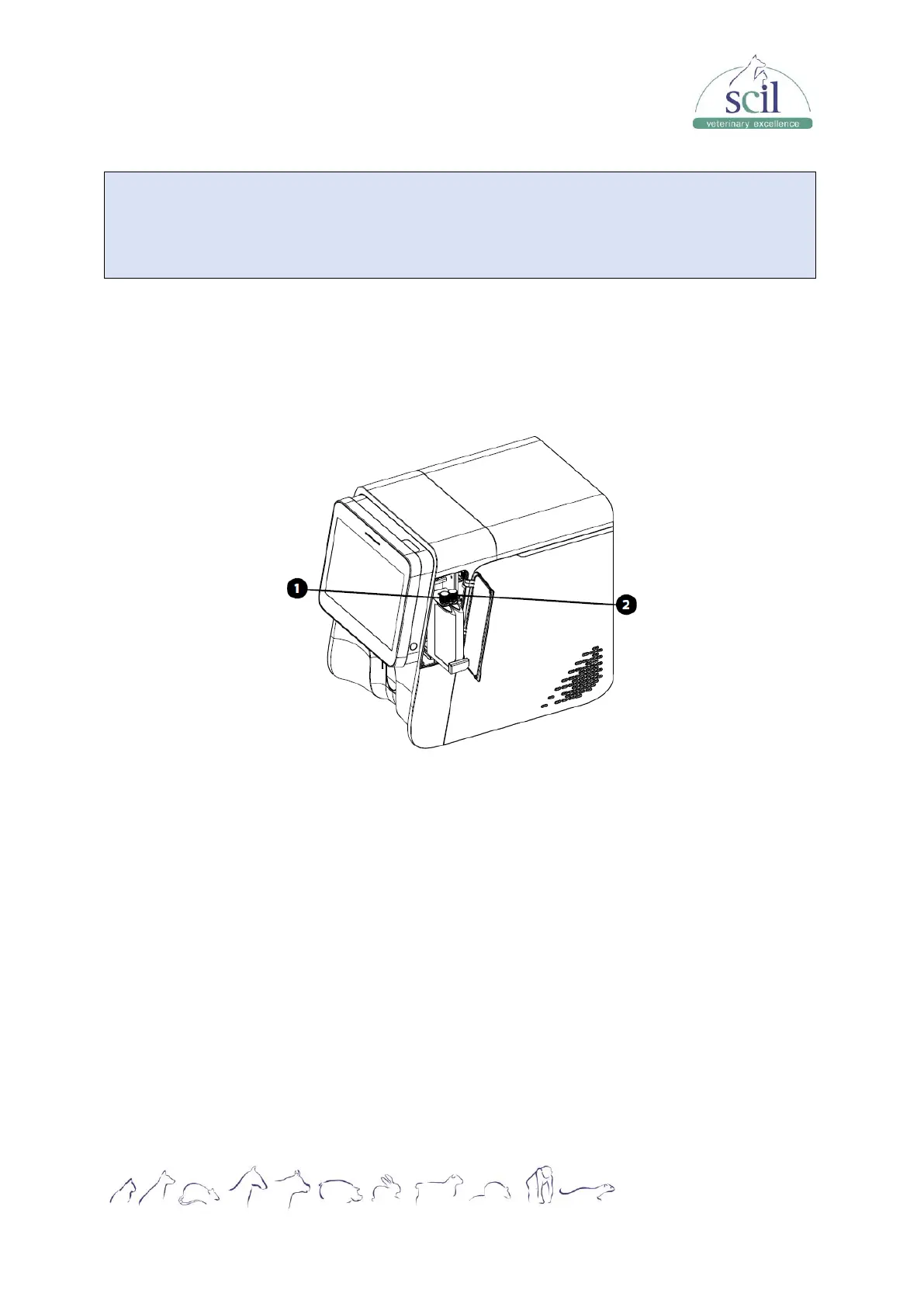

*Connection of the FD Dye (1) and the FR Dye (2)
