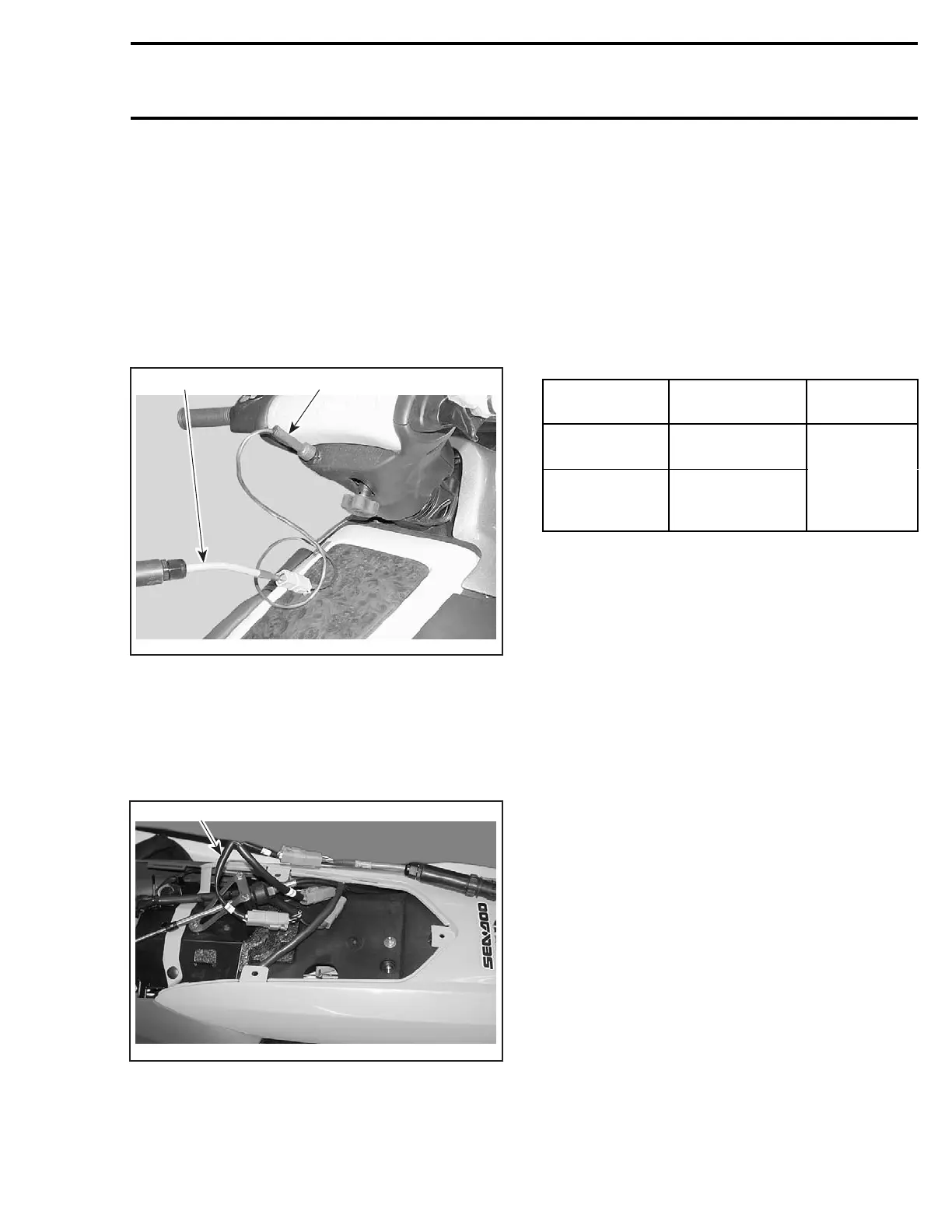

Section 06 ENGINE MANAGEMENT (RFI)
Subsection 02 (DIAGNOSTIC PROCEDURES )
DIAGNOSTIC PROCEDURES
ADVANCED DIAGNOSTIC
VCK (Vehicle Communication Kit)
Electrical Connections
Connect VCK components and open the software
B.U.D.S.
2
F12H0BA
1
TYPICAL
1. 6-pin adapter (P/N 529 035 679)
2. DESS adapter (P/N 529 035 684)
NOTE: It is also possible to disconnect the con-
nector located under the top cover of steering pole
and install the RFI DESS adapter (P/N 278 001
978).
1
F22R07A
1. RFI DESS adapter
After all connections are done, connect the safety
lanyard to the DESS post to activate the commu-
nication.
IMPORTANT: When using the software B.U.D.S.,
ensure that the protocol matching the connec-
tion used is properly selected in “MPI” under
“Choose protocol” as per the following chart.
TYPE OF
CONNECTION
ADAPTER TO
USE
PROTOCOL
TO CHOOSE
Through DESS
post
DESS adapter
(P/N 529 035 684)
Through
6-pin DESS
connector
RFI DESS adapter
(P/N 278 001 978)
DESS
smr2004-3D 23
