Section10FUELSYSTEM
Subsection 01 (FUEL CIRCUIT)
FUEL CIRCUIT
Fuel Tank Removal and Installation
The engine removal is necessary to remove fuel
tank.
Disconnect battery.
WARNING
Always disconnect BLACK negative cable
first.

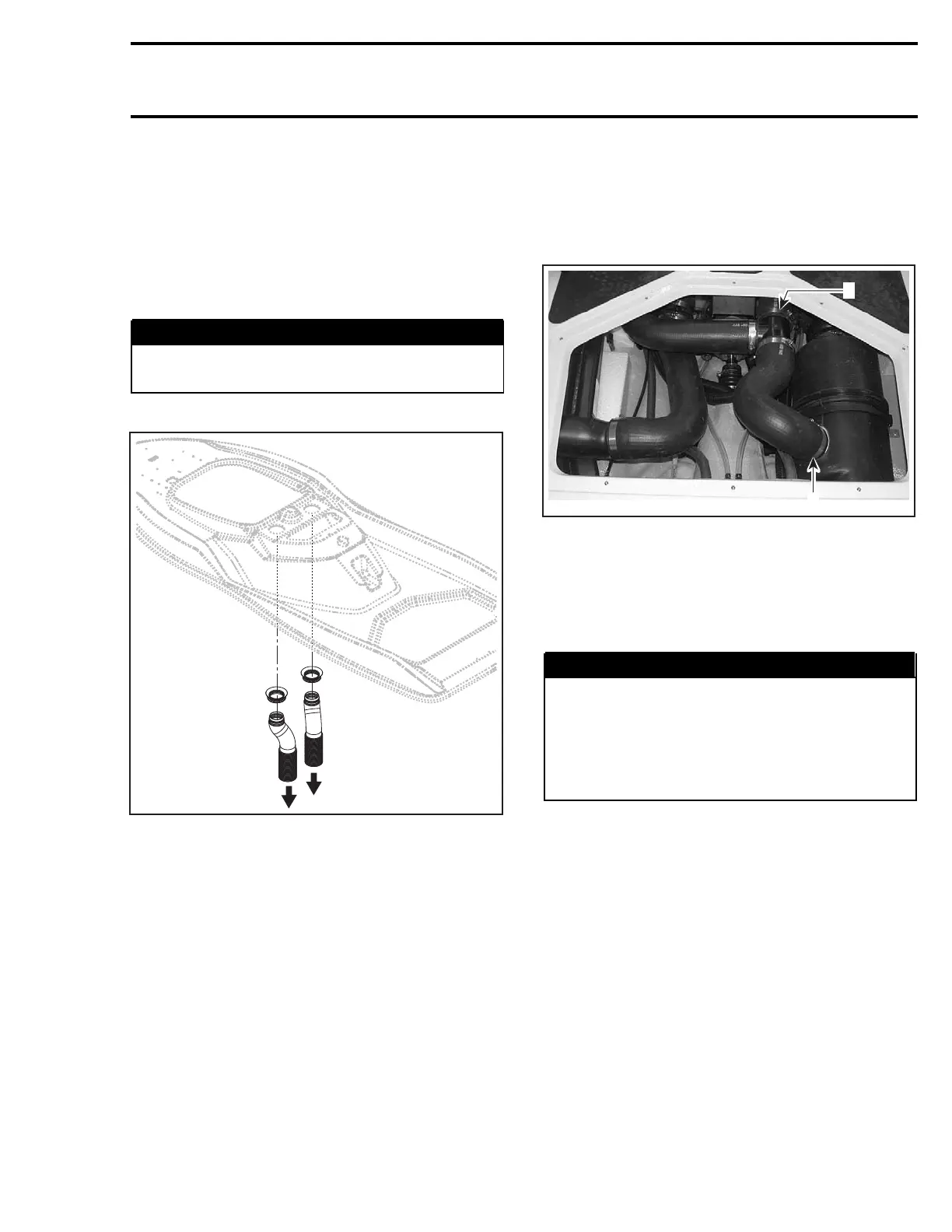

Pull out both vent tubes.
F22J0AA
Remove ignition coils.
Disconnect fuel hoses. Refer to RFI ENGINE
MANAGEMENT in the Shop Manual.
Disconnect fuel pump wire harness.
Siphon fuel tank.
Remove electric fuel pump.
To have access to the rear fuel tank holding strap,
remove exhaust hoses with the resonator.
F22D06A
1
1
1. Loosen clamps and pull out hoses with resonator
Detach all 3 fuel tank straps.
Pull out fuel tank.
Installation is essentially the reverse of removal
procedure.
WARNING
Whenever doing any type of repair on wa-
tercraft or if any components of the fuel sys-
tem are disconnected, a pressure test must be
done before starting engine. Ensure to verify
fuel line ends for damage. Always cut dam-
aged end before reinstallation.
smr2004-3D 31
