Section 12 ELECTRICAL SYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)

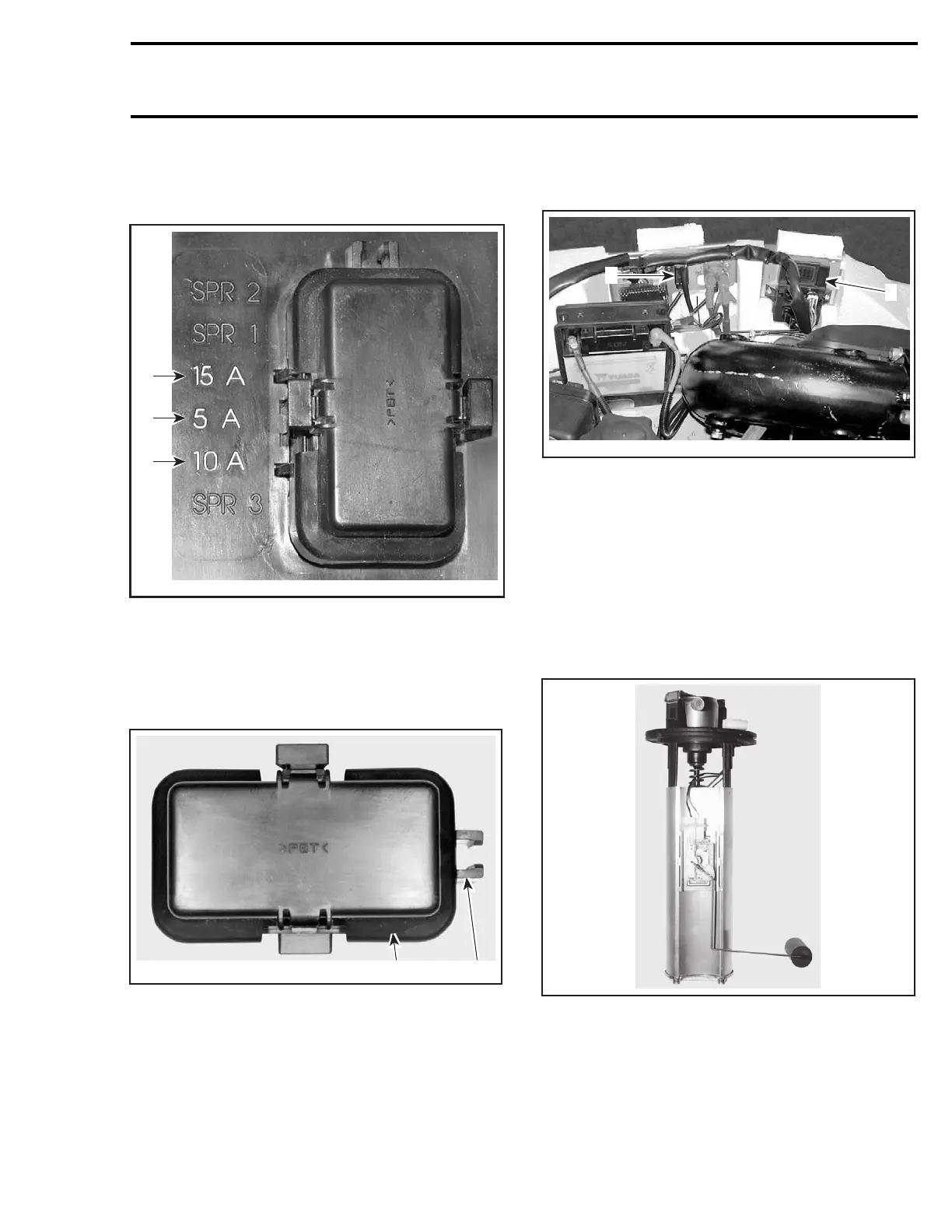

Fuse ratings are identified on the MPEM. Look for
them beside the fuse holder. SPR means spare
(fuse).
F17H05A
1
2
3
1. 15 A (battery)
2. 5 A (MPEM)
3. 10 A (fuel pump)
Remove fuse cover from MPEM.
Use the tabs of the fuse cover to remove and re-
install fuses.
F06H1TA
1 2
1. Fuse cover
2. Fuse tabs
Main Fuse
The main fuse is located beside the VCM.
F22H02A
1
2
1. VCM
2. Main fuse
INSPECTION
Fuel Baffle Pick-Up Sender
The fuel pick-up system is part of the fuel pump
module mounted inside the fuel reservoir.
The fuel level gauge sender is also mounted on
this module.
F07F09A
TYPICAL — FUEL LEVEL GAUGE SENDER MOUNTED
ON FUEL PUMP MODULE
Refer to ENGINE MANAGEMENT for fuel pump
testing. For fuel level sensor, follow procedures
below.
smr2004-3D 47
