Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
INSPECTION
NOTE: A mechanism that is hard to move might
only need to be disassembled, cleaned, lubricated
then reinstalled.
If there is excessive play in the following inspec-
tions, replace worn bushings or any other worn
component.

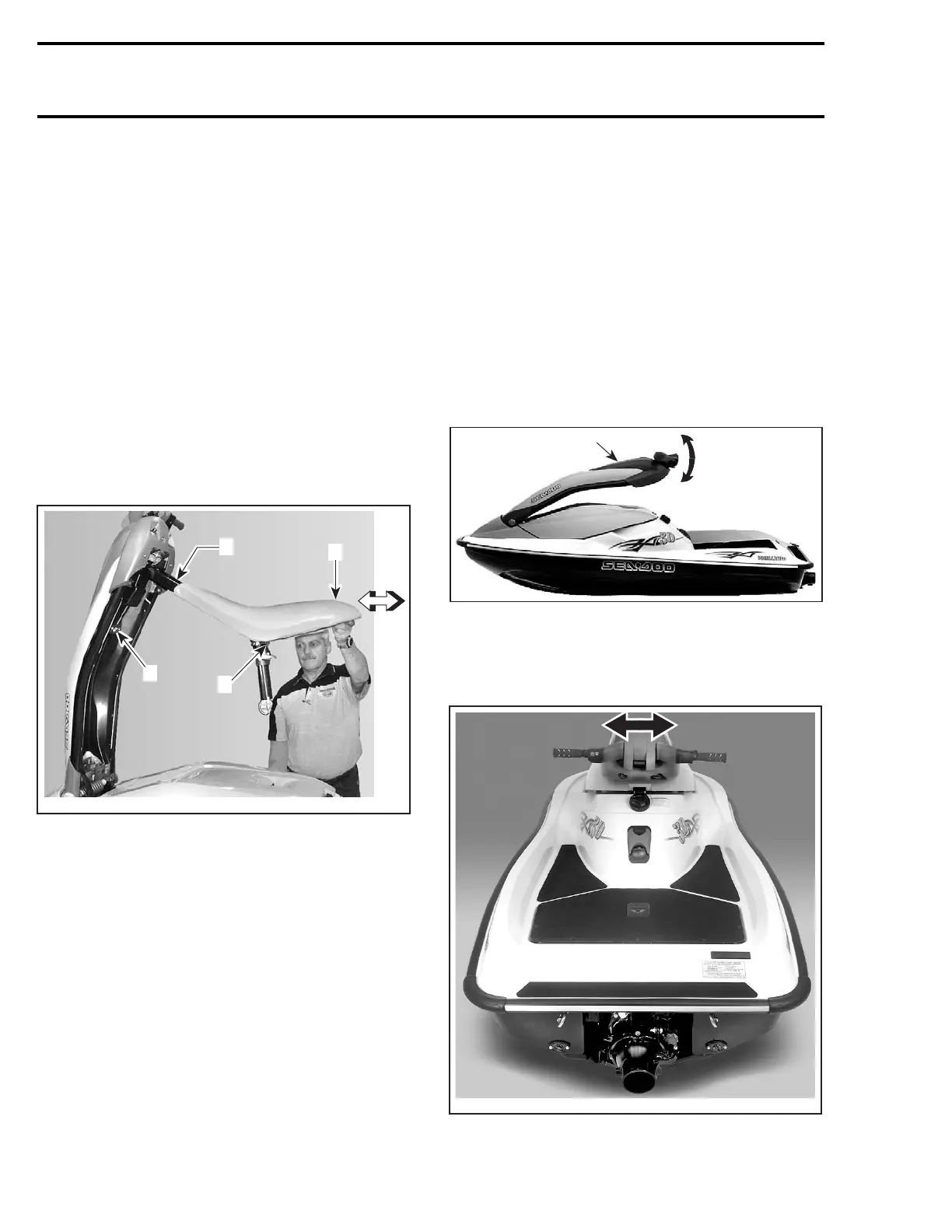

Moto Seat
Check that the moto seat properly latches into the
steering pole. Inspect the latch mechanism for
wear.
Deploy the seat. Ensure that the seat moves
freely while rotating. Check for excessive lateral
play.
Also check for excessive play of seat post in seat.
F22L0SA
1
2
4
3
1. Latch mechanism
2. Seat structure
3. Check play of seat post
4. Check lateral play of seat structure
Inspect the seat post receiver in the deck. Check
for dirt, sand or other debris. Check for excessive
wear. Ensure that the cover moves freely.
Inspect post knuckle condition. Check for wear,
cracks and tightness.
Install the seat post in its receiver and ensure
it latches properly. Inspect latch mechanism for
wear. Try pulling out the post without releasing
the latch.
Handlebar and Adjuster
Move handlebar to each position. It should move
easily and lock in each position. Make sure there
is no excessive play in the handlebar and in the
steering stem.
Steering Pole
First make sure to stow the moto seat.
Move steering pole up and down. It should move
freely and smoothly without resistance. If steer-
ing pole feels too heavy, it can be adjusted with
the return spring. If it does not help, the spring
no. 31 could be broken.
F22L0BA
1
1. Steering pole
Lower steering pole to the lowest position and try
moving it from side to side to detect any excessive
play.
F22L06B
62 smr2004-3D
