Section 13 PROPULSION
Subsection 02 (DRIVE SYSTEM)
REMOVAL

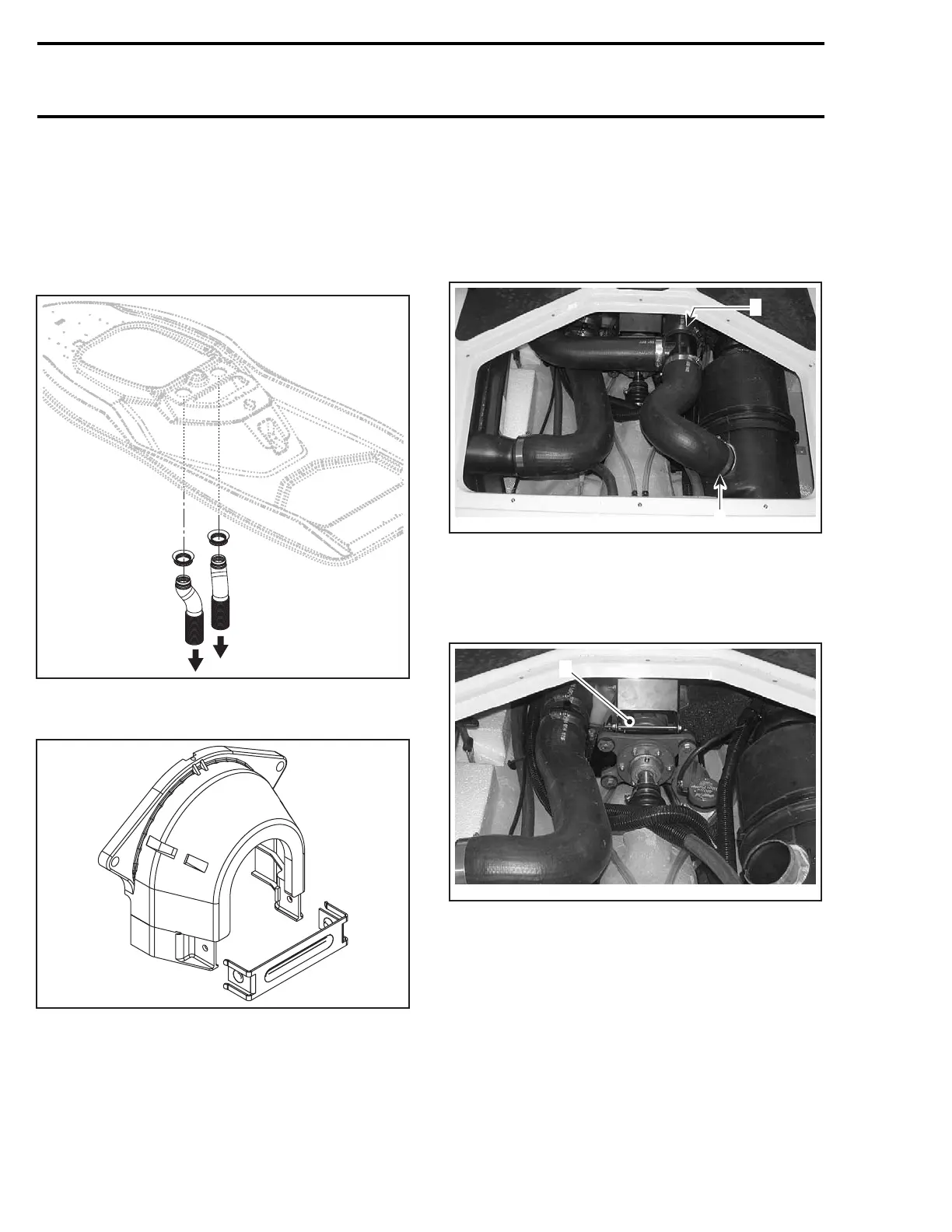

PTO Flywheel Guard
Lift and lock steering pole, remove hood and re-
move storage tray.
Pull down vent tubes from body.
F22J0AA
Detach link plate at the back of flywheel guard
then remove guard.
F22J0BA
Rear Drive Shaft
Remove rear access panel.
Remove clamps from exhaust hoses where
shown.
Pull out T-fitting with hoses and resonator.
F22D06A
1
1
1. Disconnect those clamps
Moveremaininghoseawaytomakeroom.
Pull rear drive shaft until coupler is disengaged
from splines.
F22J0CA
1
1. Pull drive shaft to disengage coupler from splines
Remove rear drive shaft.
Remove coupler.
54 smr2004-3D
