Section 04 ENGINE (2-STROKE)
Subsection 07 (EXHAUST SYSTEM)

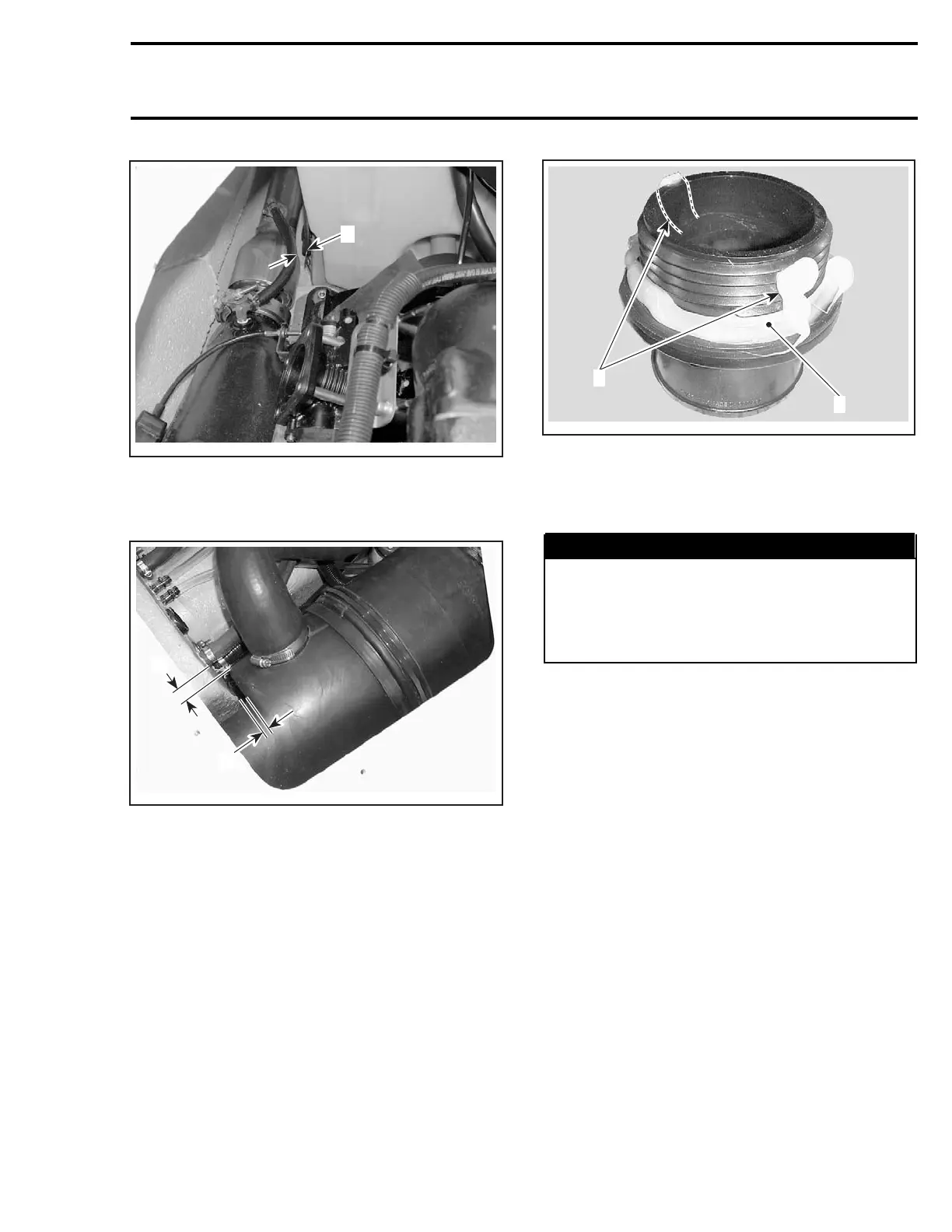

F22D0NA
A
A. Gap between hose and fuel tank
Ensure there is a gap between muffler and
bilge/cooling hose.
F22D0OA
A
A
A. Gap between muffler and bilge/cooling hose
Tighten small bellow clamp no. 12. Ensure bellow
is not trapped between foam and expansion pipe.
Ensure exhaust hose no. 67 rests against fuel
tank.
Exhaust Outlet
Prior to installing exhaust outlet no. 20, apply Loc-
tite 5150 as shown.
F22D0PA
1
2
1. All around
2. Opposite vertical lines
Finalizing Assembly
WARNING
Ensure that tubes and hoses are properly
routed away from any rotating, moving,
heating or vibrating parts. Also ensure that
hot parts are properly positioned away from
any part that can be damaged by the heat.
Reinstall remaining parts.
Depress and release the throttle lever. It should
operate smoothly and return to its initial position
without any hesitation.
Reset the Closed TPS. Refer to ENGINE MAN-
AGEMENT.
smr2004-3D 21
