Section 18 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
WIRING DIAGRAMS

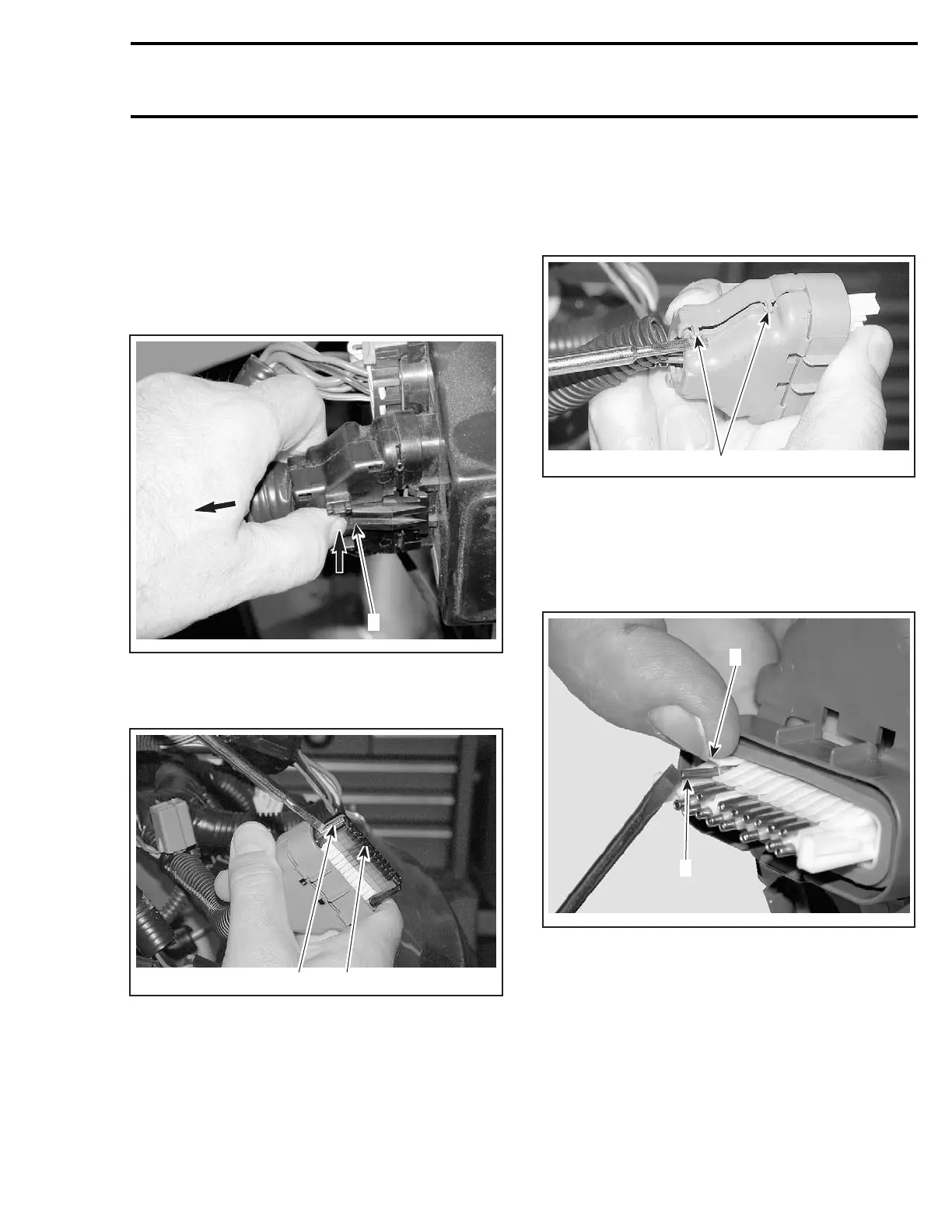

VCM CONNECTORS
32-Pin Connector
Push down tab and hold to unlock connector while
pulling it out.
A34E0KA
1
TYPICAL
1. Push tab and hold while pulling connector out
Push on both tabs to remove retainer.
1
A33Z01A
2
TYPICAL
1. Retainer
2. Tab (one on each side)
Open housing by lifting 4 tabs.
1
A33Z02A
TYPICAL
1. Tabs (2 on each side)
Lift the top plastic lock of the female terminal to
be removed and hold in position. Lift the female
terminal to unlock from the housing and push out
of housing.
A32E3XA
2
1
TYPICAL
1. Lift and hold plastic lock
2. Lift to unlock and push out
smr2004-3D 87
