Section 14 STEERING SYSTEM
Subsection 02 (ALIGNMENT)
ALIGNMENT

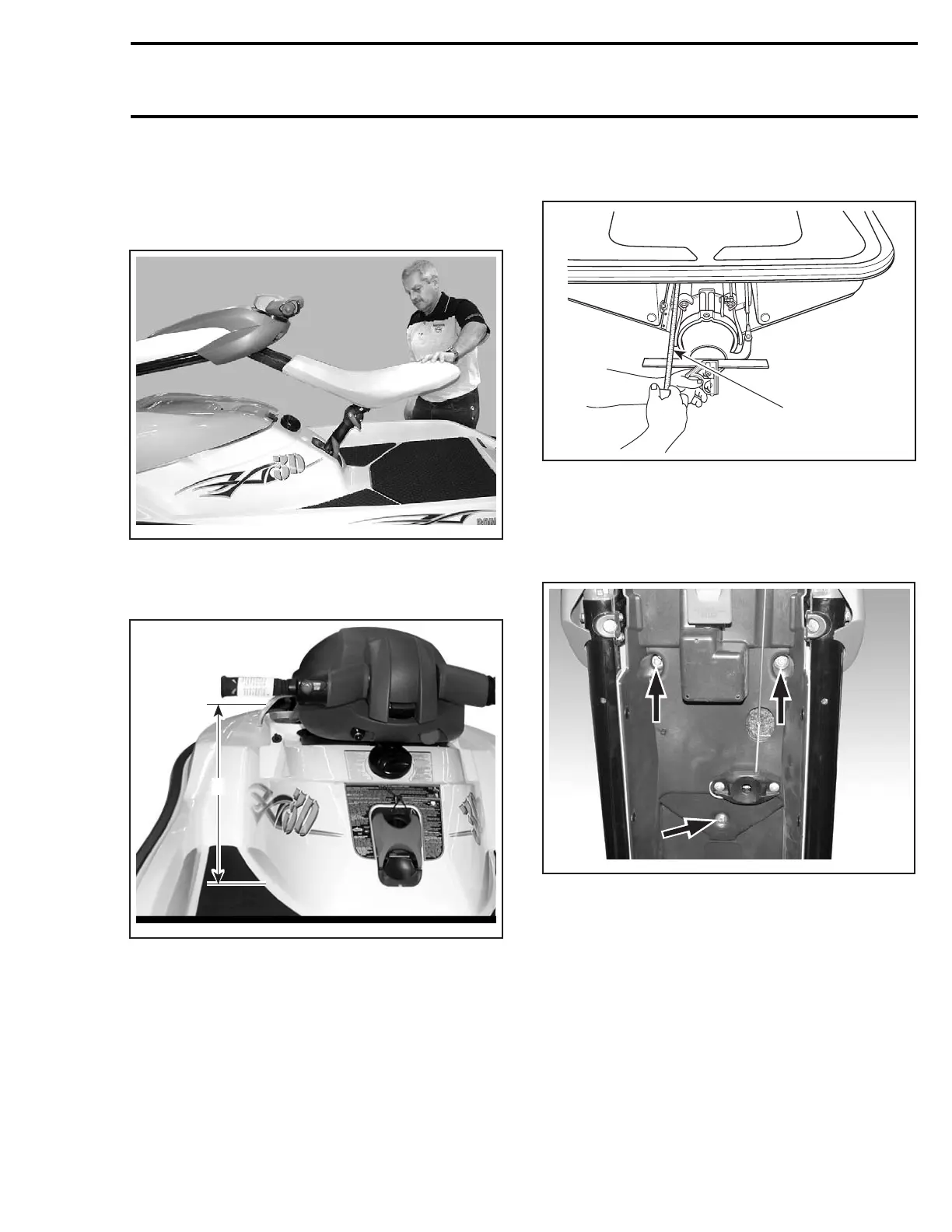

Alignment is to be performed when moto seat is
deployed and installed.
F22L0PA
Position handlebar in straight ahead position by
measuring each side the distance from handlebar
grip end to floorboard.
F22J06A
1
1. Measuring handlebar grip end/floorboard distance
Check jet pump nozzle position by placing a
straight edge on nozzle outer end. Measure the
distance on each side of the straight edge. It
must be equalled.
F01J5ZA
1
TYPICAL
1. Measure the distance on each side of the straight edge
If necessary, steering alignment adjustment
should be performed at steering cable support.
Remove top cover.
F22K0YA
