Section 06 ENGINE MANAGEMENT (RFI)
Subsection 05 (ADJUSTMENT)
ADJUSTMENT
THROTTLE CABLE
ADJUSTMENT
NOTE: For throttle cable replacement, refer to
STEERING SYSTEM.

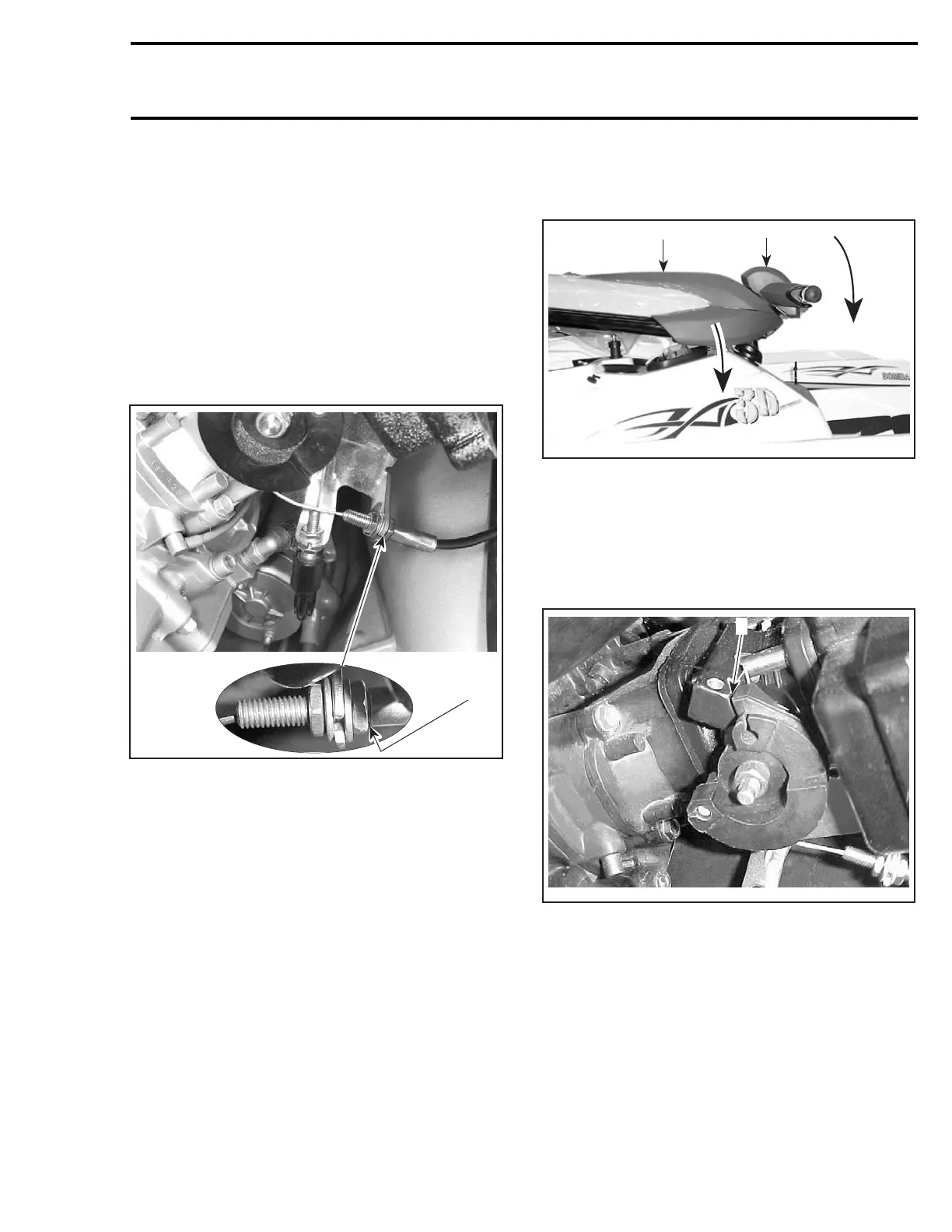

Right throttle cable adjustment is to be done at the
adjuster on top of steering pole. However, first
ensure adjuster at throttle body is fully screwed
in.
1
F22R06A
1. Adjuster fully screwed in
Otherwise, set it. Whenever adjuster is set at the
throttle body, the throttle cable must be adjusted
at the OTAS solenoid. Refer to INSTRUMENTS
AND ACCESSORIES for the procedure.
Position steering pole and handlebar to their low-
est position. Place handlebar in the straight ahead
position.
1
2
F22K09A
1. Steering pole at its lowest position
2. Handlebar at its lowest position and in straight ahead position
Fully depress throttle lever and hold. Throttle
lever stopper should almost contact throttle body.
To ensure there is free play, apply a light pres-
sure on the throttle plate, a slight play should be
obtained.
F22G03A
1
1. Free play here
CAUTION: Improper cable adjustment will
cause strain on cable and/or damage cable
bracket or throttle lever at handlebar.
smr2004-3D 25
