Section 13 PROPULSION
Subsection 04 (VARIABLE TRIM SYSTEM)
REMOVAL
Remove nut no. 1,boltno. 2, flat washers no. 3,
and bushing no. 4.
Remove venturi screw.

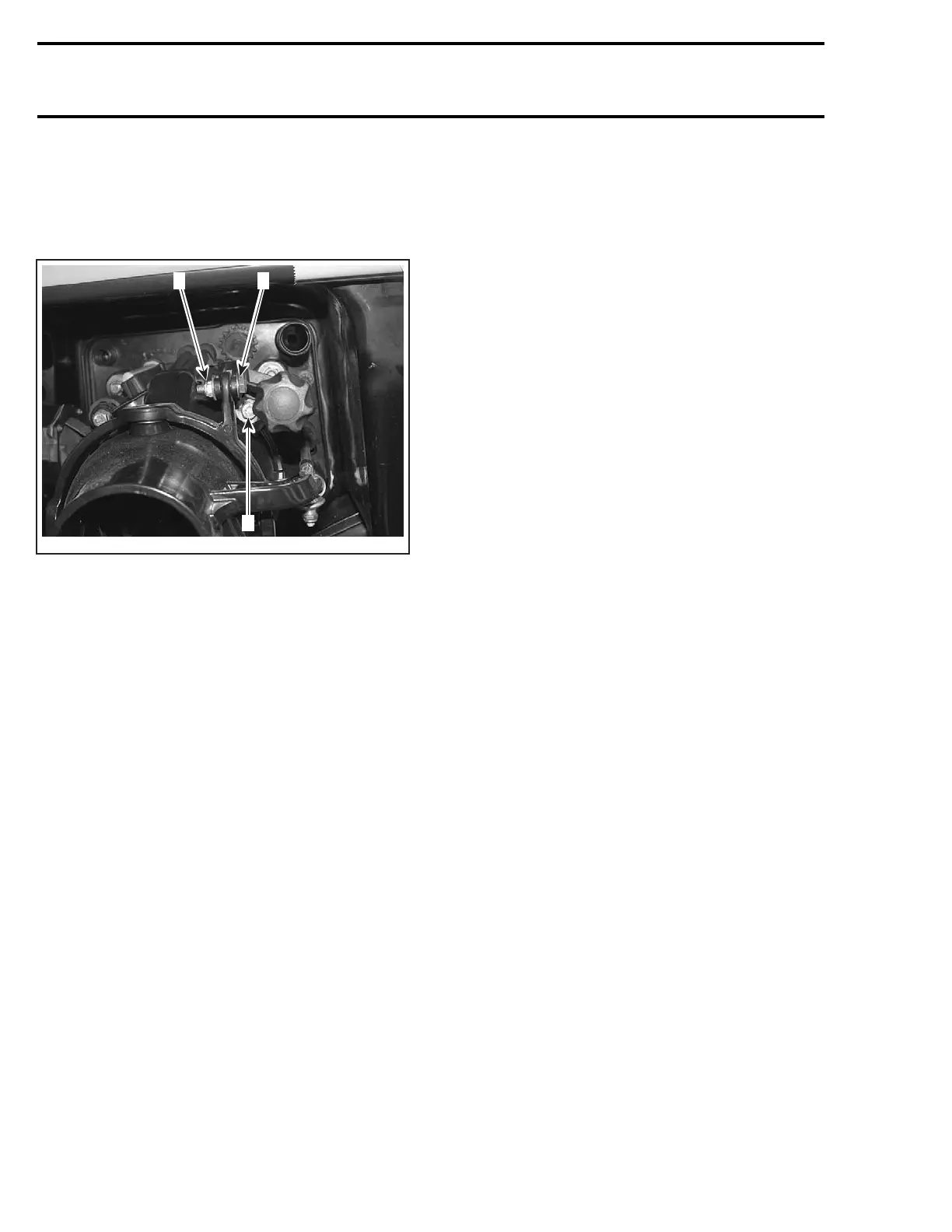

F22J08A
1 2
3
1. Nut
2. Bolt
3. Venturi screw
To remove trim ring/nozzle no. 11, loosen screws
no. 12.
DISASSEMBLY
Loosen nut no. 6 from support no. 9.
Remove rubber spacer no. 7 and half bushings
no. 8.
Unscrew adjustment knob no. 10 from pivot no. 5.
ASSEMBLY
Assembly is essentially the reverse of disassem-
bly procedures. Refer to the main illustration at
the beginning of this sub-section for proper torque
specifications and service products to be used.
58 smr2004-3D
