Sea-doo 2004 3D RFI Shop Manual

Section 09 COOLING SYSTEM
Subsection 01 (CIRCUIT, COMPONENTS AND CARE)
CIRCUIT, COMPONENTS AND CARE

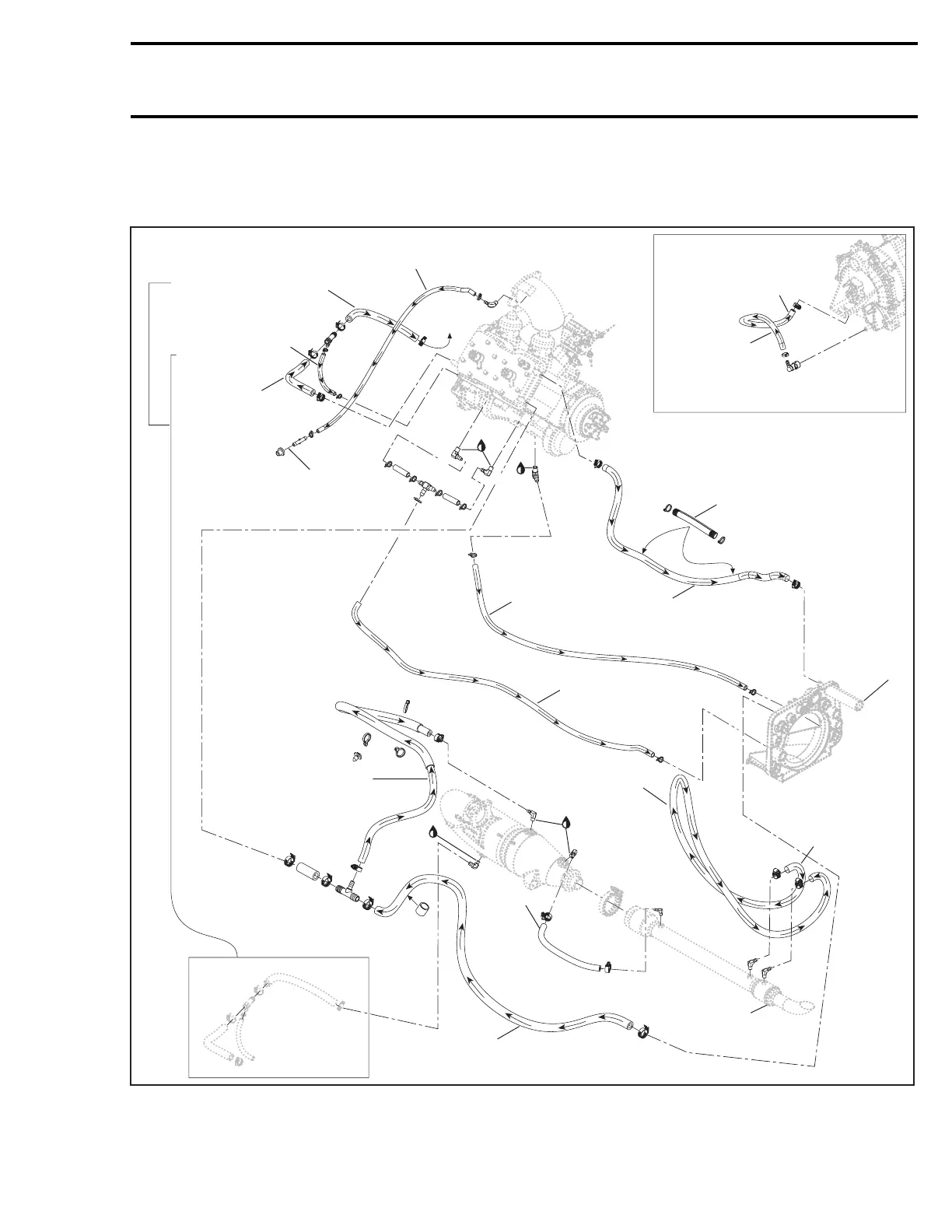

3D RFI
Engine drain hose
(from cylinders)
F22E05S
Cooling System Indicator hose
(CSI)
Tuned pipe water
jacket supply hose
To tunel
pipe
Cylinder head
outlet hose
Magneto heat
exchanger inlet hose
Loctite 592
Loctite
592
Hose protector
Engine water
outlet hose
Crankcase heat
exchanger outlet
hose
Loctite 592
Hose
adapter
(flushing)
Anti-rollover bypass
hose (expansion pipe
water jackets)
Water injection
in muffler
Bypass
hose
(tuned
pipe/
expansion
pipe water
jackets)
Engine water
supply hose
Loctite
592
Tuned pipe
water-jacket
supply hose
(cone)
Magneto view
To crankcase heat
exchanger inlet
Magneto
heat
exchanger
outlet hose
CAUTION:
Do not modify
routing or
hose length
Hull
smr2004-3D 27
