Section 04 ENGINE (2-STROKE)
Subsection 07 (EXHAUST SYSTEM)

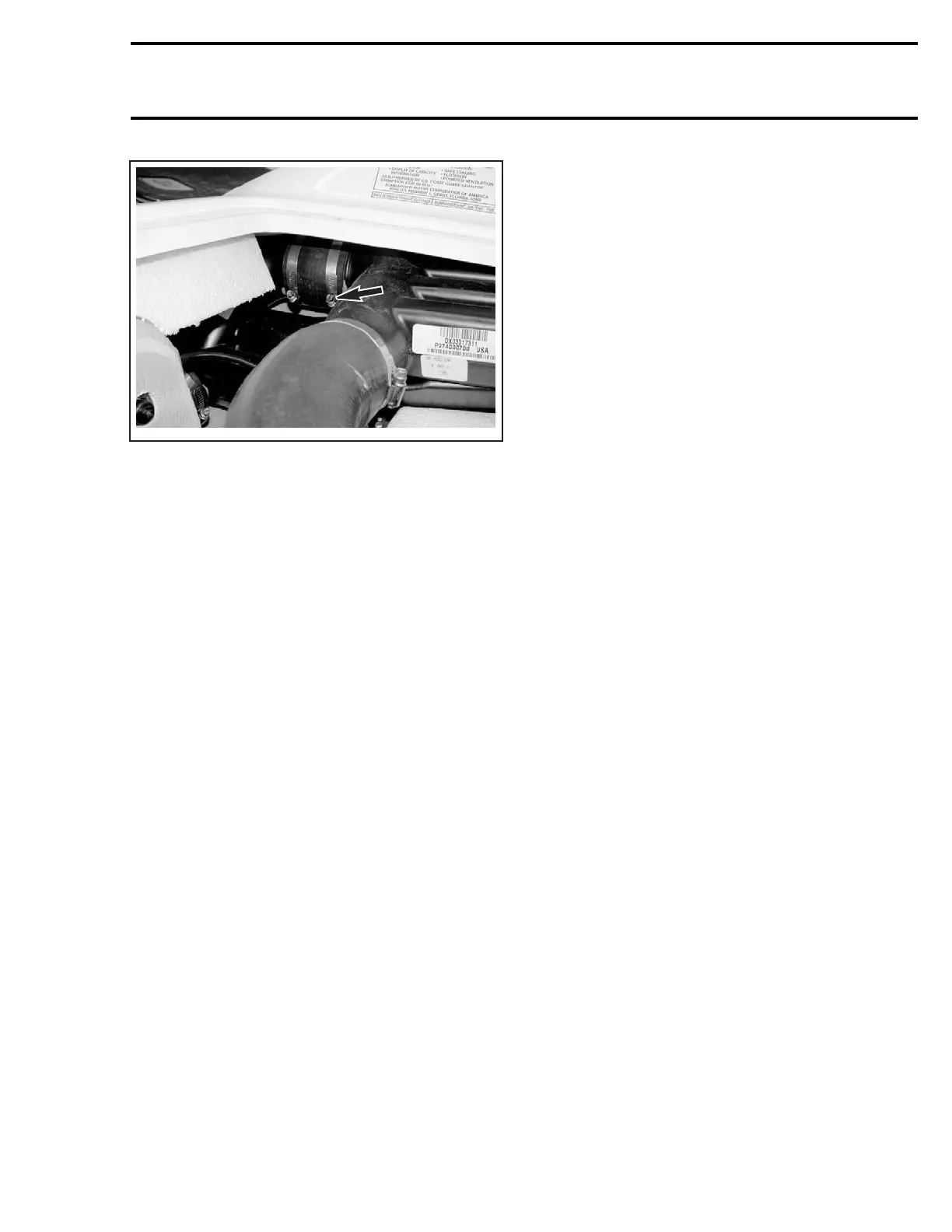

F22D0BA
INSTALLATION
Installation is essentially the reverse of removal
procedures. However, pay particular attention to
the following.
Tuned Pipe
CAUTION: Torque wrench tightening specifi-
cations must be strictly adhered to. Locking
devices (ex.: locking tabs, elastic stop nuts,
self-locking fasteners, etc.) must be installed
or replaced with new ones where specified. If
the efficiency of a locking device is impaired, it
must be renewed.
NOTE: Loosen all pipe supports from engine be-
fore installing tuned pipe.
Ensure rubber bushings no. 17 and sleeve no. 18
are not damaged and are properly installed into
tuned pipe supports.
CAUTION: Damage to bushings and/or sleeve
will eventually cause stress to tuned pipe and
may cause cracking.
Apply Loctite 518 on both sides of gasket no. 24.
Make sure that gasket no. 24 is properly located
on exhaust manifold prior to finalizing pipe instal-
lation.
Torquing Sequence
CAUTION: Torque the tuned pipe in accordance
with the following sequence, otherwise serious
engine damage may occur.
smr2004-3D 17
