Section 12 ELECTRICAL SYSTEM
Subsection 05 (DESS (CARBURETED AND RFI ENGINES))
DESS (CARBURETED AND RFI ENGINES)
DESS KEY PROGRAMMING
Programming Keys with B.U.D.S.

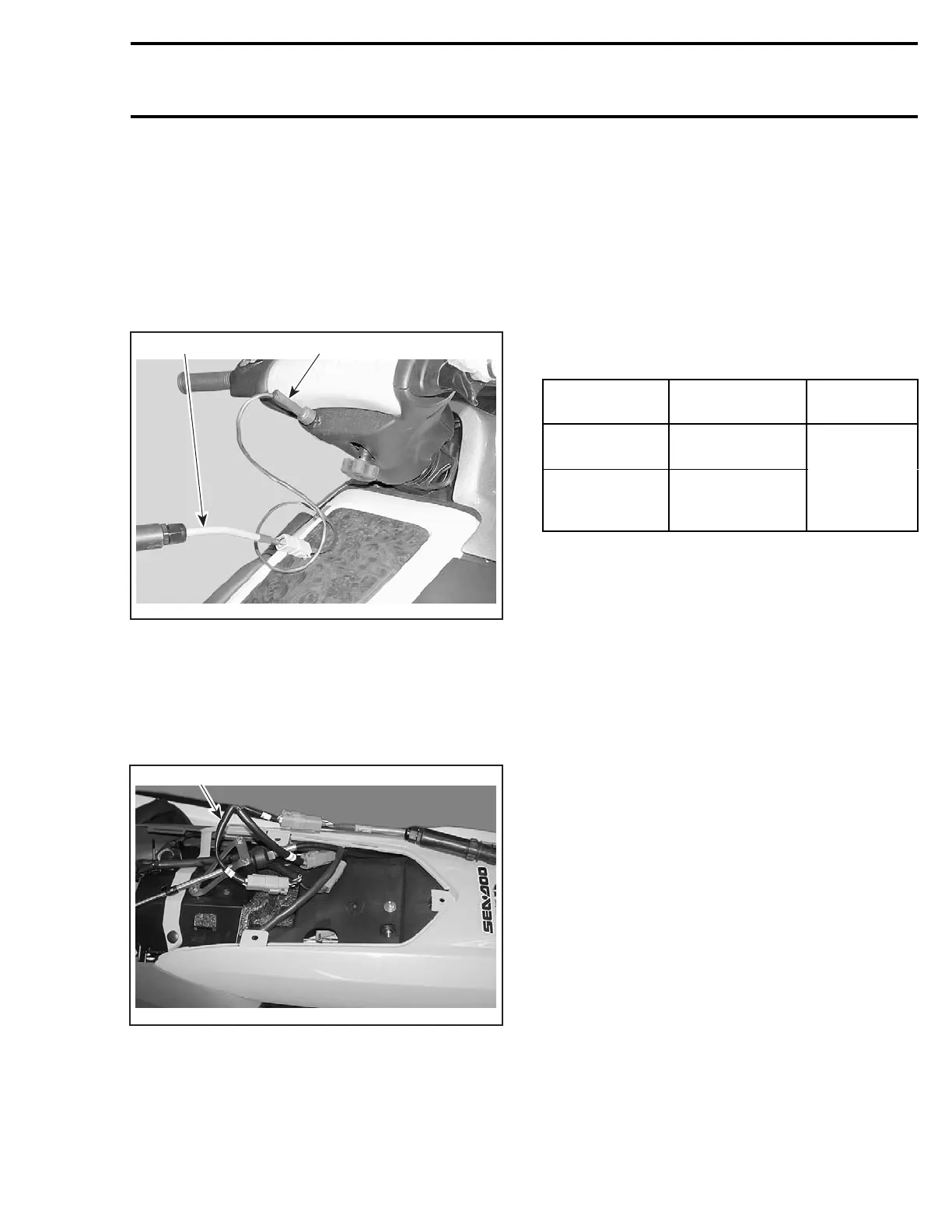

Connect VCK components and open the software
B.U.D.S.
2
F12H0BA
1
TYPICAL
1. 6-pin adapter (P/N 529 035 679)
2. DESS adapter (P/N 529 035 684)
NOTE: It is also possible to disconnect the con-
nector located under the top cover of steering pole
and install the RFI DESS adapter (P/N 278 001
978).
1
F22R07A
1. RFI DESS adapter
After all connections are done, connect the safety
lanyard to the DESS post to activate the commu-
nication.
IMPORTANT: When using the software B.U.D.S.,
ensure that the protocol matching the connec-
tion used is properly selected in “MPI” under
“Choose protocol” as per the following chart.
TYPE OF
CONNECTION
ADAPTER TO
USE
PROTOCOL
TO CHOOSE
Through DESS
post
DESS adapter
(P/N 529 035 684)
Through
6-pin DESS
connector
RFI DESS adapter
(P/N 278 001 978)
DESS
smr2004-3D 49
