Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

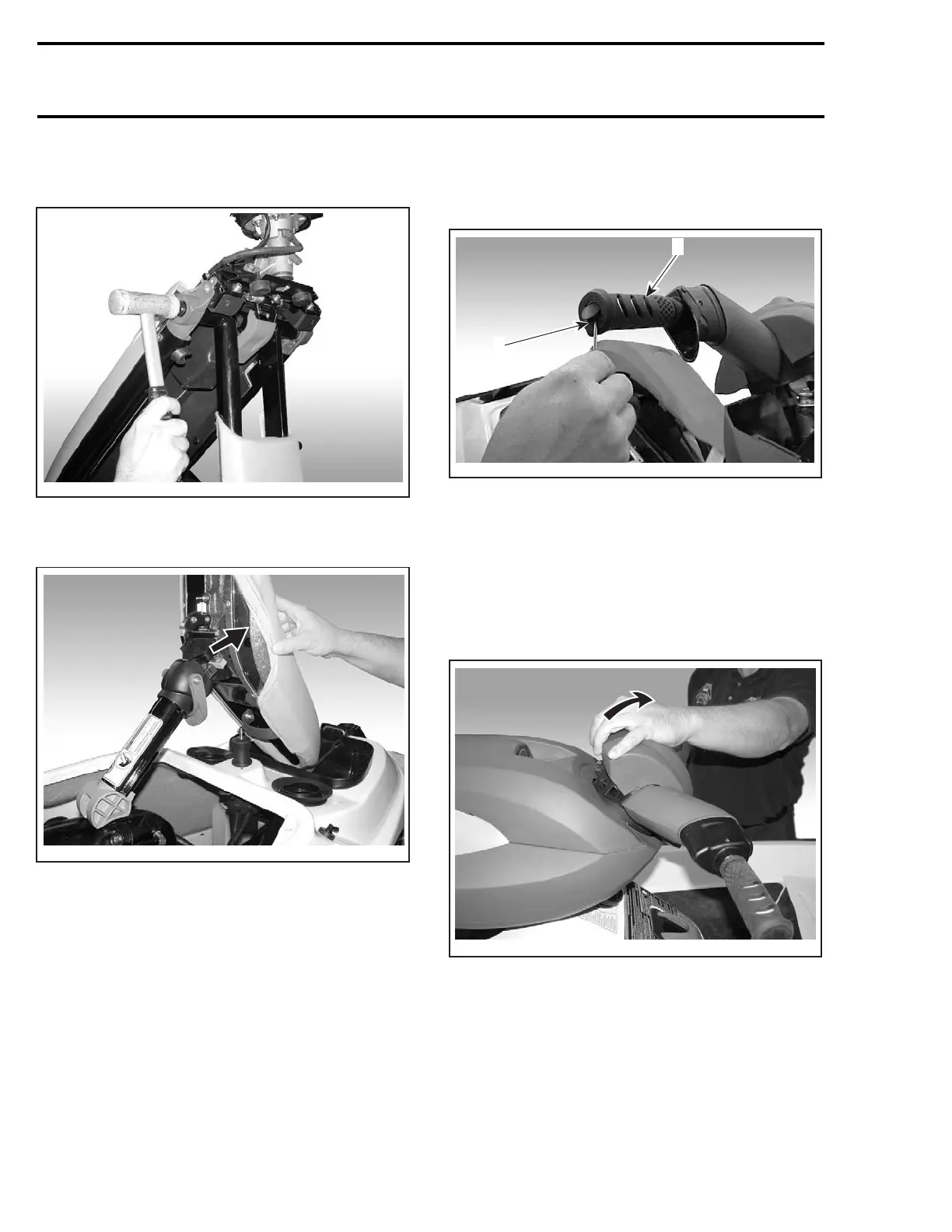

Using a plastic hammer, push moto seat axle no. 2
out while holding seat.
F22K0HA
Post
Partially peel seat cover to expose screw no. 4.
F22K0JA
Remove screw and pull out post no. 5.
Handle Grip and Grip Insert
To remove handle grip no. 7, pull out cap no. 8 and
remove screw no. 9.
F22K0KA
1
2
1. Handle grip
2. Remove cap and screw
Pull out grip and remove grip insert from handlebar
no. 10.
NOTE: Verify grip insert for damage.
Steering Cover
Pull up steering padding no. 6.
F22K0LA
64 smr2004-3D
