Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

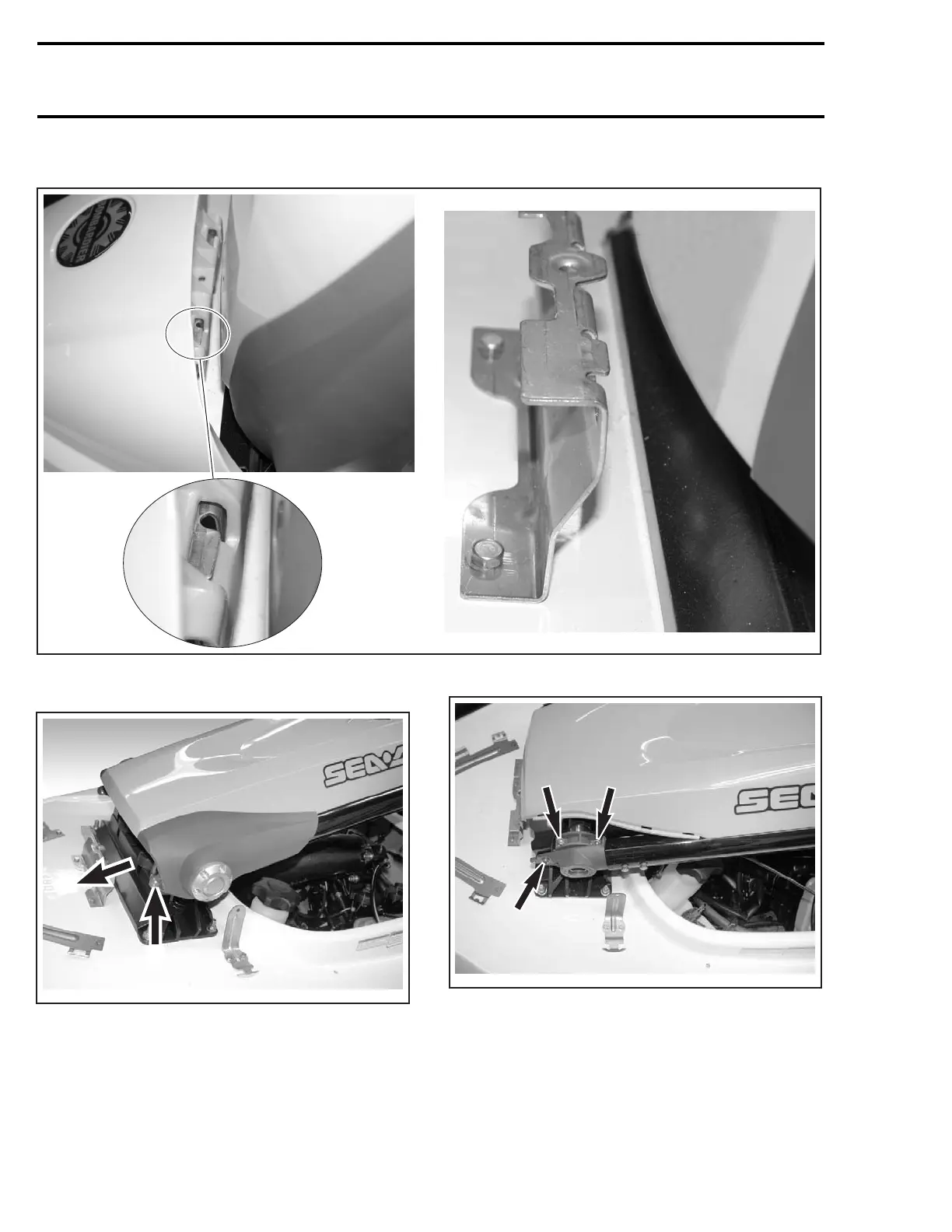

For the center rear locks, push plastic tabs rearward to release.
F22K1JS
Unscrew side and bottom screws then slide caps
no. 32 forward to remove.
F22K1OA
1°
2°
NOTE: It is suggested to hook-up steering pole to
the ceiling to hold it while removing from vehicle
and particularly while removing steering cable.
Remove end screws and clamp screws no. 33.
F22K1PA
Maintain steering pole vertically and
pull steering
cable out.
Remove steering pole from body.
Remove bridge mount no. 34 from body.
72 smr2004-3D
