Secutron MR-2320 Series User Manual

13

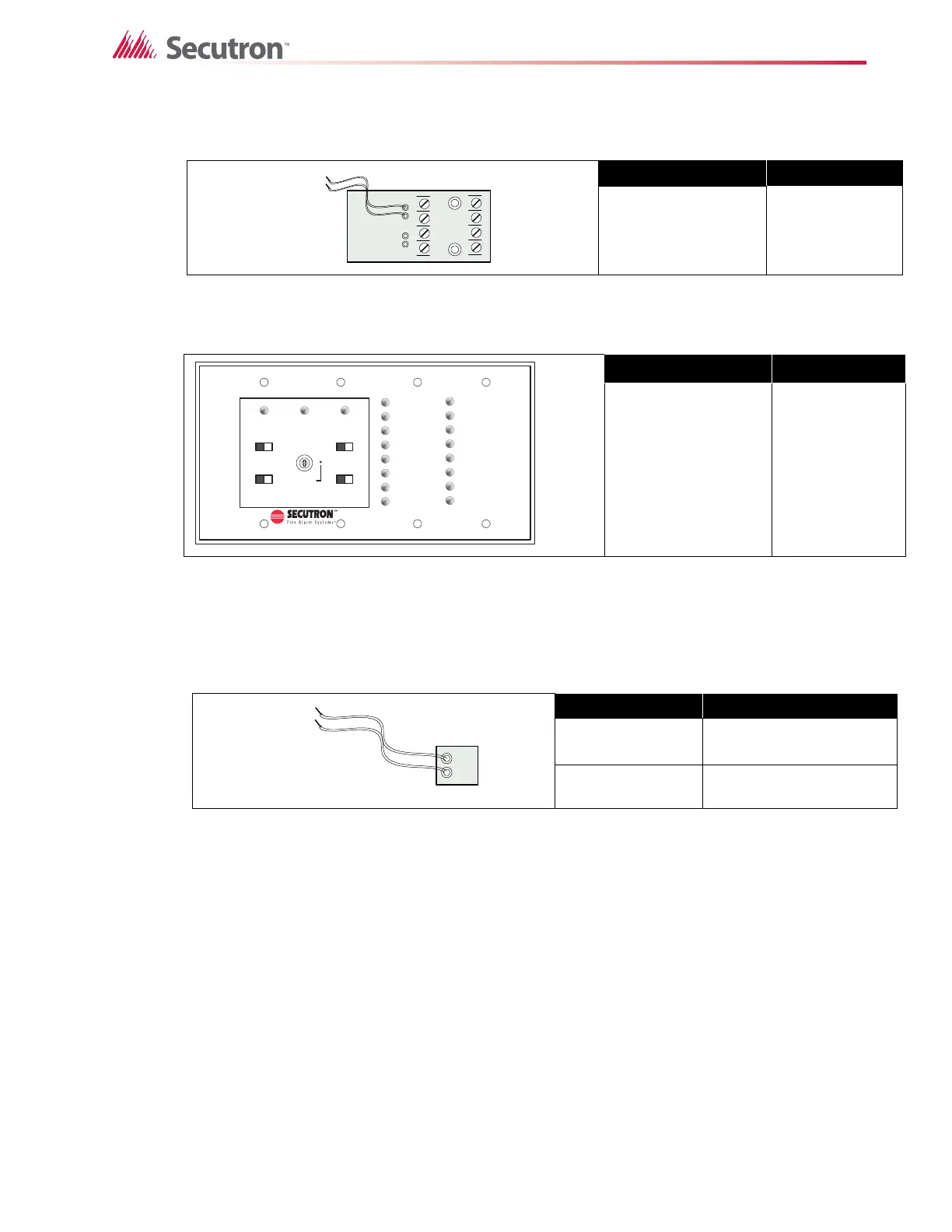

System Components
3.6 Output Class A Converter: Two Circuits
3.7 MR-2312-ATW Remote Annunciator
3.8 Active end-of-line
The ELRX-300R(W) are power-saving End-of-Line resistors that eliminate the need for an
additional battery cabinet or larger batteries in order to meet the 60 hour standby requirement.
Additional System Accessories
Model: MR-2306-ATR/W Eight Zone Remote Annunciator (ULC and ULI Approved)
Model: MR-2300T Remote Trouble Indicator (ULC and ULI Approved)
Model: MR-2316-AT Remote Annunciator
Model: MR-2316-AT Remote Annunciator (ULC and ULI Approved)
Model: MP-300 EOL resistor plate, 3.9KΩ (ULC and ULI Approved)
Model: MP-300R EOL resistor plate, red (ULC Approved)
Model: BC-160 External Battery Cabinet (ULC and ULI Approved)
Model: MP-320R/W Solenoid EOL Module
Model Description
MR-2300-NC2
Output Class A
converter
module (two
circuits)
Model Description
MR-2312-ATW
16 Zone remote
annunciator
Model Description
ELRX-300
Active end-of-line resistor
without plate
ELRX-300R
Active end-of-line resistor
with end-of-line red plate
- SIG1 OUT+- SIG2 OUT+
- SIG1 RET +- SIG 2 RET+
BLK RED
BLK RED
A.C.
ON
COMMON
TROUBLE
SIGNA L
SILENCE
BUZZER
SILENCE
SIGNA L
SILENCE
LAMP
TEST
SYSTEM
RESET
SWITCH
ENABLE
FIRE ALARM
ANNUNCIATOR
BLACK
RED
