8.8 Evacuation codes

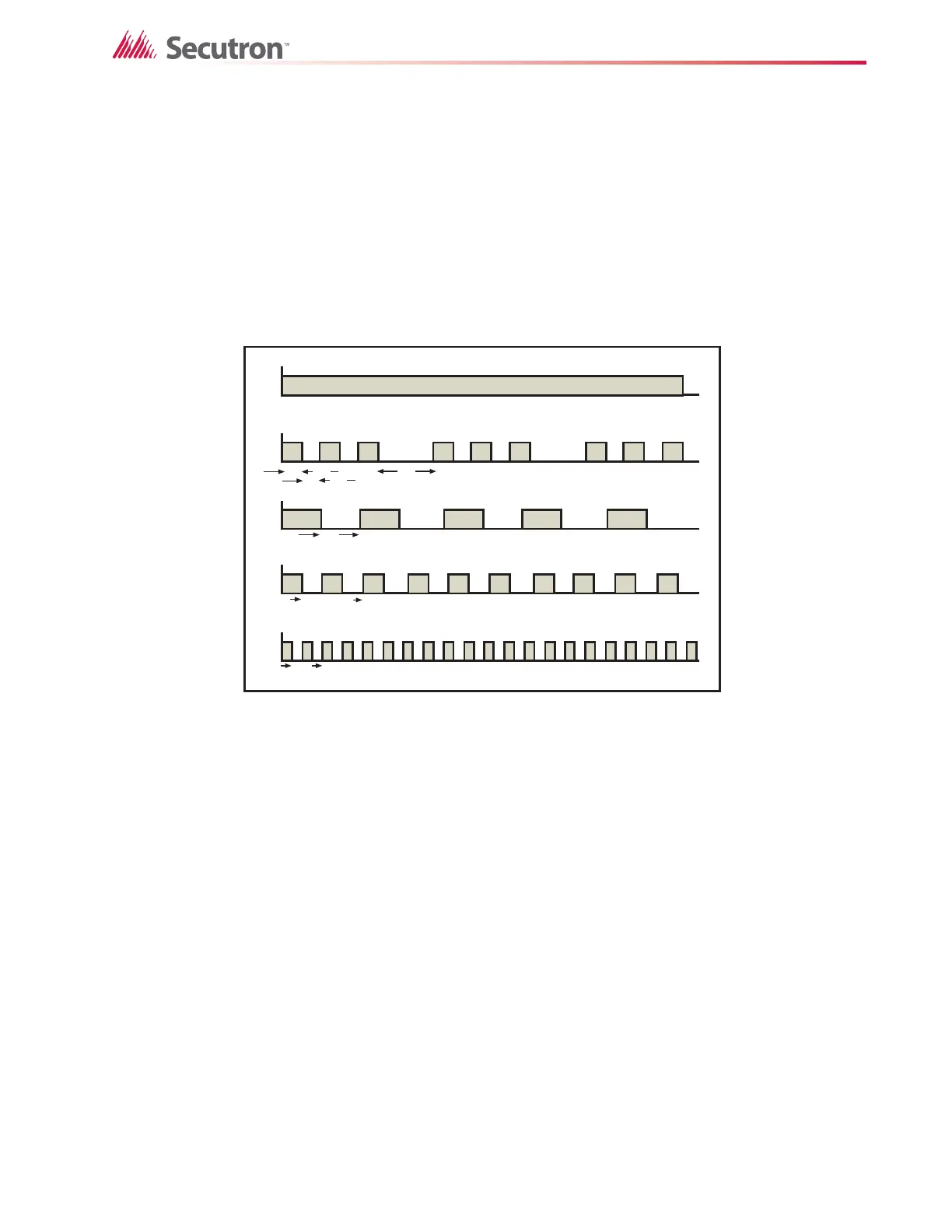

Figure 20 Evacuation and Alert Codes
Continuous On 100% of the time
Temporal Code 3 of 0.5 second on, 0.5 second off then, 1.5 second pause
20 BPM 1.5 seconds on, 1.5 seconds off
60 BPM 0.5 second on, 0.5 second off
120 BPM 0.25 second on, 0.25 second off
CONTINUOUS
TEMPORAL CODE
0.5s
1.5s 1.5s
0.5s
0.25s 0.25s
0.5s
0.5s
1.5s
20 BPM
60 BPM
120 BPM
