Field Wiring
6.3 Indicating Circuit Wiring
The MR-2320 Series Fire Alarm supports Class B or Style Y and Class A Style Z wiring for its
indicating circuits. Each circuit is supervised by a 3.9KΩ EOL resistor or active EOL module.
Each indicating circuit provides up to 1.7 A, 5 A maximum total if no auxiliaries are used.

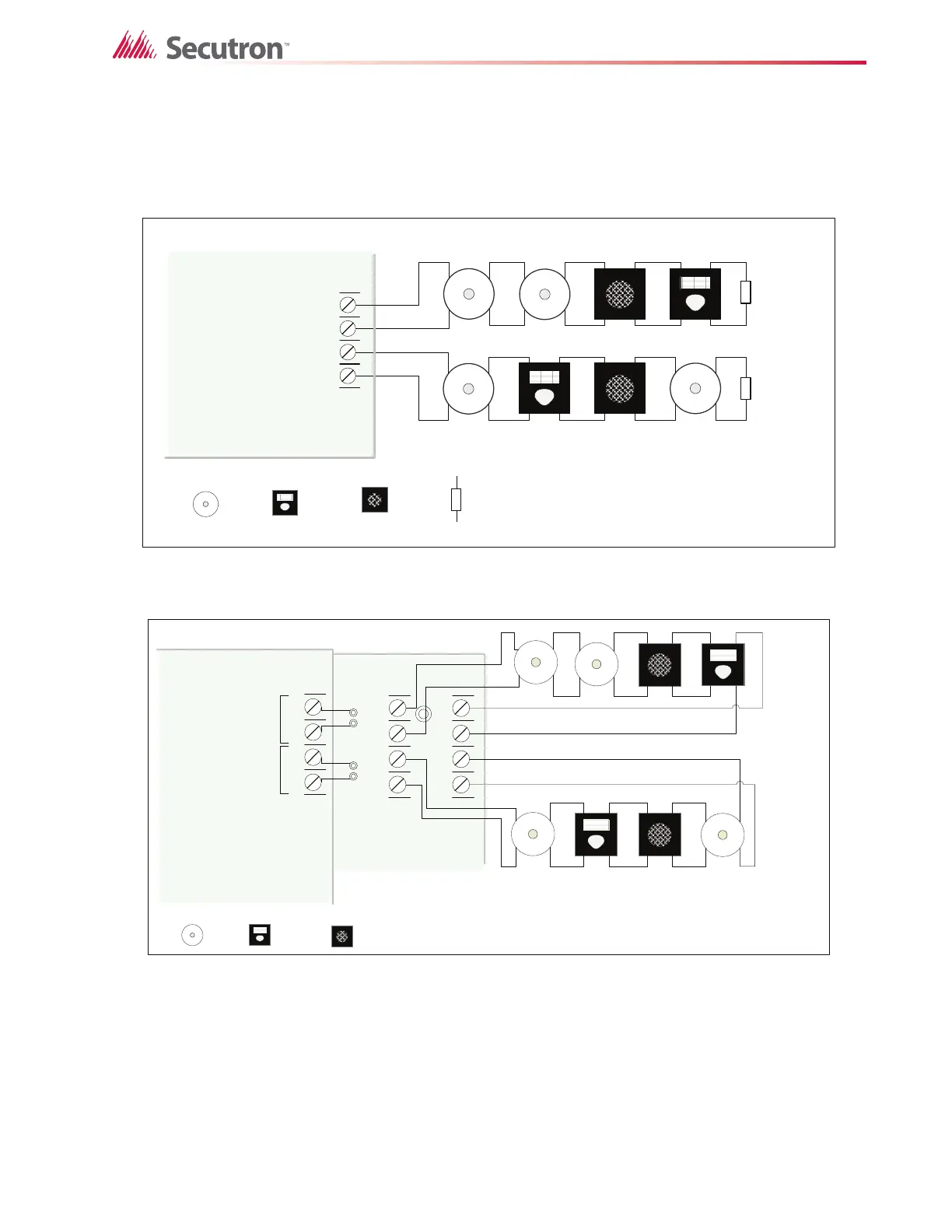

Figure 12 Indicating circuit – Class B or Style Y wiring
Figure 13 Indicating circuit –Class A or Style Z wiring
