Seg WIC1 User Manual

2.2 Operating Concept for the WIC1
Network Cable
RJ45
RESET
WIC1
WIC1_Z04
Smart view
DiggiMEC
USB Cable
RJ45
(Rear Side)
Device connected
Ready
Shortcuts
Device Data
Smart view
Operation
Device planning
Device Para
1,0
Field Para
50/60
Protection Para
7
6
5
WIC1
Operation
Device planning
Device Para
Field Para
Protection Para
Service
File Device Edit View Settings Tools Window Help
- . - - . -
- . - - . -
- . - - . -
- . - - . -
Name Value
Protection Para/- . -
Information
4
Warning Incoming
3
Information
2
Information
1
Type
Record No.
Messages
Message
Value
?
Date of Record
27.07.2021 1... 22:56
27.07.2021 0... 0:47:28
27.07.2021 0... 9:44:29
27.07.2021 0... 9:44:29
SI3 Settings Changed
SW2 Run Mode
SI2 Device Restart
SI1 Firmware Update
1
Not OK
1
1
...
- . - - . -
- . - - . -
- . - - . -
- . - - . -
- . -
- . -
- . - - . -
- . - - . -
Name
- . -
Protection Para/- . -
- . -
- . -
- . - - . -
- . -
- . -
- . -
- . - - . - - . - - . -

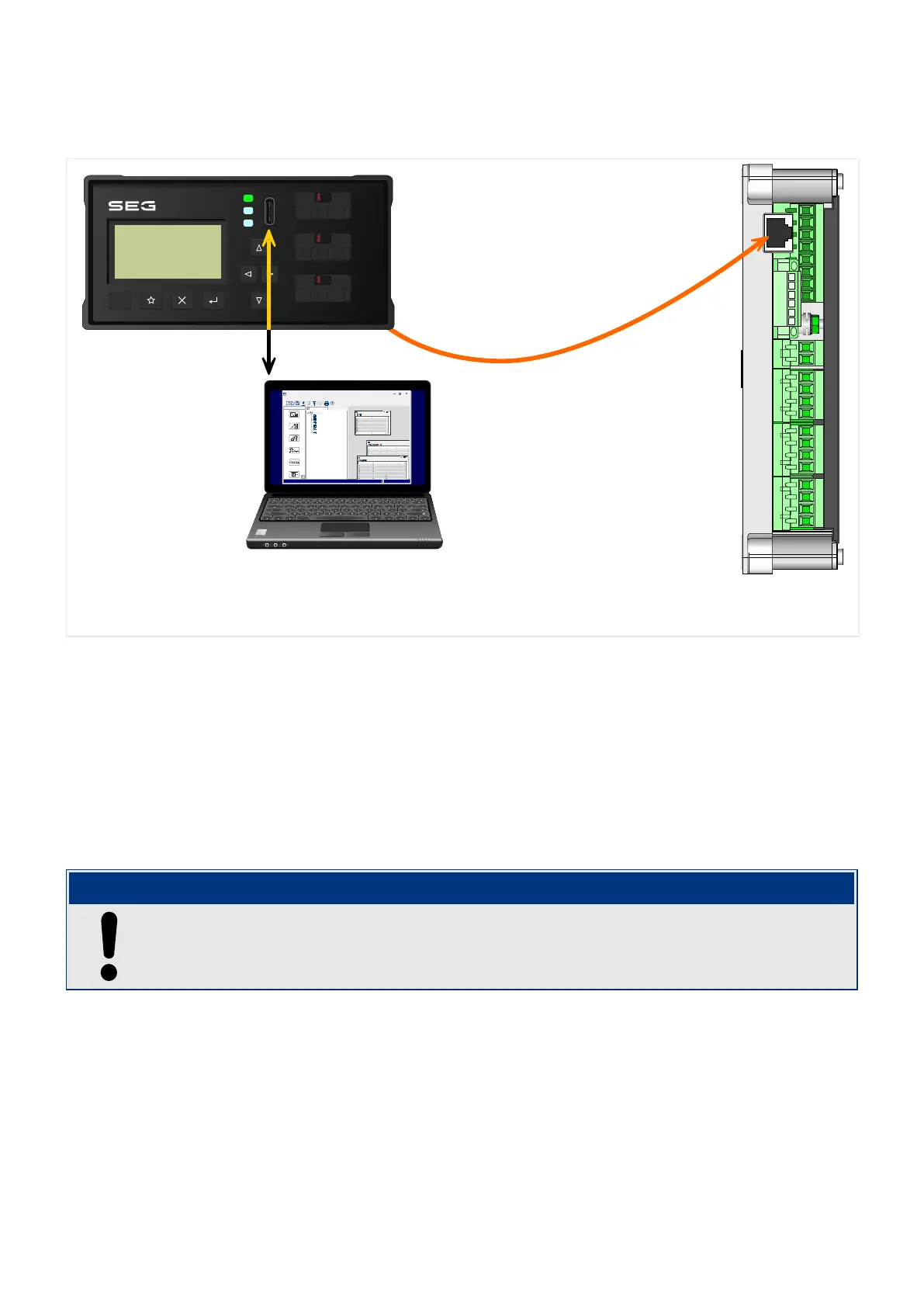

Fig. 3: Connection possibilities of a WIC1 with a DiggiMEC and a PC.
As a combination of a compact protection relay and related core-type transformer, the WIC1
has been developed especially for compact MV switchboards with circuit breakers.
The intuitive operating concept with plausibility checks and easy commissioning functions
allows a safe and time-optimized maintenance and commissioning. The WIC1 can be
(optionally) connected to the interface device DiggiMEC, which adds an LCD display, keys
and some 󰊠ag indicators with output relays.
The DiggiMEC can be connected to a Windows PC, so that the parameter setting and
evaluation software Smart view can be used to con󰊟gure the WIC1 and to retrieve
measurement values and fault data from the WIC1. (See also ╚═▷ “2.7.1 Smart view”.)
NOTICE!
The
DiggiMEC is always usable only with a connected WIC1 (independent of whether
there is any supply via the USB interface of the DiggiMEC).
