Seg WIC1 User Manual

3.7.3
Impulse Signal for the Flag Indicator
A 󰊠ag indicator can be connected to terminals FI+/FI− (WIC1‑4: Out+/Out−) of the terminal
block X4, e. g. for a power-safe signaling of a trip.
The energy is provided by a capacitor store integrated in the WIC1 protection relay. The
length of the trip impulse is approx. 50 ms, the pause between the individual pulses depends
on the impedance of the 󰊠ag indicator and the current level. Pulsing is continued until the
assigned signal drops o󰊞.
Technical Data for the Setting Pulse
• Energy: E ≈ 0.01 Ws•
• Voltage: V ≈ 24 VDC•
CAUTION!
It is not allowed to connect any continuous / active voltage to the setting contact or to
the reset contact of the 󰊠ag indicator!
Any continuous voltage can destroy the coil that is built into the 󰊠ag indicator.
For a WIC1‑4, in particular, it is not permissible to connect a 󰊠ag indicator and set the
operating mode of the output to “output relay” (see ╚═▷ “Relay Output (WIC1‑4)”).
FI assign.
wiProtGeneral_Y08
Output “FI−”
&
Energy Storage FI
Output “FI+”
Device has enough energy for FI pulse
50 ms
1
t
Prot .
FI assign.
no assignment
1..n, Assignment List
Prot . FI assign.-I
Prot . FI Inverting
=1
&
Prot .
Out. Mode *
Impulse Output
(Flag Indicator)

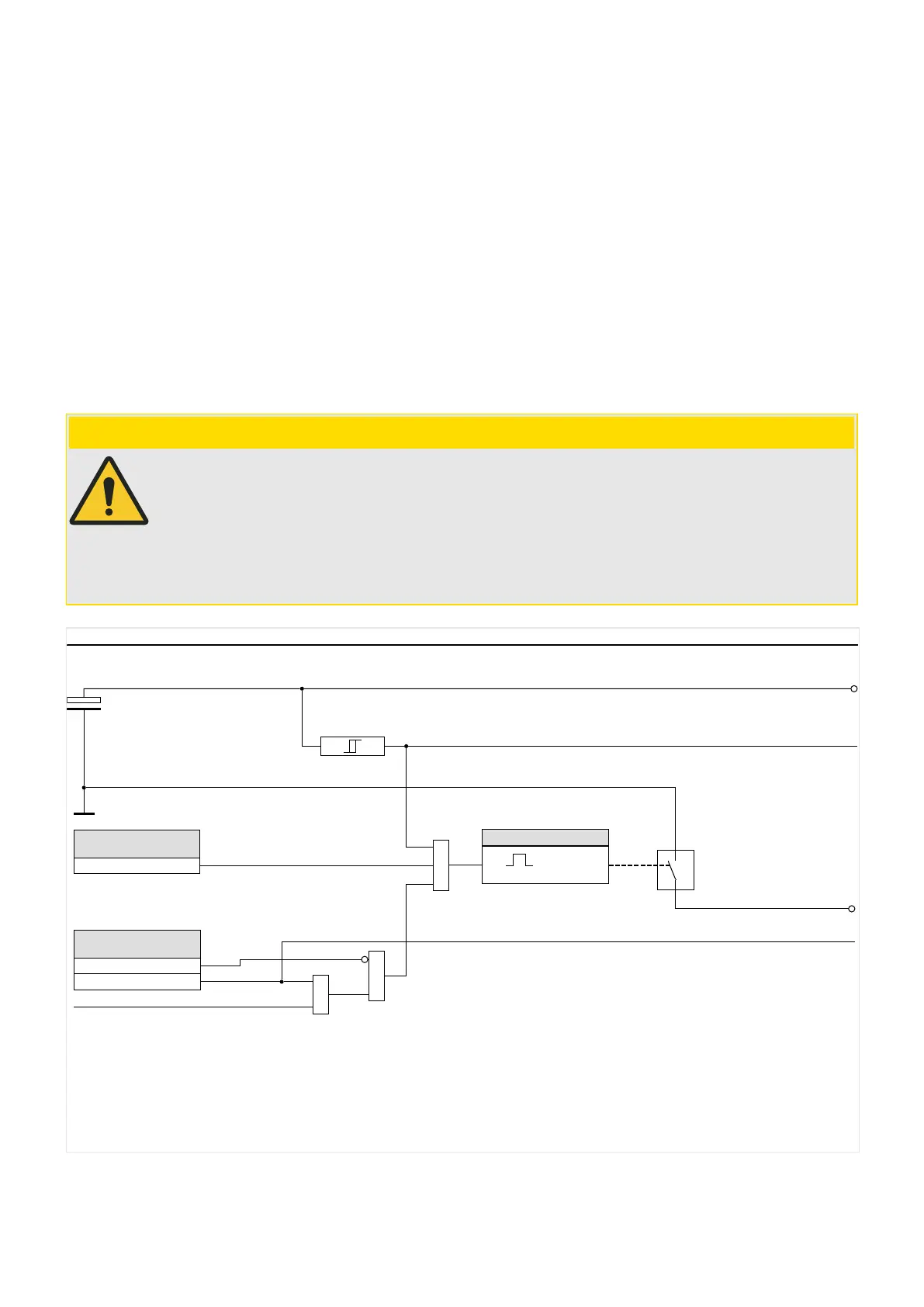

Fig. 33:
Signal assignment for 󰅱ag indicator (output “FI+/−”).
* Setting »Prot . Out. Mode« can be changed only for a WIC1‑4 with external power supply.
For all other WIC1 variants it is hidden and 󰊟xed to “Impulse Output”. See also ╚═▷ “Relay
Output (WIC1‑4)”.
92 WIC1 WIC1-1.0-EN-MAN
3 Hardware
3.7.3 Impulse Signal for the Flag Indicator
