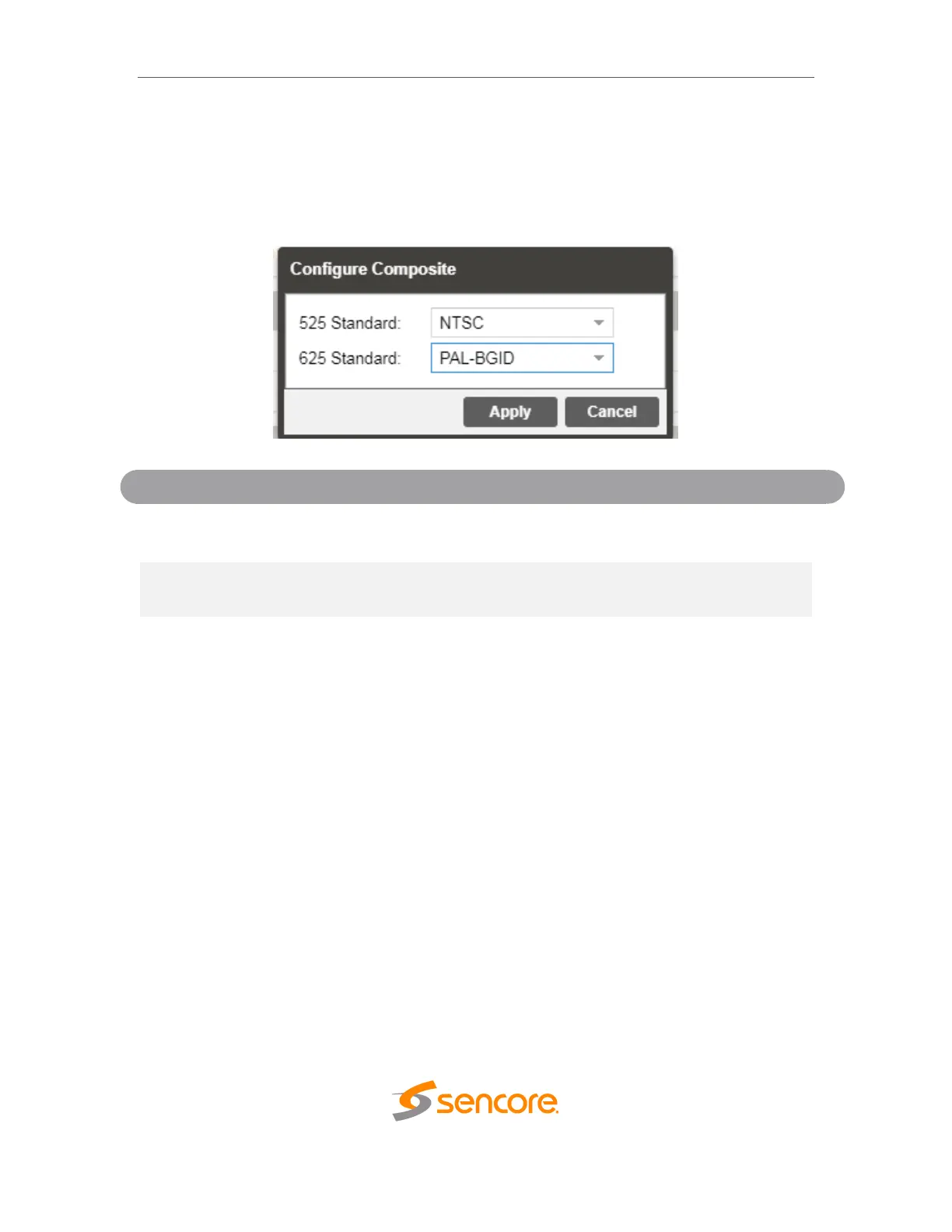

4.2.4 Configuring Composite Output
This menu allows the user to configure the composite video output of the Impulse 300D.
Color subcarriers and VBI embedding are configured in this menu. Please note that the
composite video output is only active if the output video format is SD.
Setting
Range
Description
525 Standard
NTSC
PAL-M
Select the color subcarrier used for 525 line video
formats.
625 Standard
PAL-BGID
PAL-N
Select the color subcarrier used for 625 line video
formats.
