ADN Digital Conference System | 37
Putting the conference system into operation

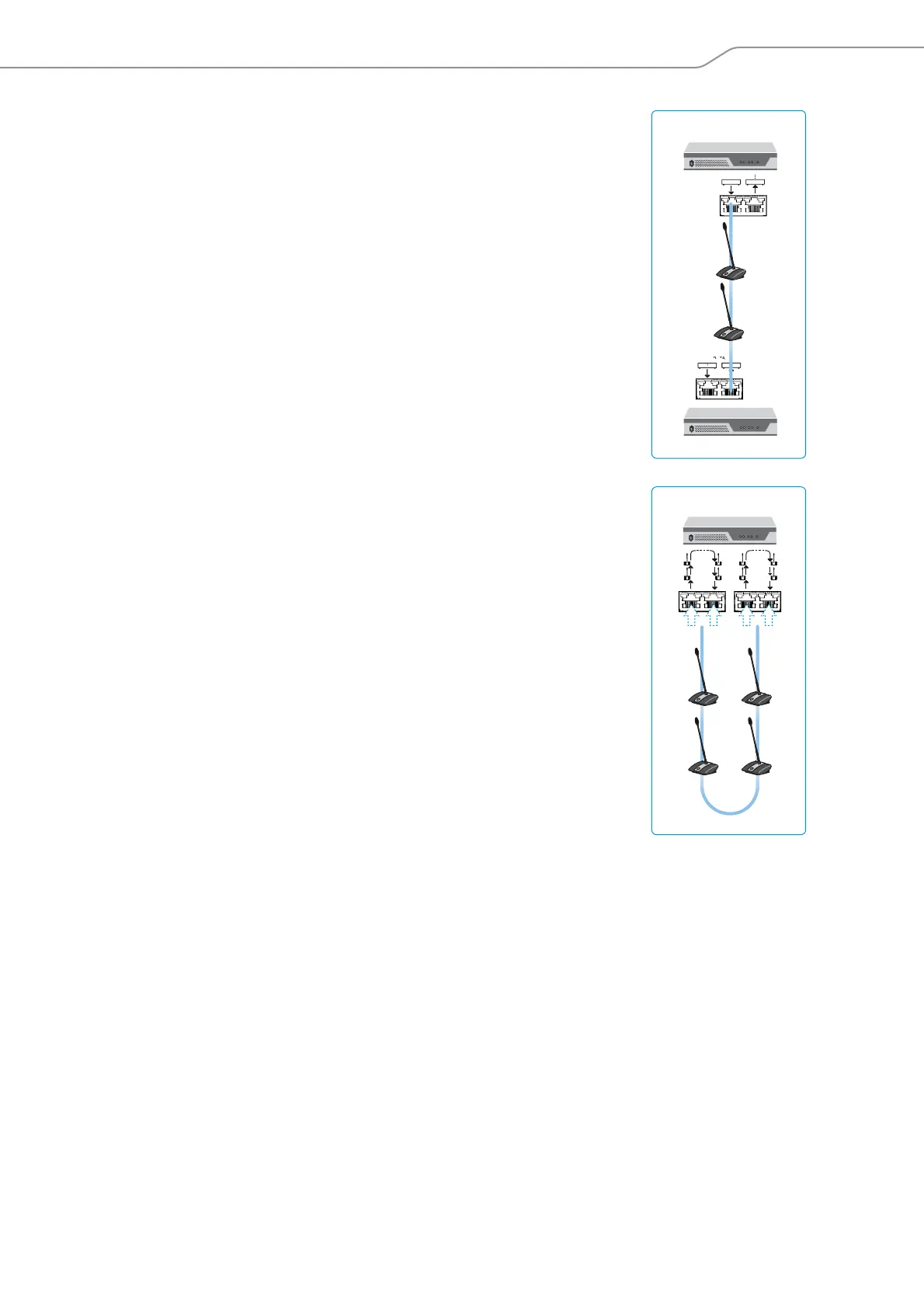

Conference units connected
to the DATA socket of the
ADN PS power supply
Ring topology connected to
different PORT sockets of
an ADN PS power supply
No conference units must be connected to the DATA
PS output socket of an ADN PS power supply.
The error message “Error 60003 D1/C1 at PS casca-
ding port” appears on the display panel of the
ADN CU1 central unit. The display panel lights up red.
On the ADN PS power supply to which conference
units are wrongly connected, all PORT status LEDs
flash orange.
The signal light ring and the microphone LED of
the conference units flash red.
To eliminate the error:
왘 Set up the conference system correctly (see
page 32).
왘 Switch the conference system on again (see
page 41).
쐇
쐊
CU/PS
PS
DATA
CU/PS
PS
DATA
ADN PS
ADN PS
CU/P
U/P
S
S
D
D
AT
AT
A
A
A
A ring topology cannot be connected to different
PORT sockets of an ADN PS power supply.
The error message “Error 60005 Ring cabling
between port I+II” appears on the display panel of
the ADN CU1 central unit. The display panel lights up
red.
On the ADN PS power supply, the respective status
LED for the PORT I and PORT II outputs in question
flashes orange.
To eliminate the error:
왘 Set up the conference system correctly (see
page 32).
왘 Switch the conference system on again (see
page 41).
PORT I
12
PORT II
12
ADN PS
