Configuring the conference system via the central unit
56 | ADN Digital Conference System
Adjusting settings for the floor channel – “Floor/Loudspeakers”
Adjusting the processing of the conference units’ audio signals in the floor
channel – “Audio Gain Reduction”
Possible settings: “0.0 dB per Mic” ... “–3.0 dB per Mic” and “Linear Division”
The sum of the audio signals of all conference units is fed to the floor channel
(“Floor/Loudspeakers”) which in turn is output via the conference units’ built-in
loudspeakers and via the OUT audio output. The volume level of the floor channel
increases with each additional audio signal
*
and tends to overmodulate. The
“Audio Gain Reduction” menu item allows you to adjust how the volume levels of
the signals of the conference units are processed.
Menu item Function
“Floor/Loudspeakers Volume” Adjusts the floor channel volume
“Floor/Loudspeakers Equalizer” Adjusts the tone color
In the “Equalizer” menu item, you can change between the frequency
ranges by pressing the jog dial.
Press the ESC key to cancel your entry and restore the previous state of
all frequency ranges.

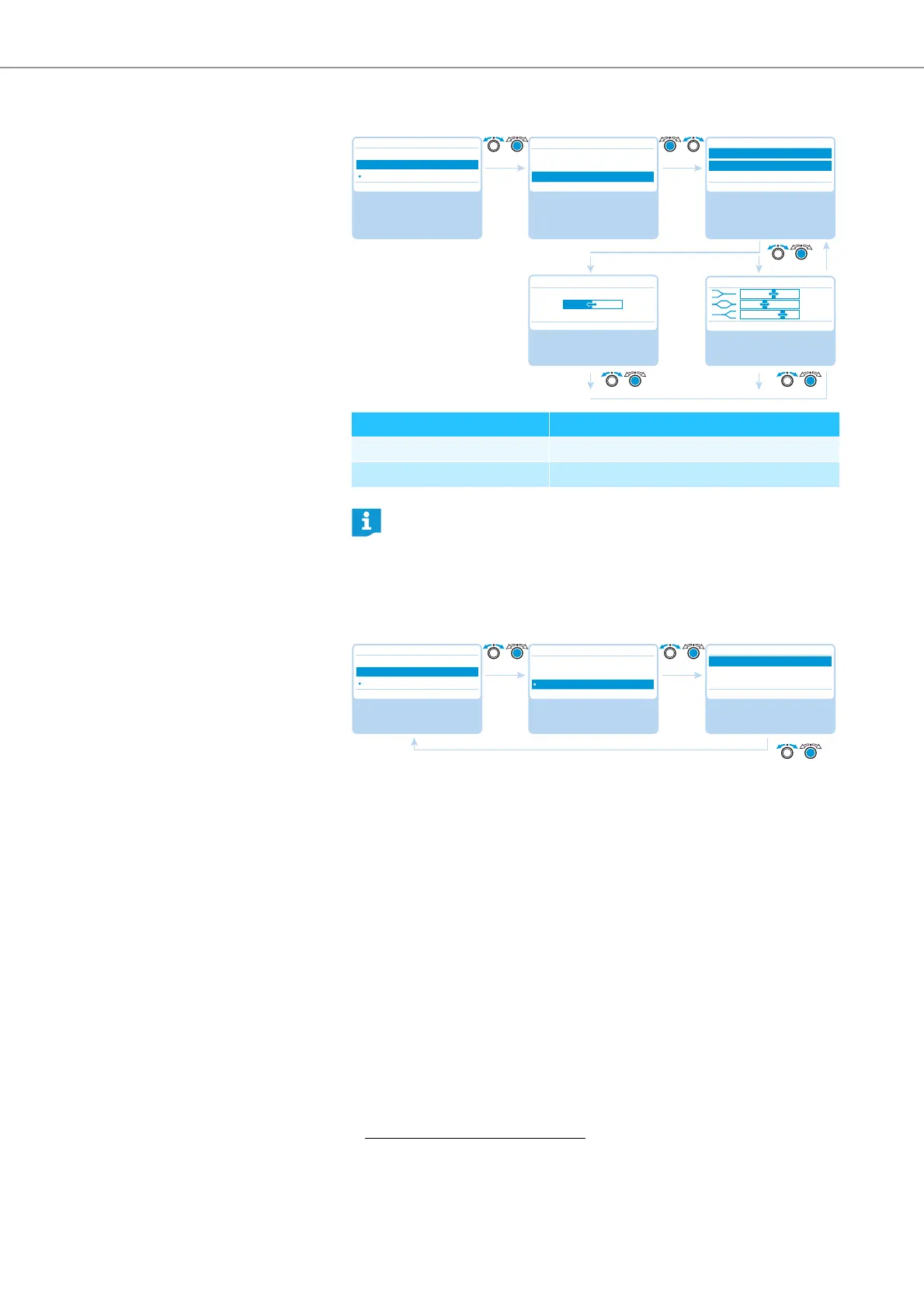

Select and call up the
“Audio Menu” submenu
Select and call up the
«Floor/Loudspeakers”
menu item
Select and call up
different menu items
Main Menu
Conference Menu
Audio Menu
System Menu
Audio Menu
XLR Out
XLR In
Floor/Loudspeakers
Floor/Loudspeakers
Floor/Loudspeaker Volume
Floor/Loudspeaker Equalizer
No No
Floor/Loudspeaker Volume
Equalizer
No No
Select the “Floor/
Loudspeakers Volume”
setting; store the setting
Select the “Equalizer”
setting; store the
setting
Conf. Mode
16
Off
16
+ 02 dB
– 03 dB
+ 05 dB
5
*
conference units and IN audio input
Select and call up the
“Audio Menu” submenu
Select and call up the
“Audio Gain Reduction”
menu item
Main Menu
Conference Menu
Audio Menu
System Menu
Audio Menu
XLR In
Floor/Loudspeakers
Audio Gain Reduction
Audio Gain Reduction
- 0.0 dB per Mic
- 0.5 dB per Mic
- 1.0 dB per Mic
- 0.0 dB per Mic - 0.0 dB per Mic
Select the desired
setting; store the
setting
