SEW-Eurodrive MOVIMOT flexible MMF1 C/DBC Series User Manual

5
Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
108

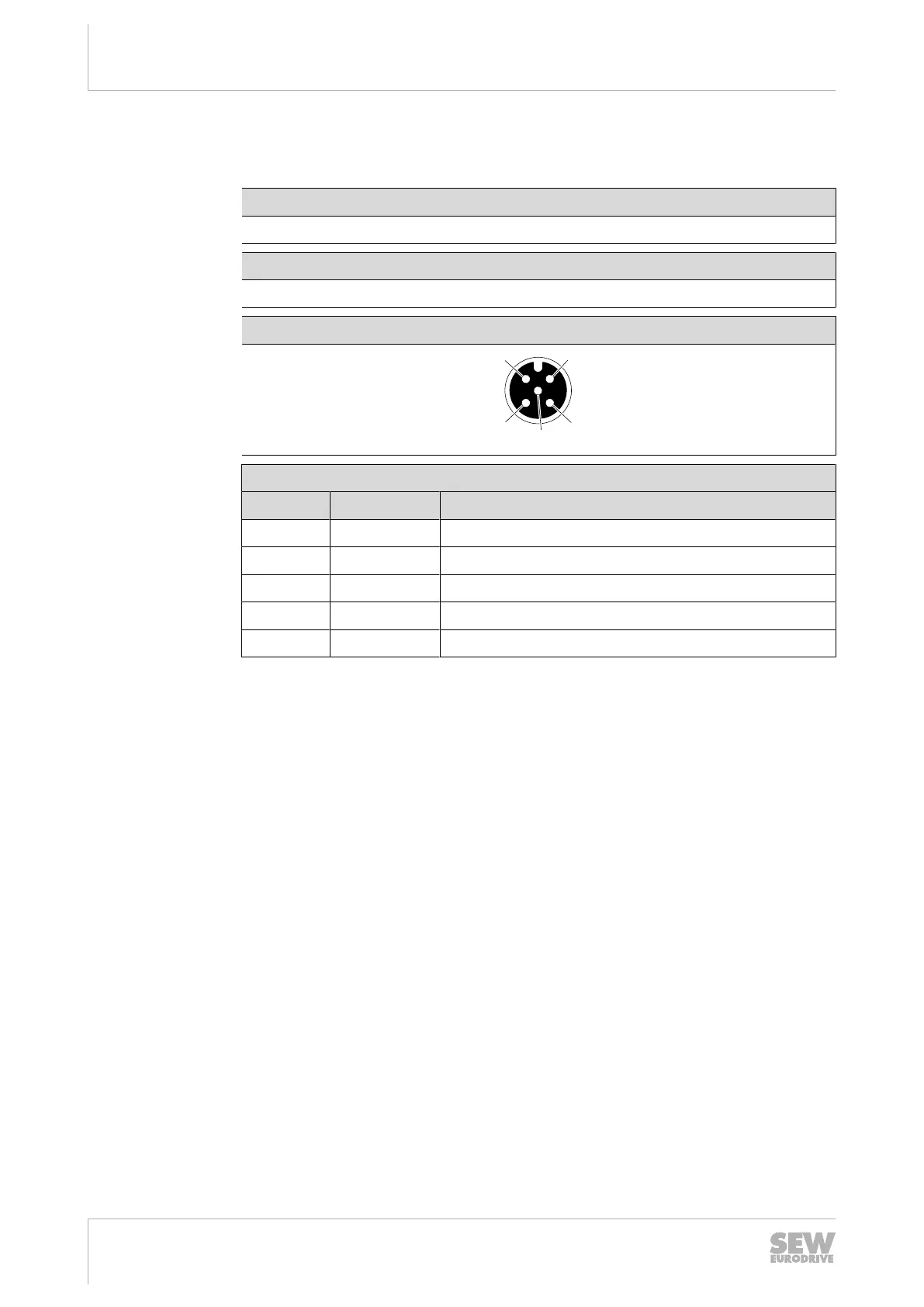

5.11.6 X4141: Engineering interface
The following table shows information about this connection:
Function
Engineering interface (CAN)
Connection type
M12, 5‑pin, female, A‑coded, color: black
Connection diagram
1
4
3
2
5
Assignment
Contact Signal Description
1 Res. Reserved
2 24V_OUT DC24V auxiliary output
1)
3 0V24_OUT 0V24 reference potential
1)
4 CAN_H CAN High connection
5 CAN_L CAN Low connection
1) Only use this output to supply components by SEW‑EURODRIVE.
29129451/EN – 12/2019
