5
Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
110

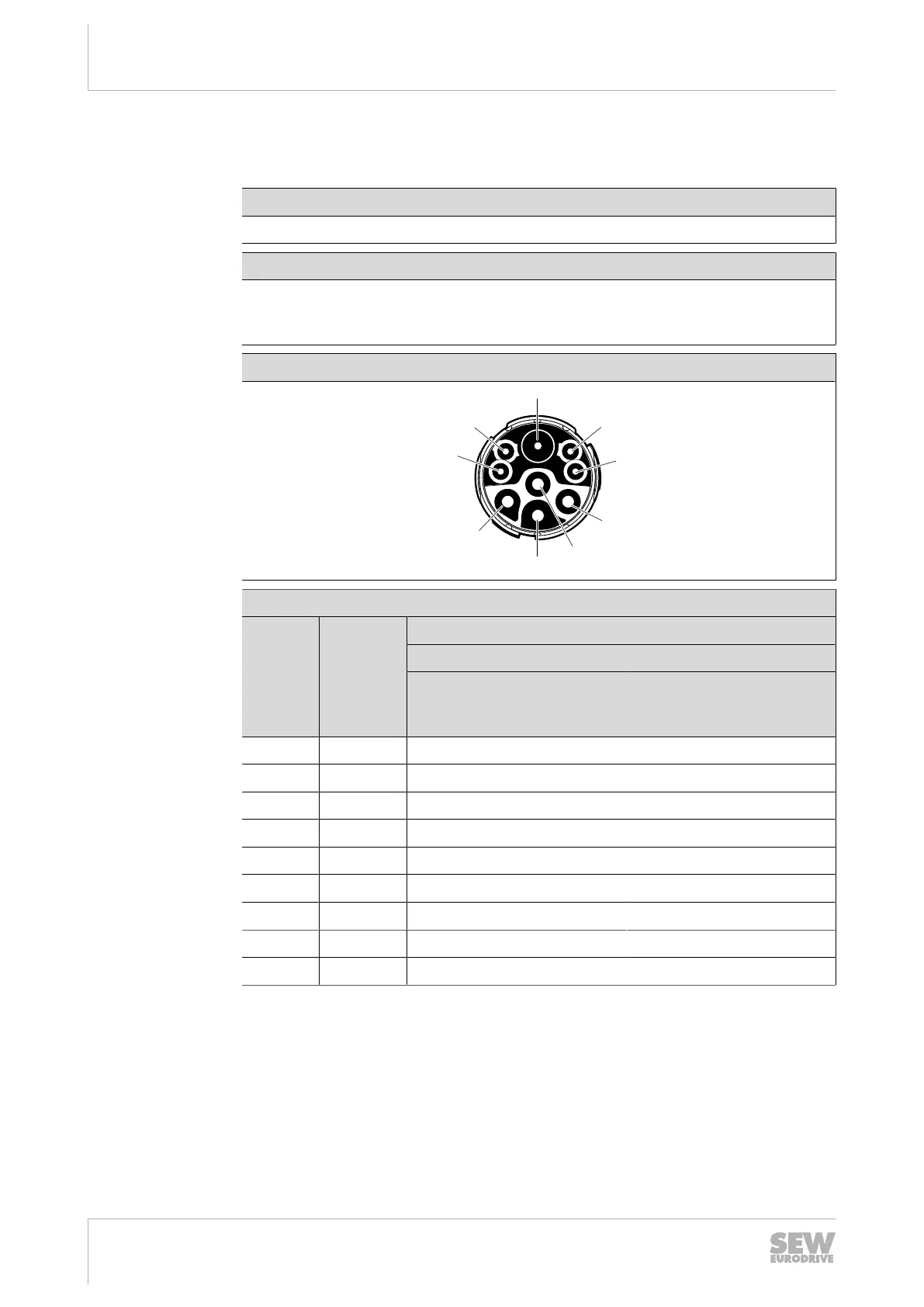

5.11.7 X2104: Inverter output for connecting motors with digital interface (MOVILINK
®
DDI)
The following table shows information about this connection:
Function
Inverter output for connecting motors with digital interface (MOVILINK
®
DDI)
Connection type
M23, female, union nut with female thread, TE Connectivity - Intercontec Products,
series 723, SEW insert, SpeedTec equipment, coding ring: without, protected against
contact
Connection diagram
V
D
W
PE
C
U
DDI
A
B
Assignment
Contact Signal Description
Connection depending on brake control
Standard design
for 2-wire and 3-wire brakes
AC110–500V
Design with brake rectifier
24V (/BGx) for 2-wire
brakes
U U Motor connection, phase U
V V Motor connection, phase V
W W Motor connection, phase W
PE PE PE connection
1 DDI MOVILINK
®
DDI
A Brake A Reserved Brake connection-
B Brake B Brake connection 15 Reserved
C Brake C Brake connection 13 Reserved
D Brake D Brake connection 14 Brake connection+
29129451/EN – 12/2019
