5
Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
121

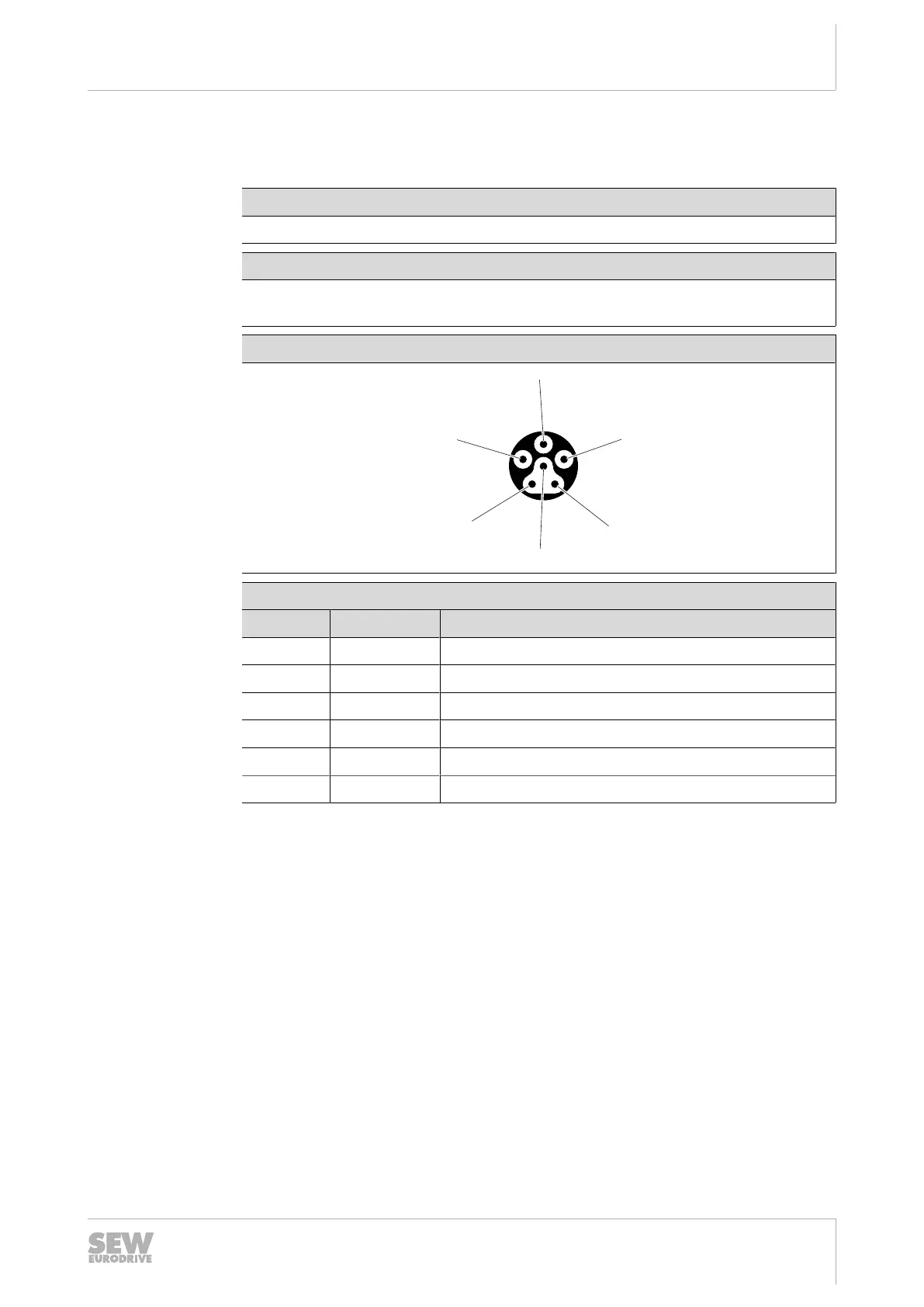

5.11.9 X1206: AC 400V connection (IN)
The following table shows information about this connection:
Function
AC 400V connection (IN)
Connection type
MQ15-X-Power, male, plug connector without union nut, MURR Elektronik, (current
load max. 16A)
Connection diagram
PE
B
1
2
3
A
Assignment
Contact Signal Description
1 L1 Line connection, phase L1 (IN)
2 L2 Line connection, phase L2 (IN)
3 L3 Line connection, phase L3 (IN)
PE PE PE connection
A Res. Reserved
B Res. Reserved
29129451/EN – 12/2019
