5
Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
flexible
127

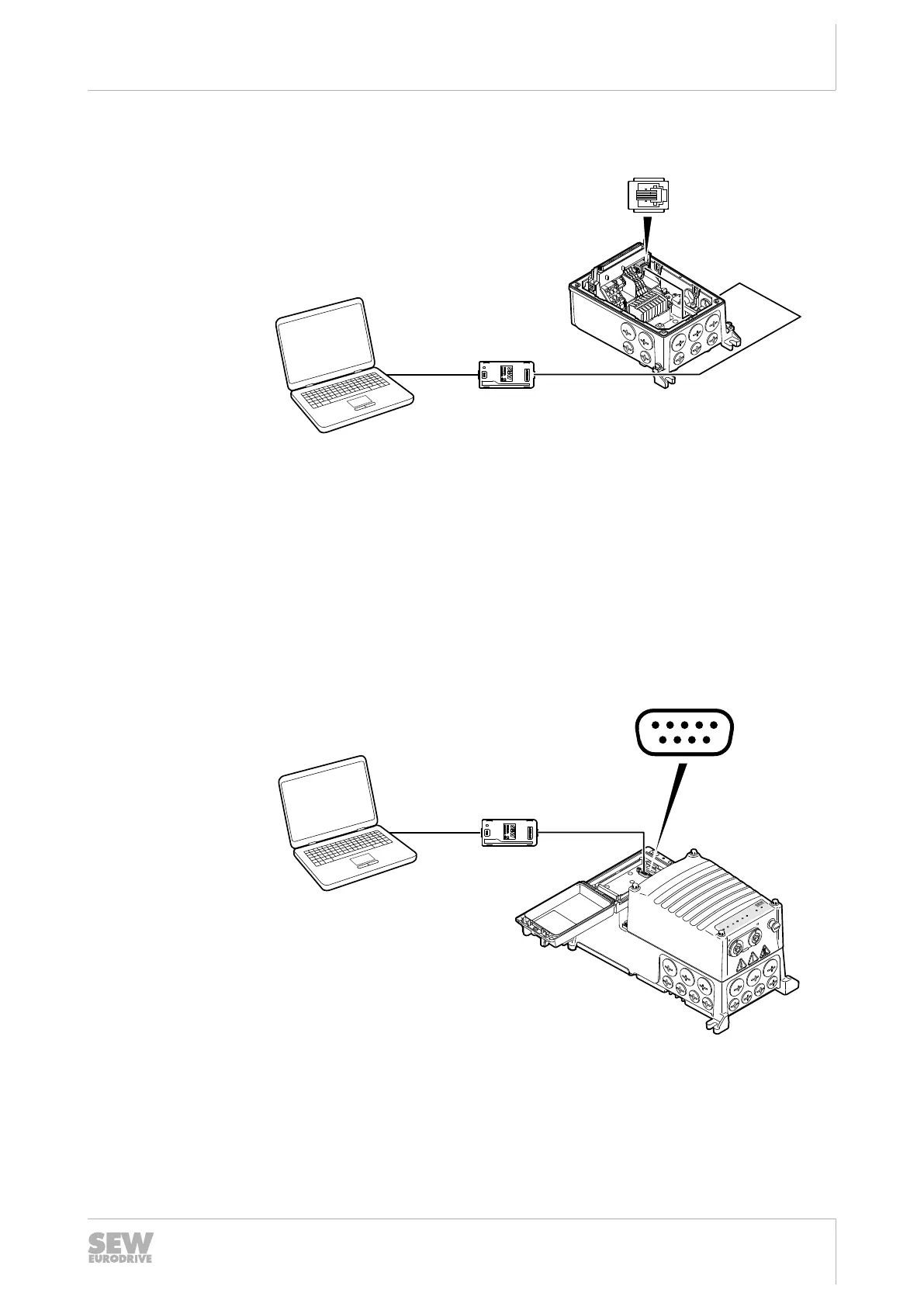

The following illustration shows how to connect the PC to the device:
25824402315
[1] USB 2.0 connection cable
(commercial, included in the USM21A interface adapter delivery)
[2] USM21A interface adapter
[3] RJ10/RJ10 connection cable (included in the USM21A interface adapter deliv-
ery)
Connection to X32 at the front module of MMF3.
The following figure shows how to connect the PC to the X32 optional engineering in-
terface at the front module of MOVIMOT
®
flexible MMF3...2.. or MMF3...3..:
[1]USB
[2]
X32
MMF3…2.. / MMF3…3..
[3]
30551451147
[1] USB 2.0 connection cable
(commercial, included in the USM21A interface adapter delivery)
[2] USM21A interface adapter
[3] RJ10/Sub-D9 connection cable
(available for delivery from SEW‑EURODRIVE, part number: 18123864)
29129451/EN – 12/2019
