5
Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
flexible
128
Connection to X4141 at the front module of MMF3.
NOTICE
Unauthorized insertion of the STO jumper plug into the engineering interface.
Damage to the device.
• Never insert the STO jumper plug into the engineering interface.

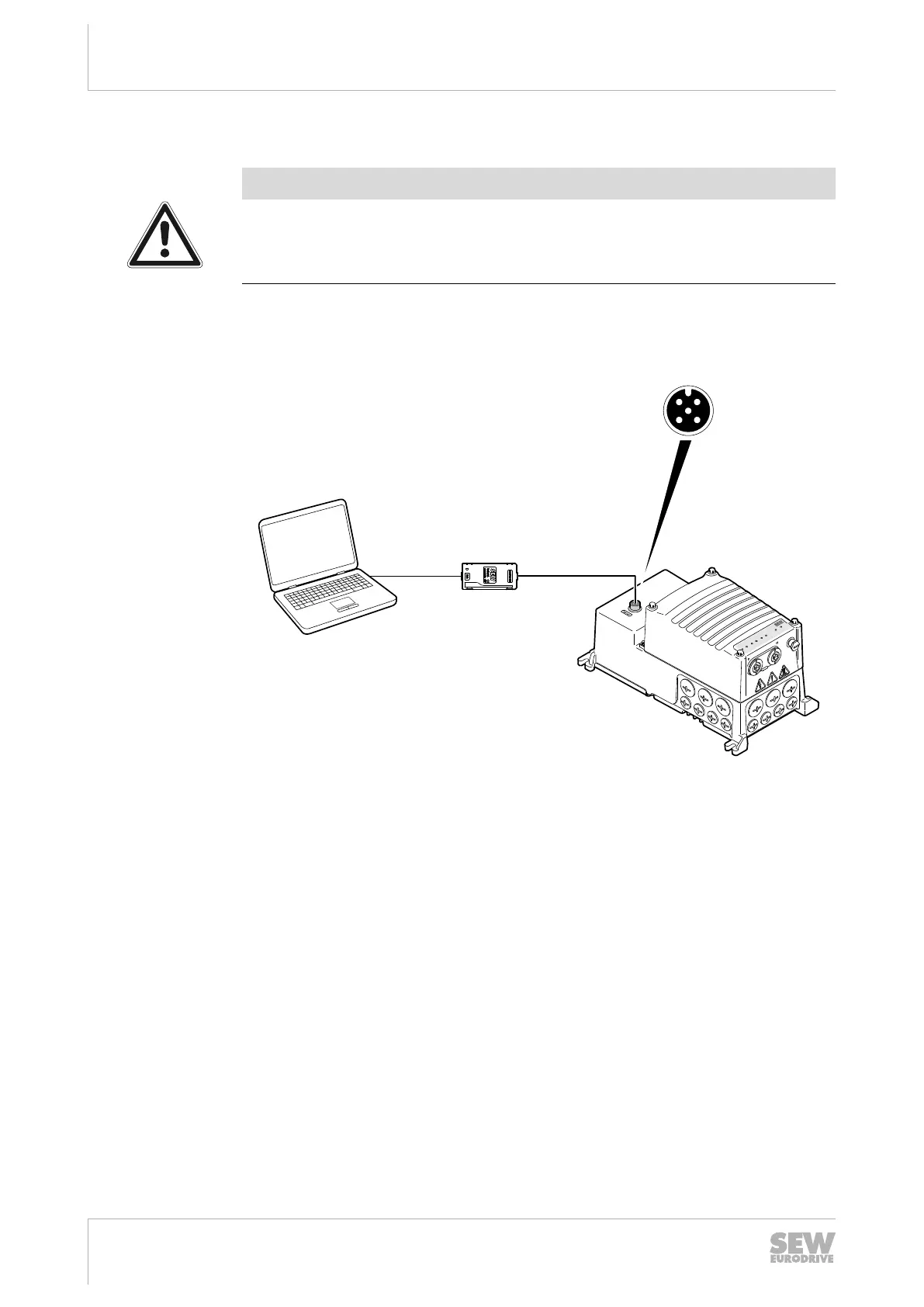

The following figure shows how to connect the PC to the X4141 optional engineering
interface at the front module of MOVIMOT
®
flexible MMF3...1..:
X4141
MMF3…1..
[1]USB
[2]
[3]
30551533963
[1] USB 2.0 connection cable
(commercial, included in the USM21A interface adapter delivery)
[2] USM21A interface adapter
[3] Connection cable RJ10/M12
(available for delivery from SEW‑EURODRIVE, part number: 28111680)
29129451/EN – 12/2019
