5
Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
flexible
131
Connection to X31 (RJ10 in the connection box)
NOTICE
Connector X31 provides a 24V supply voltage for operating the connected options.
Damage to connected options with low nominal voltage.
• Only connect options with a nominal voltage of 24V to connector X31, such as:
– Interface adapter USM21A,
– CBG.. keypad
• Do not connect the following options with 5V nominal voltage to the X31 con-
nector:
– Interface adapters USB11A, UWS11A, UWS21A
– Keypads DBG.., GBG21A.

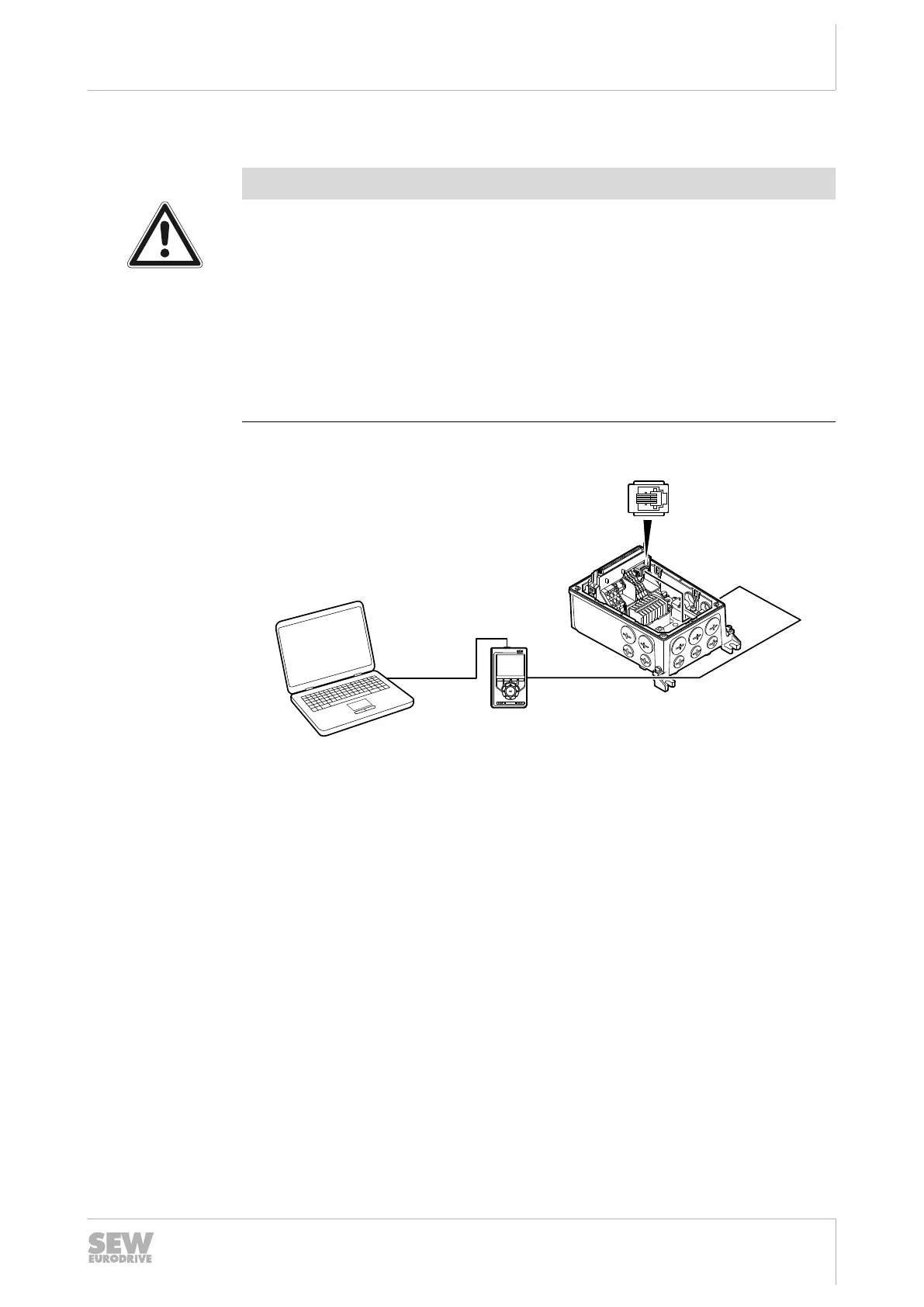

The following illustration shows how to connect the PC to the device:
X31
[1] [3]
[2]
USB
25824398731
[1] Connection cable USBA/USB2.0MiniB
(available for delivery from SEW‑EURODRIVE, part number: 25643517)
[2] CBG21A or CBG11A keypad
[3] Sub-D9/RJ10 connection cable
(available for delivery from SEW‑EURODRIVE, part number: 28117832)
