Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
flexible
130
Connection to X4141 (M12 at the connection box)
NOTICE
Unauthorized insertion of the STO jumper plug into the engineering interface.
Damage to the device.
• Never insert the STO jumper plug into the engineering interface.

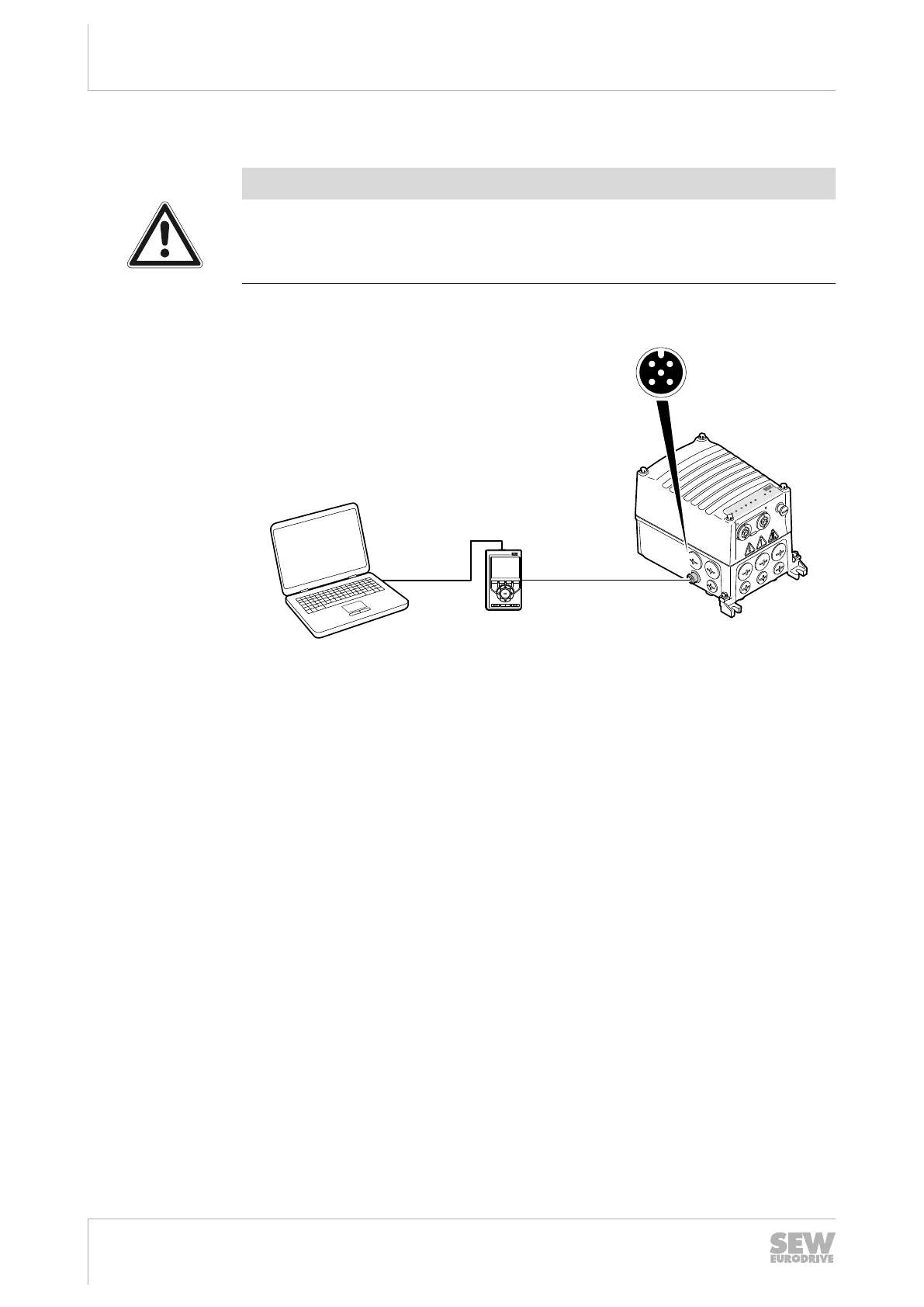

The following illustration shows how to connect the PC to the device:
X4141
[1] [3]
[2]
USB
30551620875
[1] Connection cable USBA/USB2.0MiniB
(available for delivery from SEW‑EURODRIVE, part number: 25643517)
[2] CBG21A or CBG11A keypad
[3] D-Sub/M12 connection cable
(available for delivery from SEW‑EURODRIVE, part number: 28117840)
