6.4.2 Potentiometer f1
NOTICE
Loss of the ensured degree of protection if the screw plug of the potentiometer is not
installed or not installed correctly.
Damage to the device.
• After setting the setpoint, make sure the screw plug of the potentiometer has a
seal and screw it in.
Use the f1 potentiometer to adjust speed setpoint f1.
• When the device is set to Easy mode, the predefined setpoint is always active at
the potentiometer f1.
• The potentiometer f1 can be deactivated in Expert mode. In this case, the para-
meterizable replacement value is activated as speed setpoint f1.

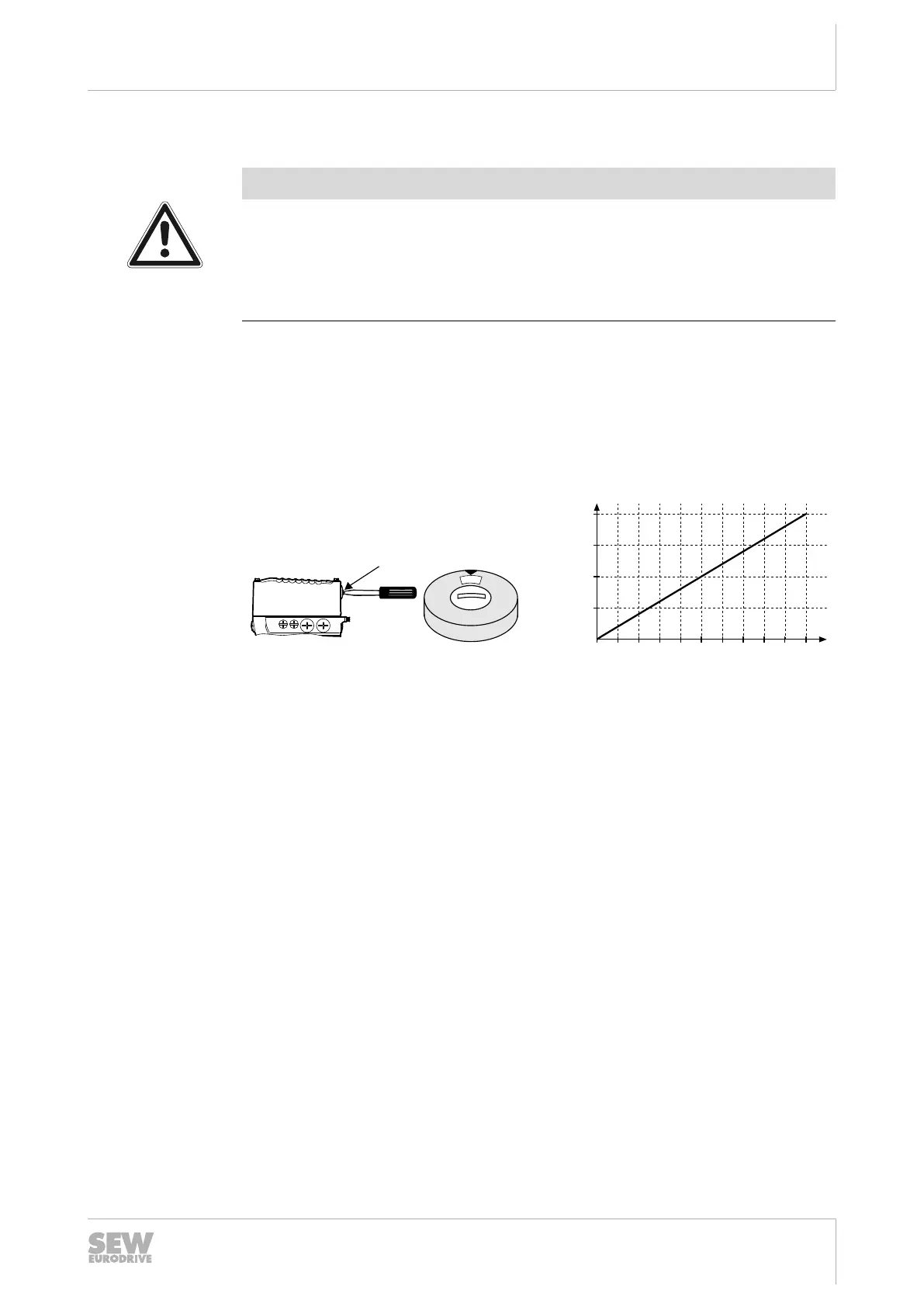

The following figure shows how to scale the speed setpoint f1 using potentiometer f1:
100
10 2 3 4 5 6 7 8 9 10
75
25
50
6
5
f1
Potentiometer setting
Speed setpoint f1
Application limit
1)
%
29011977739
1) Depending on the selected direction of rotation, the parameter Application limit –
positive speed or the parameter Application limit – negative speed are used to
scale the speed setpoint f1.
For the application limit, refer to the MOVISUITE
®
parameter tree in the following
menu: Functions > Monitoring functions > Limit values > Application limit.
