6
Startup
Control elements
Operating Instructions – MOVIMOT
®
flexible
140
6.4.3 Potentiometer f2
NOTICE
Loss of the ensured degree of protection if the screw plug of the potentiometer is not
installed or not installed correctly.
Damage to the device.
• After setting the setpoint, make sure the screw plug of the potentiometer has a
seal and screw it in.
Use the potentiometer f2 to adjust speed setpoint f2.
• When the device is set to Easy mode, the predefined setpoint is always active at
the potentiometer f2.
• The potentiometer f2 can be deactivated in Expert mode. In this case, the para-
meterizable replacement value is activated as speed setpoint f2.

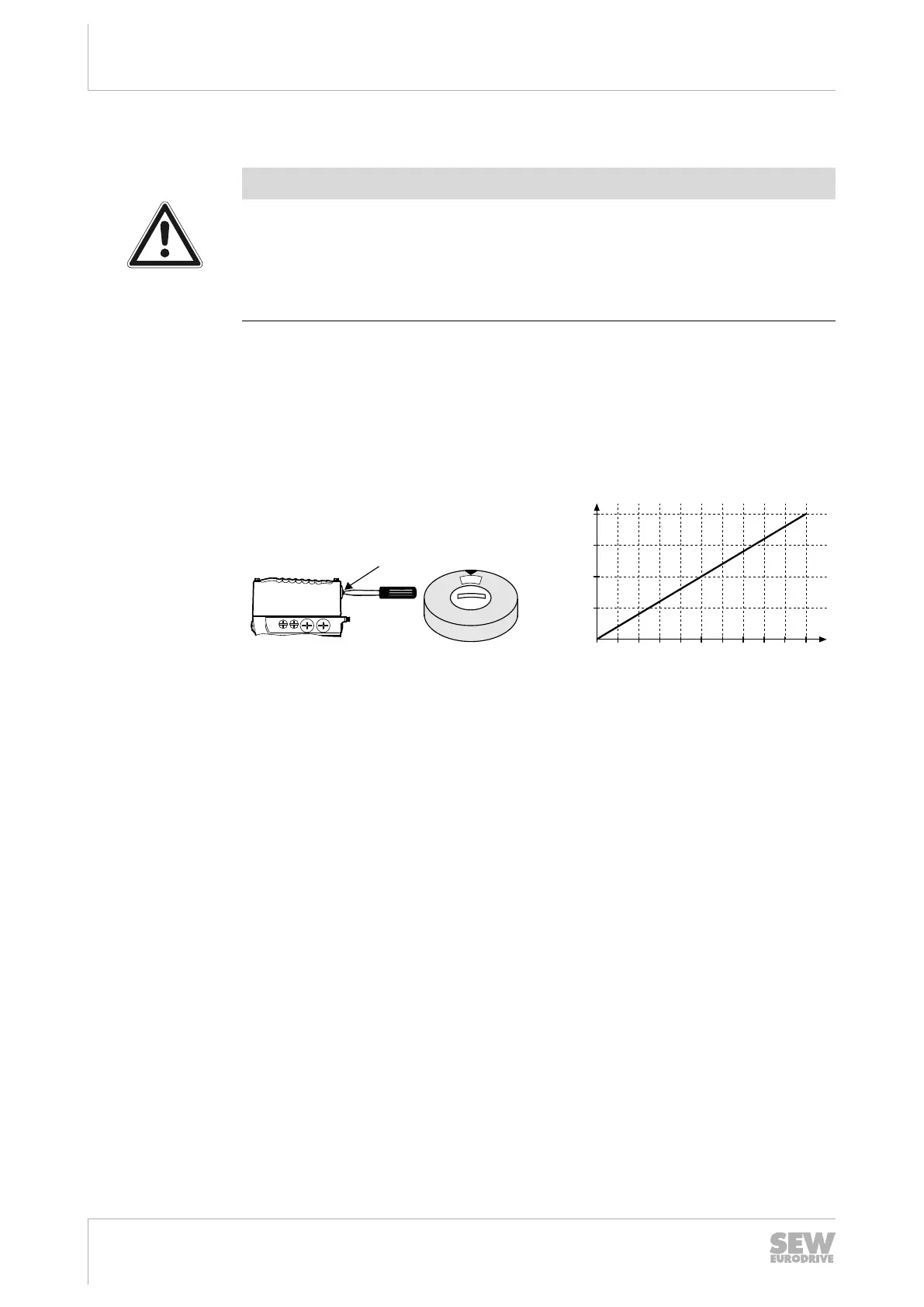

The following figure shows how to scale the speed setpoint f2 using potentiometer f2:
100
10 2 3 4 5 6 7 8 9 10
75
25
50
6
5
f2
Potentiometer setting
Speed setpoint f2
Application limit
%
1)
9007228536783243
1) Depending on the selected direction of rotation, the parameter Application limit
positive or the parameter Application limit negative are used to scale the speed
setpoint f2.
For the application limit, refer to the MOVISUITE
®
parameter tree in the following
menu: Functions > Monitoring functions > Limit values > Application limit.
29129451/EN – 12/2019
